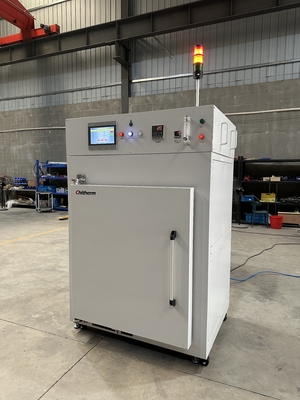

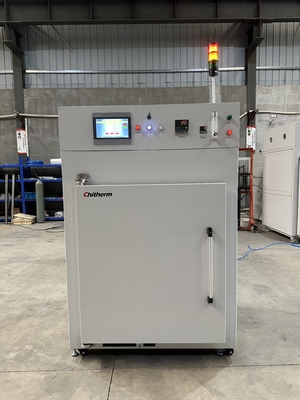

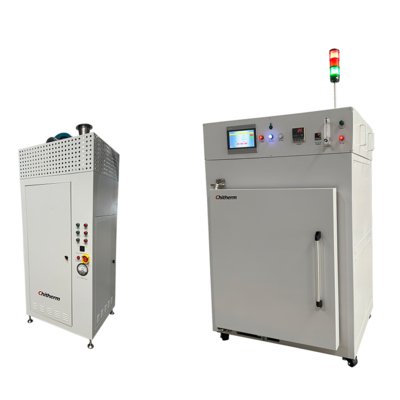

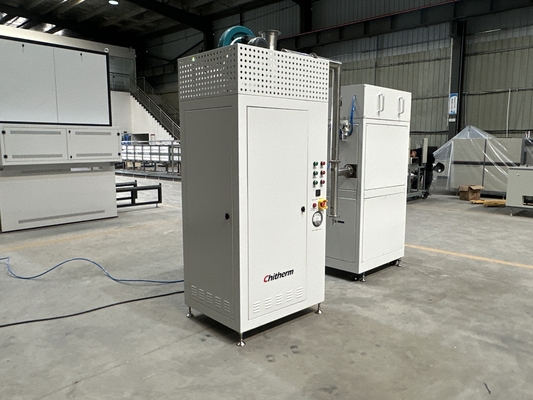

Hot Air Drying Oven HRF535-02 Type Nitrogen Atmosphere Semiconductor

The HRF535-02 industrial muffle furnace is engineered for semiconductor and electronic component processing, featuring stainless steel heating tubes and centrifugal fan ventilation. Its double-layer stainless steel cabinet with full-fiber insulation ensures precise temperature control via an imported intelligent temperature controller.

• Rated Temp: RT+10 ~200°C
• Max Temp: 300°C
• Temperature Control Stability: ±1°C with PID self-tuning
• Temperature Uniformity: ±3°C (at 200°C)
• Heating Method: Customized Heater
• Process Atmosphere: Nitrogen
• Max Heating Power: 10kW
• Surface Temperature Rise: ≤ 35°C
• Weight: ~700kg

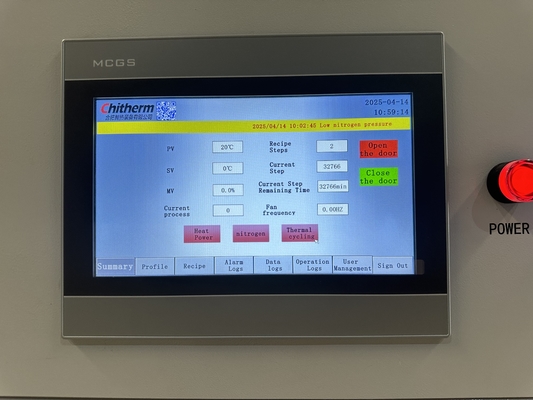

Features a Japanese SHIDO intelligent program temperature controller with 4 × 16 heating curve segments. The system includes a touchscreen interface, Siemens PLC, and provides real-time data acquisition with industrial-grade stability for continuous operation.

• Environment: 0-40°C, ≤80% RH, no corrosive gas

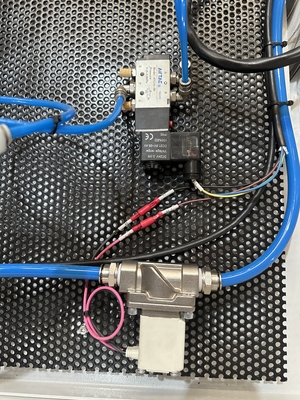

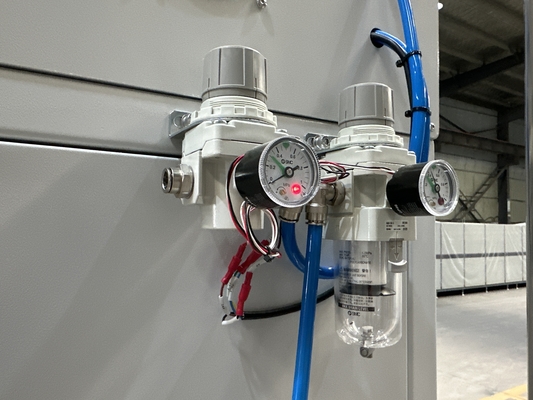

• Process Air: 99.999% nitrogen, 0.2-0.4Mpa
• Power: ≥14kVA, 3 phase 5 wire, 220/380V 50Hz
• Space: 2500×2100×3000mm (W×H×D)
