Squirrel-Cage Heaters for Drying in Hot Air Drying Oven with Accurate Temperature Control

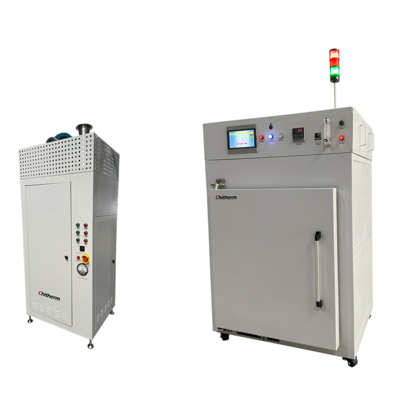

Hình ảnh lớn : Squirrel-Cage Heaters for Drying in Hot Air Drying Oven with Accurate Temperature Control

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	Chitherm
Model Number:	HRF535-02 Type

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	negotiable
Delivery Time:	90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Tiếp xúc

Squirrel-Cage Heaters for Drying in Hot Air Drying Oven with Accurate Temperature Control

Sự miêu tả

Model NO.:	HRF535-02 Type	Range of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Drying
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	850700900mm(WHD)	Rated Temperature:	Rt+10~200ºC
Heating Elements:	Custom-Made Squirrel-Cage Heaters	Control Points:	1 Point
Transport Package:	Wooden Packaging	Specification:	125018701076mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Package Size:	1600.00cm * 1550.00cm * 2250.00cm	Package Gross Weight:	709.000kg
Customization:	Available	Chứng nhận:	ISO
Place Style:	Vertical	Shipping Cost:	Contact the supplier about freight and estimated delivery time.
:	Support payments in USD	Secure payments:	Every payment you make on Made-in-China.com is protected by the platform.
Refund policy:	Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Làm nổi bật:	squirrel-cage heaters for drying ovens , hot air drying oven with temperature control , accurate temperature control drying oven heaters

Industrial Squirrel-Cage Heaters for Hot Air Drying Oven

Product Overview

The HRF535-02 industrial muffle furnace is engineered for semiconductor and electronic component processing, featuring stainless steel heating tubes and centrifugal fan ventilation. Its double-layer stainless steel cabinet with full-fiber insulation ensures precise temperature control via an imported intelligent temperature controller.

Key Specifications

Attribute	Value
Model NO.	HRF535-02 Type
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Drying
Fuel	Electric
Atmosphere	Nitrogen
Effective Chamber Dimensions	850700900mm (WHD)
Rated Temperature	Rt+10~200°C
Heating Elements	Custom-Made Squirrel-Cage Heaters
Control Points	1 Point
Certification	ISO

Technical Parameters

Rated Temp: RT+10 ~200°C
Max Temp: 300°C
Temperature Control Stability: ±1°C with PID self-tuning
Temperature Uniformity: ±3°C (at 200°C)
Heating Method: Customized Heater
Process Atmosphere: Nitrogen
Max Heating Power: 10kW
Surface Temperature Rise: ≤ 35°C
Weight: ~700kg

Control System

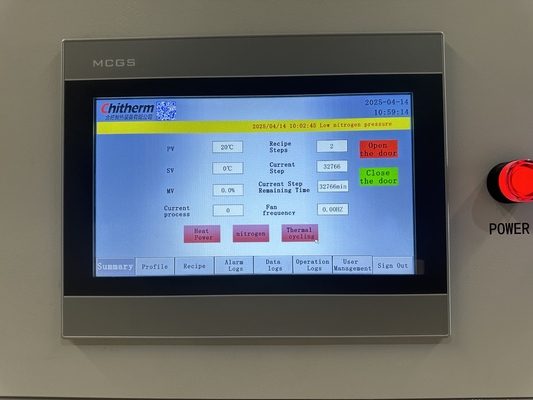

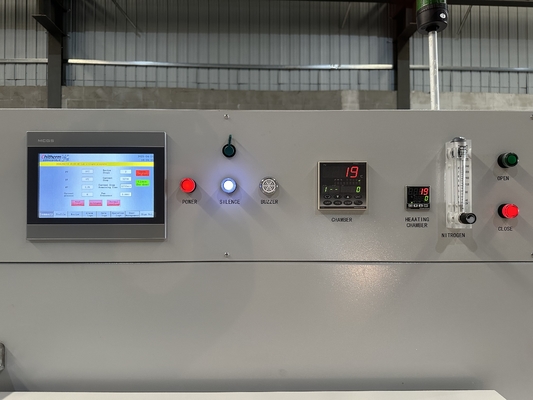

Features a Japanese SHIDO intelligent program temperature controller with 4 × 16 heating curve segments. The system includes a touchscreen interface, Siemens PLC, and provides real-time data acquisition with industrial-grade stability for continuous operation.

Delivery Contents

Item	Note	QTY
Dryer		1 PC
Certificates	Dryer and major components	1 Set
Heating Elements	Customized Heater	1 Set
Temperature Controller		1 Set

Installation Requirements

Environment: 0-40°C, ≤80% RH, no corrosive gas

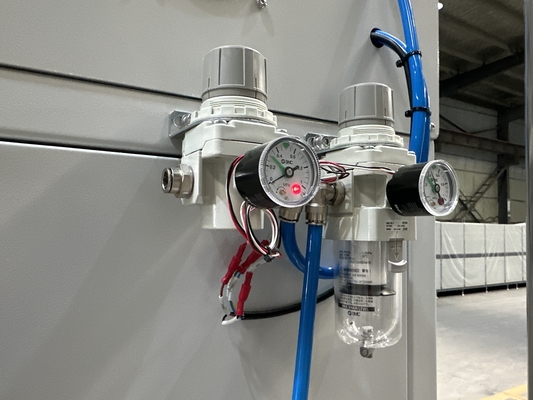

Process Air: 99.999% nitrogen, 0.2-0.4Mpa
Power: ≥14kVA, 3 phase 5 wire, 220/380V 50Hz
Space: 2500×2100×3000mm (W×H×D)

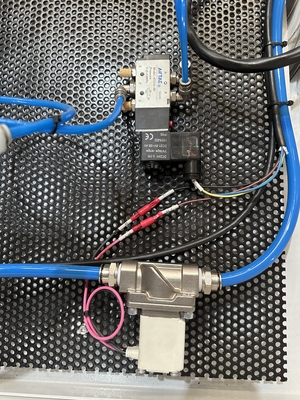

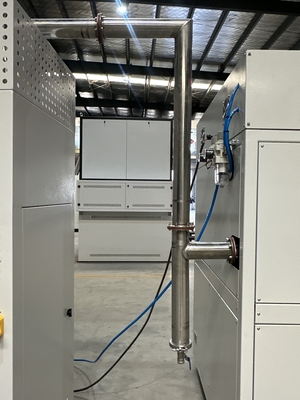

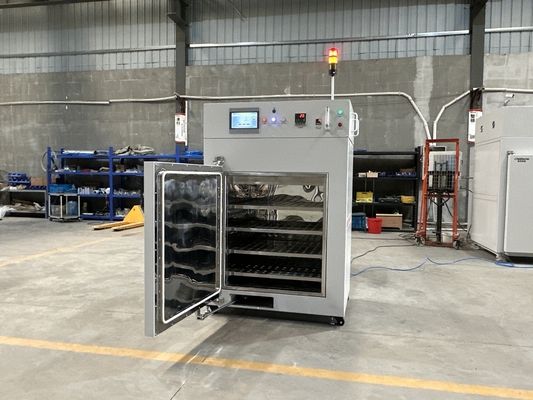

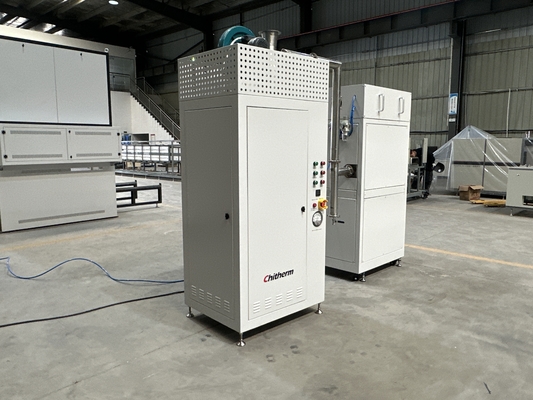

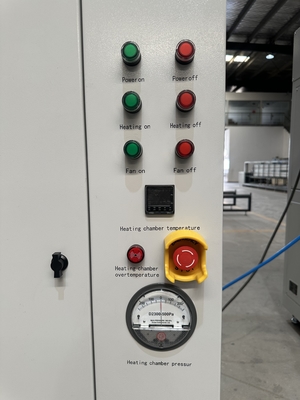

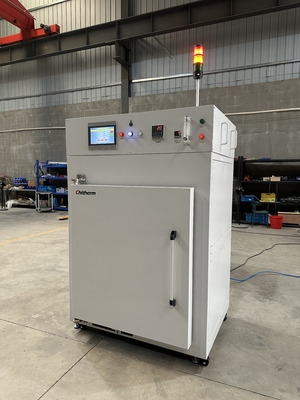

Product Images

Certifications & Packaging

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in industrial furnaces for advanced ceramics, electronic components, and new energy applications. Our product range includes bell furnaces, hot air furnaces, vacuum furnaces, and specialized solutions for material processing.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized industrial heating solutions.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine R&D, manufacturing, and sales with patented technologies to deliver superior thermal processing solutions.
