Bf1500-15o High-Temperature Bell Furnace Maximum Temperature: 1500 º C

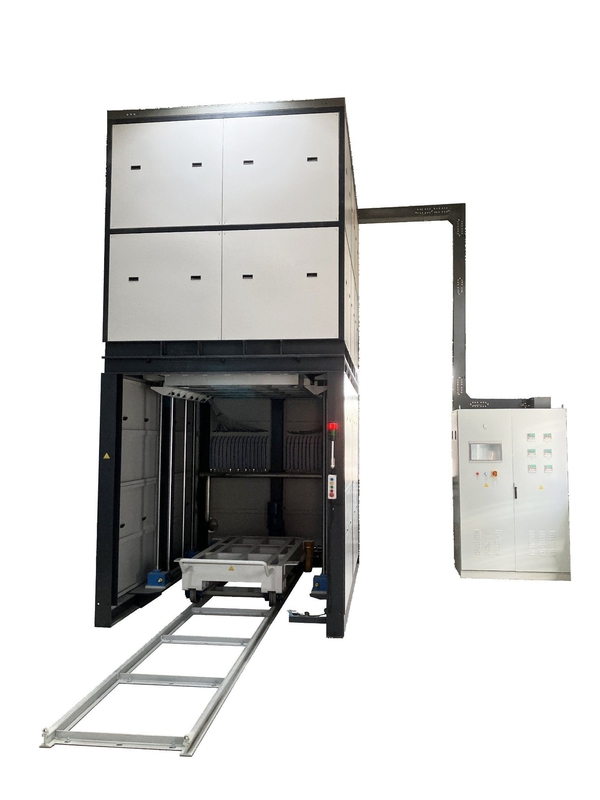

Large Image : Bf1500-15o High-Temperature Bell Furnace Maximum Temperature: 1500 º C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF1500-15O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Bf1500-15o High-Temperature Bell Furnace Maximum Temperature: 1500 º C

Description

Range Of Applications:	Industrial	Usage:	Ceramic Sintering
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	High-temperature bell furnace 1500°C , Elevator furnace with high heat resistance , Industrial bell furnace for extreme temperatures

BF1500-15O High-Temperature Bell Furnace

Maximum Temperature: 1500°C

Product Specifications

Attribute	Value
Range of Applications	Industrial
Usage	Ceramic Sintering
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Equipment Description

Operating Conditions:
Environmental: Temperature 0-40°C, humidity ≤80% RH, non-corrosive gases, minimal airflow disturbance.
Atmosphere: Dry oil-free compressed air at 0.4-0.8 MPa pressure, consumption 30-90 m³/h.
Ventilation: Non-contact interface with user exhaust system (>100 m³/h capacity).
Floor: Level surface, vibration-free, load-bearing >600 kg/m².
Power: >240 kVA capacity, 3-phase 5-wire (220/380V, 50Hz).

Application:
Designed for electronic ceramic materials, magnetic materials, ceramic filters, and other applications requiring high temperature field uniformity or multi-species small batch production.

Technical Specifications

Rated Temperature	1400°C
Maximum Temperature	1500°C
Effective Dimensions	1600mm × 1250mm × 800mm (D×W×H)
Heating Method	U-shaped silicon molybdenum heater
Thermocouple	Type S
Temperature Control	6 Points
Temperature Set Accuracy	±1°C (flat temp. insulation)
Temperature Control Mode	Control module imported from Japan with PID
Heat-up Rate	≤2.5°C/min
Temperature Uniformity	±5°C (empty furnace insulation test 2 hours under 1400°C)
Program Tracking Accuracy	±2°C (>600°C)
Maximum Lifting Trip	800mm
Lift System	Three-point control, can be stopped at any time, stable and reliable operation
Atmosphere Control	Four channels of air inlet, each controlled by glass rotor flowmeter (12-120L/min)
Exhaust System	2 exhaust chimneys with auto switch function
Alarm System	Over-temperature, broken couple, overload, over-range, deviation sound and light alarm protection
External Dimensions	3280 × 4600 × 2240mm (D×W×H) (without control cabinet)

Delivery List

Item	Note	Quantity
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of major outsourced parts	1 SET
Control Cabinet	1000×2000×600mm (W×H×D)	1 SET
Key Components	Heating Plate (U-shaped silicon molybdenum heater)	1 SET
Flow Meter	TOFCO	1 SET
Thermocouple	THERMOWAY	1 SET
Lifting System		1 SET
Temperature Control Module	Azbil	1 SET
PLC	SIEMENS	1 SET
Touch Screen	MCGS	1 SET
Spare Parts	Heating Element (U-shaped silicon molybdenum heater)	1 PC
