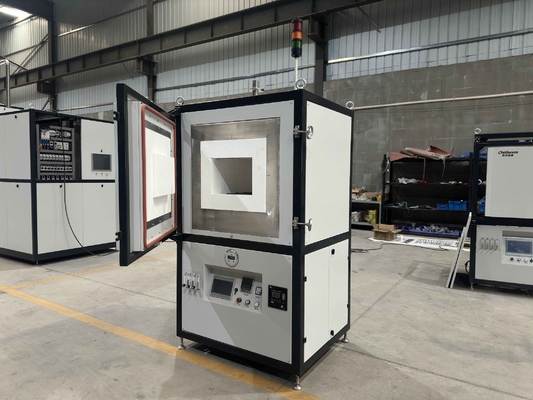

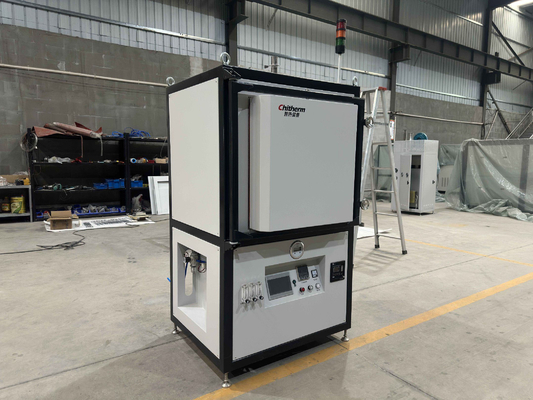

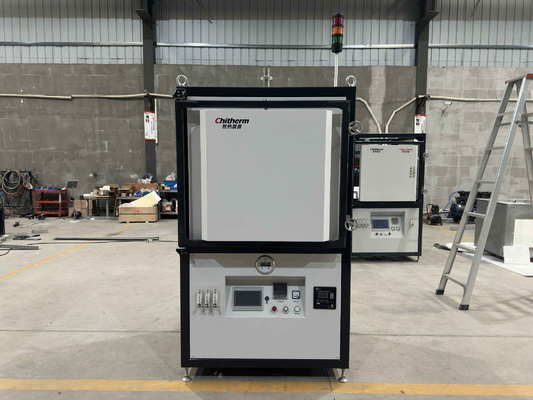

Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C

Large Image : Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF20-11N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Nitrogen/Air	Effective Chamber Dimensions:	330200330mm(WHD)
Transport Package:	Wooden Packaging	Specification:	130019001160mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	ceramic filter Atmosphere Box Furnace , 1000C Atmosphere Box Furnace , 1000C nitrogen furnace

Ceramic Sintering Chitherm Mbf20-11n Controlled Atmosphere Box Furnace 50 Sets/Year Capacity and Performance

1. Applications:

Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:

Rated Temp.: 1000ºC
Max Temp.: 1100ºC
Effective Dimensions: 330 × 200 × 330mm(W×H×D)
Heating Method: SiC Rods
Process Atmosphere: Nitrogen
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1000ºC test)
Thermocouple: Type N
Temperature control points: 3 points
Temperature measurement points: 1 point
Process Steps: 4×16 steps
Oxygen Content: ≤ 20ppm+gas supply oxygen content
Exhaust: One exhaust port with manual adjustment
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
Max Heating Power: 12kW
Insulation Power: ≤ 5kW
Surface Temperature Rise: ≤ 35ºC
Weight: about 650kg
Furnace Dimensions: about 1300*1900*1160mm (W×H×D);
Appearance Color: light gray

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	SiC Rods	1 Set
	Thermocouple	WATLOW/THERMOWAY, Type N	1 PC
	Temperature Controller	Azbil	1 Set
	Monitor	Proface touch screen	1 Set
Spares	SSR		1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 2 - 5m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 20m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 250Kg/m².
4.5 Power conditions: capacity greater than 16kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m².
