Ceramic Sintering Elevator Furnace LTCC Bell Hydrogen Atmosphere Annealing Furnace

Large Image : Ceramic Sintering Elevator Furnace LTCC Bell Hydrogen Atmosphere Annealing Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF230-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Ceramic Sintering Elevator Furnace LTCC Bell Hydrogen Atmosphere Annealing Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Chamber Dimensions:	600600650mm
Applications:	Ltcc Substrates Bbo And Sintering Process	Transport Package:	Wooden Package
Specification:	152015202250mm	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	LTCC atmosphere Elevator Furnace , atmosphere annealing Elevator Furnace , LTCC hydrogen atmosphere annealing furnace

Ceramic Sintering Chitherm Bf230-10 Ltcc Bell Furnace Electric Holding Furnace for Ceramics

1. Application

This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.

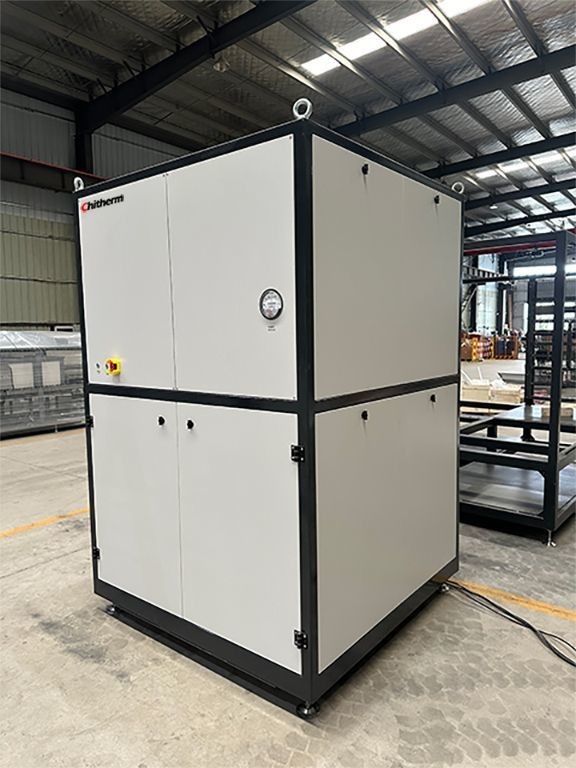

Chitherm Bf230-10 Ltcc Bell Furnace

2.Technical Specification:

Rated Temperature: 850ºC
Max. Temperature:1000ºC
Chamber Dimensions: 600mm×600mm×650mm(D×W×H)
Effective Dimensions: 500mm×500mm×500mm(D×W×H)
Chamber Insulation Material: Aluminosilicate Ceramic Fiber
Heating Elements: Resistance Coils in Ceramic Fiber Block
Thermcouple: Type K
Temperature Control Point: 4 Points
Pre-Heating: 4 Inlets
3 Stages Pre-Filtering of air: 1- dust, 2 - water drops, 3 - oil vapor
Temperature Control Precision≤ ±1ºC
Temperature Control Mode: Temperature controller imported from Japan
Heating-up Steps: Default 20 Steps
Temperature Record: IPC makes a real-time sampling record of the chamber temperature and the gas heating temperature
Heat-up Rate ≤6ºC/min
Chamber Temperature Uniformity:400mm×400mm×400mm (D×W×H) area is better than ± 3ºC
Furnace Surface Temperature ≤ RT+35ºC
Lift System: the equipment lifting operation system adopts three-point control, automated hearth extension,which can be stopped at any time, with stable and reliable operation
Maximum Lifting Trip: 800mm
Loading Weight ≤ 150Kg ( including products and setters )
Total Power: 52kW ( Max Heating Power:40kW, Max Gas Preheating Power:4×3kW )
Outline Dimensions: 1520×1520×2250mm(D×W×H)
Weight: about 1000kg

3.Shipping List

	Item	Description	Qty
Basic Components	Furnace		1SET
	inspection certificate	Certificate of major outsourced components	1SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1SET
Key Components	Heating Elements	Resistance Coils Heating Plate	1SET
	Flowmeter	Azbil/Dwyer/TOFCO/YINHUAN	1SET
	Differential Pressure	Dwyer/TOFCO/DUWEI	1SET
	Thermocouple	Watlow/THERMOWAY	1SET
	Lifting System	Customized	1SET
	Temp. Controller	Azbil	1SET
	PLC	SIEMENS	1SET
	Touch Screen	MCGS ( based on Linux)	1SET
Spare Parts	Solid State Relay	XIMADEN	1PC
Spare Parts	Heating Elements	Resistance Coils Heating Plate	1 PC

4. Facility Requirements

Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 25-70 m³/h
Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing>500 kg/m²;
Power: capacity> 70KVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site:3500mm×3000mm×3000mm(D×W×H), with an installation area greater than 11m².
