Laboratory Industrial Bell Jar Heat Treat Furnace For Electronic Ceramic Components

Large Image : Laboratory Industrial Bell Jar Heat Treat Furnace For Electronic Ceramic Components

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF580-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Laboratory Industrial Bell Jar Heat Treat Furnace For Electronic Ceramic Components

Description

Model NO.:	BF580-17	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air And O2
Effective Chamber Dimensions:	1200600800mm(DWH)	Warranty:	1 Year
Transport Package:	Wooden Packaging	Specification:	288036002240mm(DHW)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	Laboratory heat treat furnace , electronic components heat treat furnace , Bell laboratory industrial furnaces

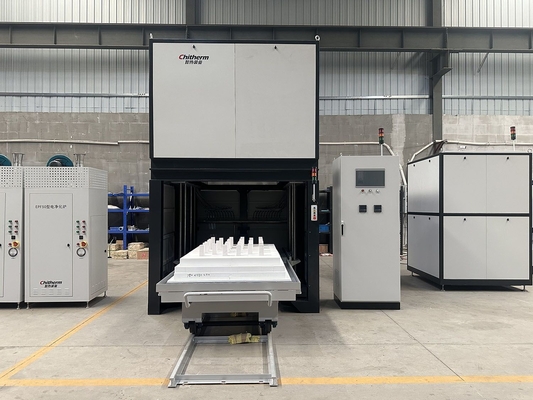

2880*3600*2240mm D*H*W Temperature Bell Jar Furnace Bf580-17 with Effective Chamber Dimensions 1200*600*800mm D*W*H

1. Application:

The equipment is widely used in high-temperature sintering processes for advanced ceramics, magnetic materials, electronic ceramic components, and other products. Chitherm Bf580-17 High-Temperature Bell Jar Furnace

2. Technical Specification:

Rated Temp.:1700ºC
Max Temp.:1750ºC

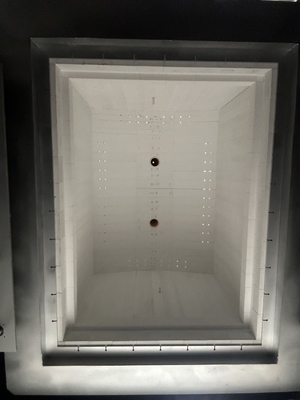

Effective Dimensions:1200mm×600mm×800mm(D×W×H)
Heating Method: U-shaped silicon molybdenum heater
Thermcouple: Type B
Temperature Control: 2 Points
Temp. Set Accuracy: ±1ºC(flat temp. insulation)

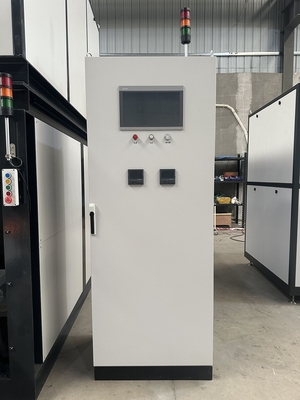

Temp. Control Mode:control module imported from Japan with PID
Heat-up Rate : ≤3ºC/min
Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1700ºC)
Program Tracking Accuracy: ±2ºC (>600ºC)
Furnace Surface Temperature ≤ 40ºC
Maximum Lifting Trip:800mm
Lifting method: Screw driven lifting system

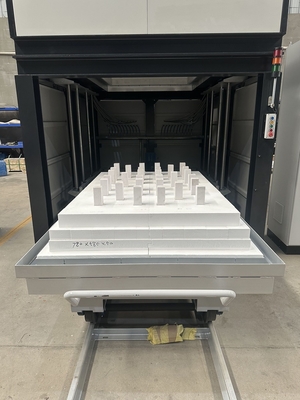

Loading Weight ≤ 3000kg (with firing furniture and products)
Atmosphere Control : two channels of air inlet, each channel of air flow is controlled by the glass rotor flowmeter, single range of 5 ~ 50L / min
Exhaust System : Two exhaust chimneys are installed at the top for exhaust emissions, and the chimney covers can be automatically opened and closed
Alarm System : with over-temperature, broken couple, overload, over-range, deviation and other sound and light alarm protection function
Maximum Heating Power:120kW
Empty furnace insulation power:≤ 60kW

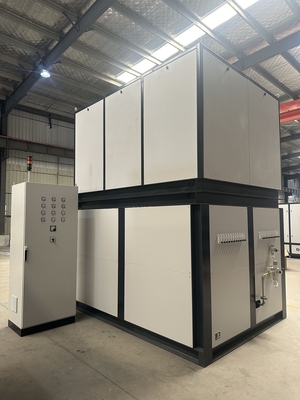

External Dimensions: 2880×3600×2240mm(D×W×H) (Excluding tracks and control cabinets)
Appearance Color: Light gray

2. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Silicon molybdenum rod	U-shaped silicon molybdenum heater	1 SET
	Power regulator		1 SET
	Thermocouple		1 SET
	temperature controller	Island Electric, Dahua Qianye, Eurofins and other similar brands	1 SET
	PLC	SIEMENS	1 SET
	Touch Screen	15 cun	1 SET
Spare Parts	Heating Element	U-shaped silicon molybdenum heater	1 PC

3. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4- 0.8MPa, gas consumption of 10 -30 m³/h;
Ventilation System: Non contact access user exhaust system, with an exhaust capacity greater than 50 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 1000 Kg/m²;
Power Condition(TBD): capacity > 160kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 6000mm×4000mm×4000mm(D×W×H), with an installation area greater than 24m².
