Bf150-17 High-Temperature Bell Furnace B-Grade Thermocouple

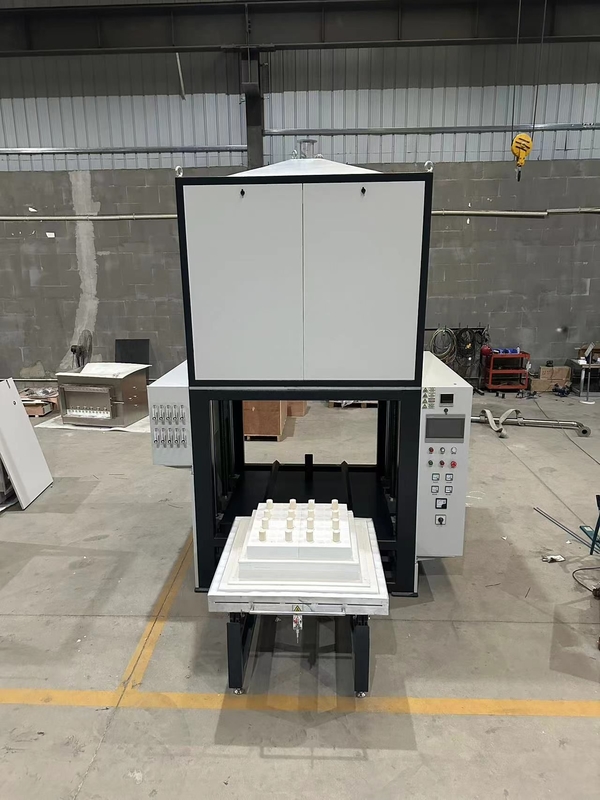

Large Image : Bf150-17 High-Temperature Bell Furnace B-Grade Thermocouple

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF150-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Bf150-17 High-Temperature Bell Furnace B-Grade Thermocouple

Description

Maximum Temperature:	1700°c	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Place Style:	Vertical	Model:	BF150-17
Highlight:	Bf150-17 high-temperature bell furnace , B-grade thermocouple for elevator furnace , high-temperature thermocouple with warranty

BF150-17 High-Temperature Bell Furnace B-Grade Thermocouple

Product Specifications

Attribute	Value
Maximum Temperature	1700°C
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Place Style	Vertical
Model	BF150-17

Product Overview

This precision furnace is engineered for processing electronic ceramics, magnetic materials, and ceramic filters requiring exceptional temperature uniformity and small-batch production capabilities.

Technical Parameters

Temperature Range	1650°C (rated) / 1700°C (max)
Working Dimensions	550×500×550mm (D×W×H)
Heating System	U-shaped silicon molybdenum heating elements
Temperature Control	Single-point monitoring with ±1°C accuracy
Heat-up Rate	≤5°C/min (400-1000°C) / ≤2°C/min (1000-1500°C)
Temperature Uniformity	±5°C (1500°C, 2hr test)
Power Requirements	70kVA, 3-phase 380V/50Hz
Exhaust System	Single top-mounted chimney
Thermal Efficiency	≤25kW insulation power

Performance Features

Precision Control: Japanese imported PID module ensures ±2°C tracking accuracy
Safety Systems: Comprehensive temperature monitoring and alarms
Energy Efficient: Optimized insulation design reduces power consumption
Compact Design: Space-saving footprint with high-temperature capability
Quality Assurance: ±5°C uniformity at 1500°C

Installation Requirements

Space: 3800×2650×3500mm (D×W×H) minimum
Floor Load: >600kg/m²
Environment: 0-40°C, ≤80% RH, vibration-free
Gas Supply: 0.2-0.4MPa clean compressed air (10-30m³/h)

Standard Configuration

High-efficiency heating system
Precision temperature control
Integrated exhaust management
Light gray powder-coated exterior

Operating Conditions

Atmosphere: Dry, oil-free compressed air
Ventilation: >35m³/h exhaust capacity
