Light Gray Alarm System High Temperature Box Furnace Electronic Components High Temperature Box Furnace

Large Image : Light Gray Alarm System High Temperature Box Furnace Electronic Components High Temperature Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Specification 177021501250mm(WHD)Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now Chat Now

Light Gray Alarm System High Temperature Box Furnace Electronic Components High Temperature Box Furnace

Description

Highlight:

light gray high temperature box furnace

alarm system box furnace

electronic components box furnace

HBF52-17NO High-Temperature Box Furnace

Product Overview

Precision high-temperature furnace designed for sintering applications in advanced materials processing, featuring:

Dual atmosphere capability (air/oxygen)
Optimized for ITO targets and electronic ceramics
Compact footprint with high thermal efficiency

Technical Specifications

Parameter	Specification
Temperature Range	1650°C (rated) / 1700°C (peak)
Chamber Dimensions	350×300×500mm (W×H×D)
Heating System	U-shaped silicon molybdenum rods
Temperature Control	±1°C stability / ±5°C uniformity
Atmosphere Control	Automatic chimney with cover
Power Consumption	25kW (max) / ≤10kW (holding)
Safety Systems	Dual alarm protection with auto-shutdown

Key Features

Precision Heating: Programmable 4×16 segment control
Robust Construction: MoSi₂ heating elements with Type B thermocouple
Efficient Operation: ≤40°C surface temperature rise
Flexible Atmosphere: Supports both oxidizing and inert environments

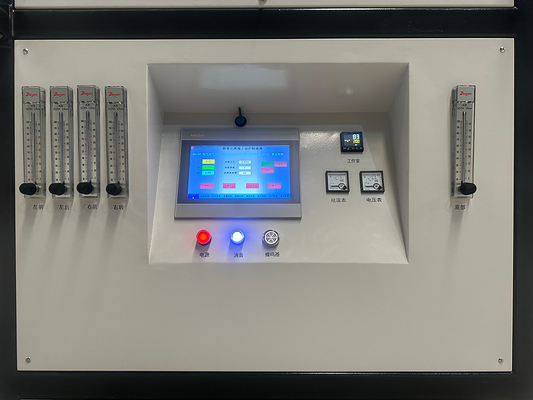

User Interface: 10" Proface touchscreen control

System Configuration

Component	Specification	Qty
Main Unit	1620×1960×1220mm	1
Heating Elements	MoSi₂ rods	1 set + spare
Control System	CHINO controller	1
Monitoring	Type B thermocouple	1
Safety Spares	MoSi₂ heating rod	1

Installation Requirements

Power Supply: ≥34kVA, 3-phase 380V
Gas Systems:
- Compressed air (0.2-0.4MPa)
- High-purity oxygen (same parameters)
Space Requirements: 3m² minimum area

Operational Guidelines

Thermal Management:
- ≤5°C/min below 1200°C
- ≤2°C/min above 1200°C
Maintenance Protocol: Regular inspection of critical components
Atmosphere Switching: Requires pipeline purging

Manufacturer Profile

Hefei Chitherm Equipment specializes in thermal processing solutions for:

Electronic ceramics and ITO targets
Magnetic materials and filters
Energy storage materials
Various sintering processes

Quality Assurance

Complete inspection documentation
Premium component selection
Rigorous performance testing
