HBF52-17 type high-temperature box furnace

Name: HBF52-17 type high-temperature box furnace
Brand: Hefei Chitherm Equipment Co., Ltd
SKU: HBF52-17
Price: 10500 USD
Availability: InStock

All Products

High Temperature Box Furnace
(48)

Elevator Furnace
(30)

Hot Air Drying Oven
(19)

Atmosphere Box Furnace
(17)

Vacuum Muffle Furnace
(43)

Tube Furnace
(6)

Rotary Furnace
(4)

Waste Gas Incinerator
(4)

Continuous Annealing Furnace
(3)

Electric Muffle Furnace
(2)

Debinding Furnace
(1)

Conveyor Belt Furnace
(8)

Furnace Parts
(5)

Customer Reviews

Dear Valued Partner, Thank you for your support and trust over the past year. It is through your cooperation that we have been able to successfully achieve our goals. In the days to come, we look forward to continuing our close collaboration and creating even greater value together. — With best regards, [Chinese Academy of Sciences]

—— Chinese Academy of Sciences

I'm Online Chat Now

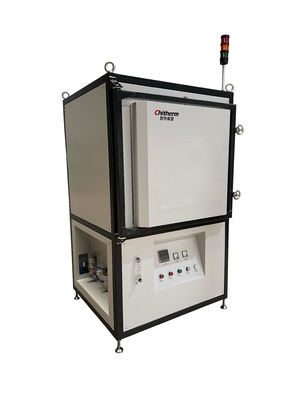

HBF52-17 type high-temperature box furnace

Large Image : HBF52-17 type high-temperature box furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now

HBF52-17 type high-temperature box furnace

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1

HBF52-17 Type High-Temperature Box Furnace

Key Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350×300×500mm (W×H×D)
Thermocouple	B Type
Max Temp	1700ºC
Rated Temp	1650ºC
Insulation Power	≤25kW
Temperature Control Points	1

Applications

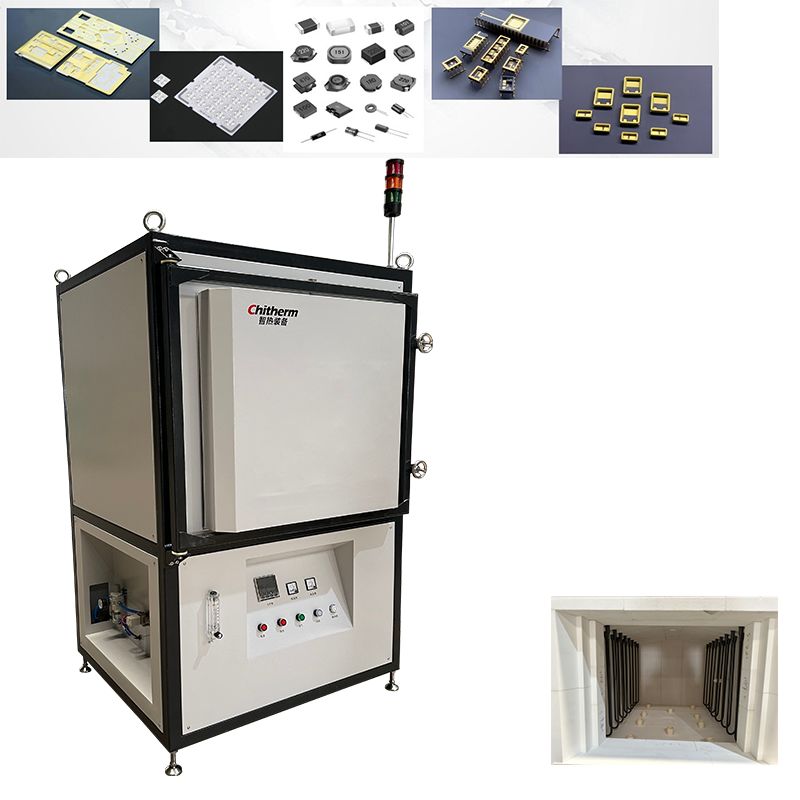

This high-temperature box furnace is designed for high-cleanliness epoxy curing and sintering processes in manufacturing electronic ceramics, ceramic filters, magnetic materials, and electronic devices.

Technical Specifications

Rated Temperature: 1650ºC
Maximum Temperature: 1700ºC
Furnace Chamber Dimensions: 480×390×540mm (W×H×D)
Effective Loading Dimensions: 350×300×500mm (W×H×D)

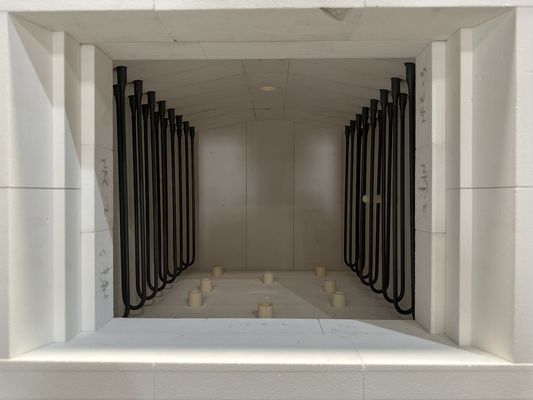

Heating Element: U-shaped molybdenum disilicide rod
High-purity alumina foam ceramic inner chamber for cleanliness

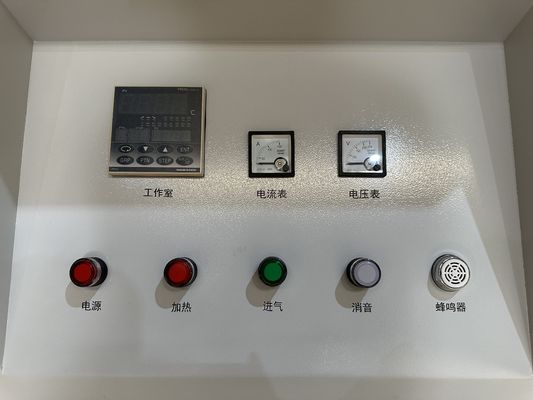

Temperature Control Stability: ±1ºC with PID self-tuning
Temperature Uniformity: ±2.5ºC (tested at 1650ºC)
4×16 segment temperature control program
Comprehensive alarm protection system
Maximum Heating Power: 25kW
Equipment Weight: Approximately 950kg

Product Images

Standard Delivery Contents

Item	Description	Quantity
Furnace	Main unit	1 PC
Certificates	Inspection documents	1 Set
Technical Documents	Specifications and manuals	1 Set
Silicon-Molybdenum Rods	6-12 U-shaped heating elements	1 Set
Thermocouple	THERMOWAY B Type	1 PC
Temperature Control	Shimaden controller	1 Set
Underglaze Board	Corundum-mullite	1 Set

Installation Requirements

Environment: 0-40ºC, ≤80% RH, no corrosive gas

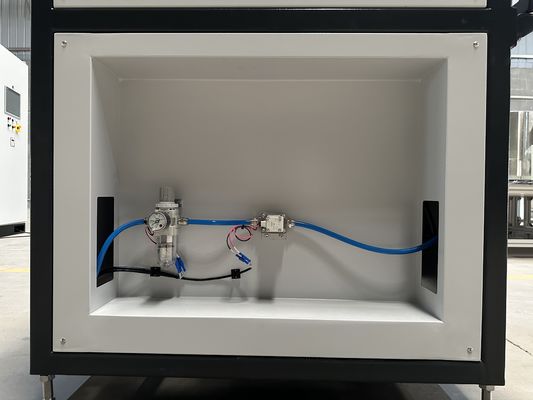

Clean, dry compressed air: 0.2-0.4Mpa, 2-6m³/h
Ventilation system with >10m³/h capacity
Level floor with >300kg/m² load capacity
Power: >34kVA, 3-phase 5-wire, 220/380V 50Hz
Installation space: 2000×3000×1500mm (W×H×D)

Certifications

Packaging & Shipping

About Hefei Chitherm Equipment Co., Ltd.

We specialize in R&D, manufacturing, and sales of high-, medium-, and low-temperature industrial and laboratory furnaces, including bell furnaces, box furnaces, vacuum furnaces, and tube furnaces. Our products serve advanced ceramics, electronic components, powder metallurgy, new energy, and photovoltaic industries.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various industrial applications.

What pre-sales services does Chitherm provide?

We offer expert consultation and customized solutions to help select the optimal furnace for your specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we combine R&D, manufacturing, and service expertise to deliver superior thermal solutions.
