The Hbf52-17o High-Temperature Box Furnace Is Widely Used in The High-Temperature Sintering Process of Electronic Devices.

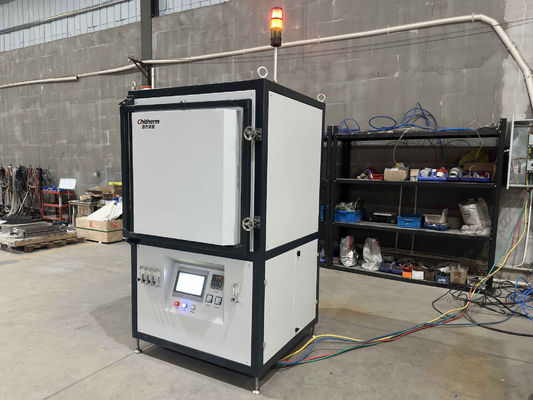

Large Image : The Hbf52-17o High-Temperature Box Furnace Is Widely Used in The High-Temperature Sintering Process of Electronic Devices.

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now

The Hbf52-17o High-Temperature Box Furnace Is Widely Used in The High-Temperature Sintering Process of Electronic Devices.

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1

HBF52-17O High-Temperature Box Furnace

This industrial furnace is specifically designed for high-temperature sintering processes in electronic device manufacturing, offering precise temperature control and reliable performance.

Key Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350×300×500mm (W×H×D)
Thermocouple	B Type
Max Temperature	1700ºC
Rated Temperature	1650ºC
Insulation Power	≤25kW
Temperature Control Points	1

Technical Features

Heating element: U-shaped molybdenum disilicide rod
High-purity alumina foam ceramic chamber for cleanliness
Temperature control stability: ±1ºC with PID self-tuning
Temperature uniformity: ±2.5ºC at 1650ºC
4×16 segment temperature control program
Comprehensive alarm protection system
Surface temperature rise ≤40ºC
Equipment weight: ~950kg

Product Images

Standard Delivery Contents

Item	Description	Quantity
Furnace	Main unit	1 PC
Certificates	Inspection documents	1 Set
Technical Documents	Specifications and manuals	1 Set
Silicon-molybdenum rods	U-shaped heating elements	6-12 rods
Thermocouple	THERMOWAY B Type	1 PC
Temperature controller	Shimaden system	1 Set

Installation Requirements

Environment: 0-40ºC, ≤80% RH, no corrosive gases
Compressed air: 0.2-0.4Mpa, 2-6m³/h
Ventilation: >10m³/h capacity
Floor: Level, >300kg/m² load capacity
Power: ≥34kVA, 3-phase 380V, 50Hz
Space: 2000×3000×1500mm minimum

Certifications

Packaging & Shipping

About Hefei Chitherm Equipment Co., Ltd.

We specialize in the R&D, manufacturing, and sales of high-quality industrial furnaces for applications in advanced ceramics, electronic components, powder metallurgy, and new energy sectors. Our product range includes:

Bell furnaces and box furnaces
Hot air and vacuum furnaces
Tube furnaces and mesh belt furnaces
Bogie hearth and rotary furnaces

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various thermal processing applications.

What pre-sales services does Chitherm provide?

Our team offers expert consultation and customized solutions to help select the optimal furnace configuration for your specific process requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine patented technologies with extensive manufacturing experience to deliver reliable, high-performance furnace solutions with excellent after-sales support.
