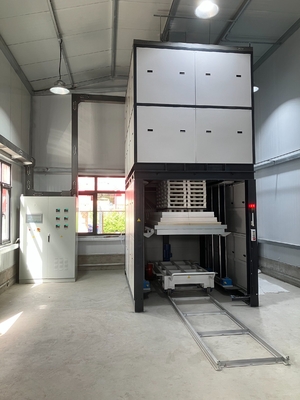

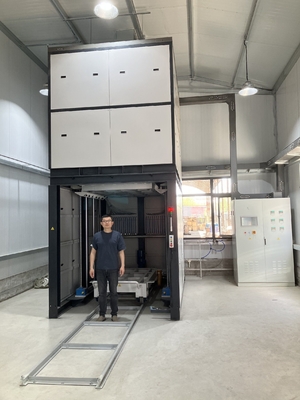

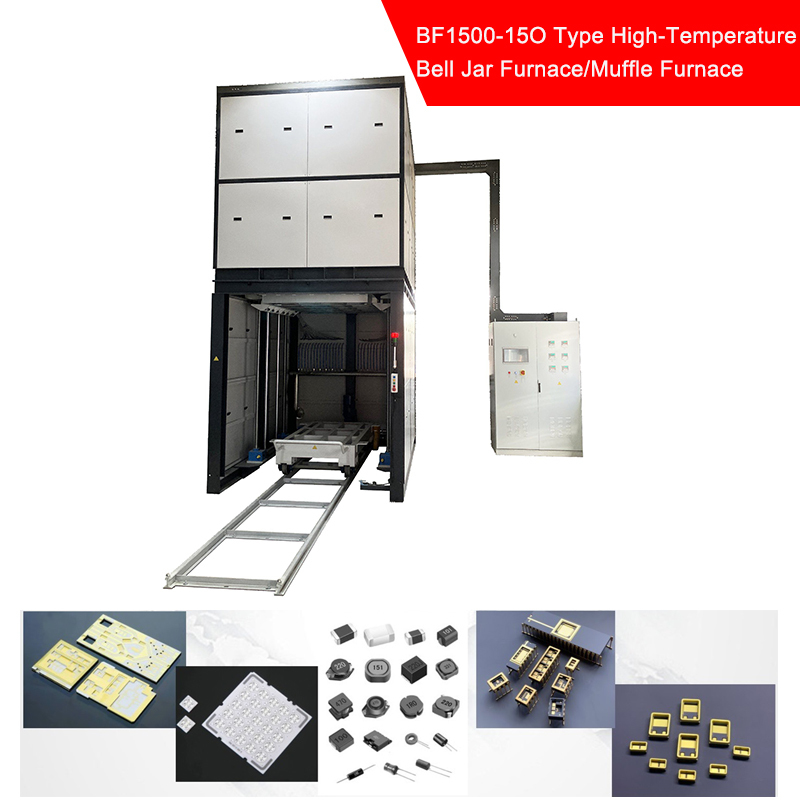

BF1500-15O High-Temperature Bell Jar Furnace/Muffle Furnace
Product Specifications
| Attribute | Value |
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Air |
| Effective Chamber Dimensions | 1600*1250*800mm(D*W*H) |
| Warranty | 1 Year |
| Transport Package | Wooden Packaging |
| Specification | 3280*4600*2240mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Production Capacity | 50 Sets/Year |
Product Description
The BF1500-15O High-Temperature Bell Jar Furnace/Muffle Furnace is a high-performance industrial furnace designed for advanced heat treatment processes in laboratories, research institutions, and industrial applications. With a maximum operating temperature of 1500°C, this furnace is ideal for sintering, annealing, calcination, and other thermal processes requiring precise temperature control and uniform heating.
Applications
This equipment is primarily designed for electronic ceramic materials, magnetic materials, ceramic filters, and other applications requiring high temperature field uniformity or multi-species small batch production.
Technical Specifications
| Rated Temperature | 1400°C |
| Maximum Temperature | 1500°C |
| Effective Dimensions | 1600mm×1250mm×800mm(D×W×H) |

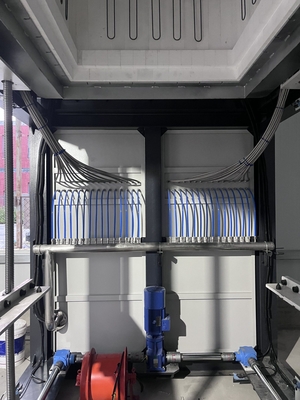

| Heating Method | U-shaped silicon molybdenum heater |
| Thermocouple | Type S |
| Temperature Control | 6 Points |
| Temperature Set Accuracy | ±1°C (flat temperature insulation) |
| Temperature Control Mode | Control module imported from Japan with PID |
| Heat-up Rate | ≤2.5°C/min |
| Temperature Uniformity | ±5°C (empty furnace insulation test 2 hours under 1400°C) |
| Program Tracking Accuracy | ±2°C (>600°C) |

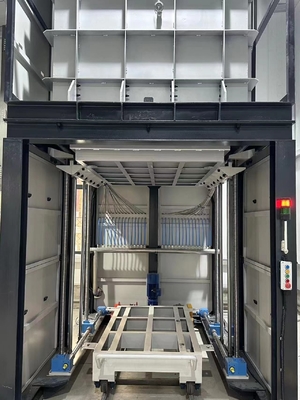

| Maximum Lifting Trip | 800mm |
| Lift System | Three-point control system with stable and reliable operation |
| Atmosphere Control | Four channels of air inlet with flow control |
| Exhaust System | 2 exhaust chimneys with auto switch function |
| Alarm System | Over-temperature, broken couple, overload, over-range, deviation alarms |
| External Dimensions | 3280×4600×2240mm(D×W×H) (without control cabinet) |
Delivery List
| Item | Note | Quantity |
| Basic Components | Furnace | 1 SET |
| Inspection Certificates | Certificates of major outsourced components | 1 SET |
| Technical Documents | Instructions, technical documents | 1 SET |
| Control Cabinet | 1000×2000×600mm(W×H×D) | 1 SET |
| Key Components | Heating Plate (U-shaped silicon molybdenum heater) | 1 SET |
| Flow Meter | TOFCO | 1 SET |
| Thermocouple | THERMOWAY | 1 SET |
| Lifting System | | 1 SET |
| Temperature Control Module | Azbil | 1 SET |
| PLC | SIEMENS | 1 SET |
| Touch Screen | MCGS | 1 SET |
| Spare Parts | Heating Element (U-shaped silicon molybdenum heater) | 1 PC |
Equipment Operating Conditions
- Environmental Conditions: Temperature 0~40°C, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
- Atmosphere Conditions: Dry, clean, oil-free compressed air, working pressure 0.4-0.8MPa, gas consumption 30-90 m³/h
- Ventilation System: Non-contact access to user pumping system with capacity >100 m³/h
- Ground Requirements: Horizontal, no vibration, load-bearing >600 Kg/m²
- Power Condition: Capacity >240kVA, 3-phase 5-line, voltage 220/380V, frequency 50Hz
- Installation Site: 4000mm×4000mm×5000mm(D×W×H), installation area >20m²
