Product Description

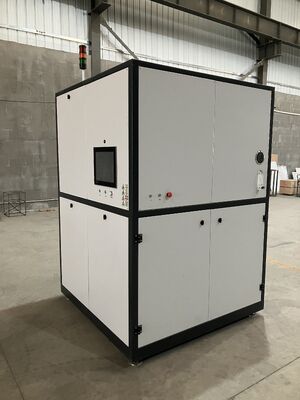

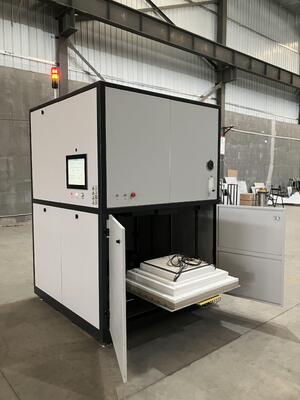

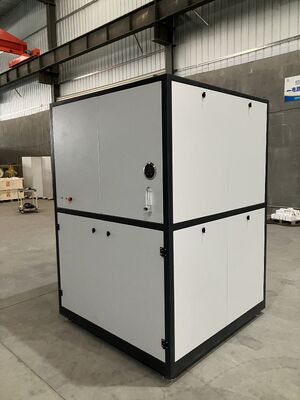

50 Sets/Year Chitherm BF216-11 LTCC Ceramic Sintering Bell Furnace for Air Atmosphere Manufacturing Facility
Application
This equipment is primarily designed for LTCC sintering, with additional capability for binder burning out and sintering processes of other relevant electrical products.
Technical Specifications
Rated Temperature: 850ºC
Max. Temperature: 1000ºC
Chamber Dimensions: 600×600×600mm (D×W×H)
Effective Dimensions: 400×400×400mm (D×W×H)
Chamber Insulation Material: Aluminosilicate Ceramic Fiber
Heating Elements: Resistance Coils in Ceramic Fiber Block
Thermocouple: Type K
Temperature Control Point: 4 Points
Pre-Heating: 4 Inlets
3 Stages Pre-Filtering of air: 1- dust, 2 - water drops, 3 - oil vapor
Temperature Control Precision: ≤ ±1ºC
Temperature Control Mode: Temperature controller imported from Japan
Heating-up Steps: Default 20 Steps
Temperature Record: IPC makes real-time sampling records
Heat-up Rate: ≤6ºC/min
Chamber Temperature Uniformity: ±3ºC in 400×400×400mm area
Furnace Surface Temperature: ≤ RT+35ºC
Lift System: Three-point control with automated hearth extension
Maximum Lifting Trip: 800mm
Loading Weight: ≤150Kg (including products and setters)
Total Power: 52kW (40kW heating, 4×3kW gas preheating)
Outline Dimensions: 1520×1520×2250mm (D×W×H)
Weight: about 1000kg
Shipping List
| Item |
Description |
Qty |
| Basic Components |
Furnace |
1SET |
| Inspection Certificate |
Certificate of major outsourced components |
1SET |
| Technical Documents |
Instructions, technical documents of the major outsourced parts, etc |
1SET |
| Key Components |
Heating Elements |
1SET |
| Flowmeter |
Azbil/Dwyer/TOFCO/YINHUAN |
1SET |
| Differential Pressure |
Dwyer/TOFCO/DUWEI |
1SET |
| Thermocouple |
Watlow/THERMOWAY |
1SET |
| Lifting System |
Customized |
1SET |
| Temp. Controller |
Azbil |
1SET |
| Touch Screen |
MCGS (based on Linux) |
1SET |
| Spare Parts |
Solid State Relay |
1PC |
| Heating Elements |
Resistance Coils Heating Plate |
1PC |
Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces. Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc. We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronis and advance materials all over the world.
Facility Requirements
Atmosphere Conditions: Dry, clean, oil-free compressed air (0.2-0.4MPa, 25-70 m³/h)
Environmental Conditions: 0~40ºC, ≤80%RH, no corrosive gas or strong airflow
Ventilation System: Non-contact access to user pumping system (>100 m³/h)
Ground Requirements: Horizontal, no vibration, load-bearing >500 kg/m²
Power: >70KVA, 3-phase 5-line (220/380V, 50Hz)
Installation Site: 3500×3000×3000mm (D×W×H), >11m² area
