HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace

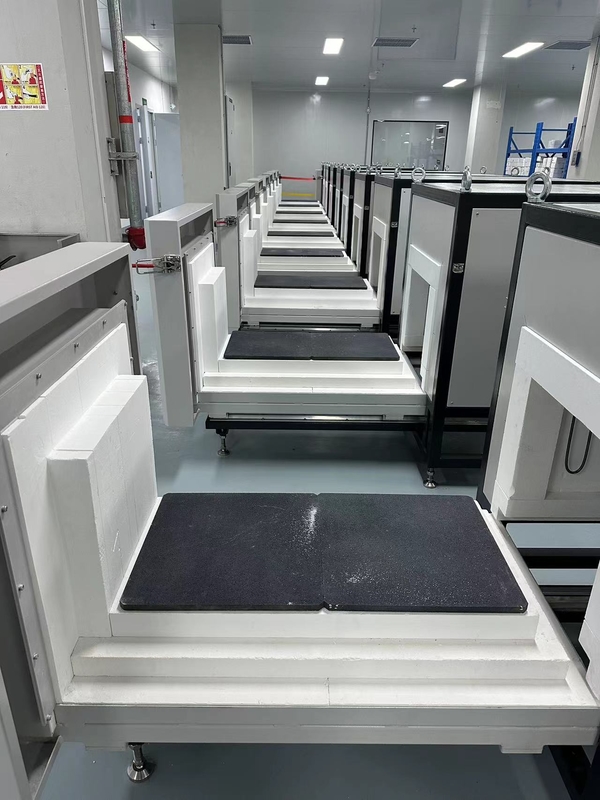

Large Image : HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF105-14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace

Description

Effective Chamber Dimensions:	400330800mm(WHD)	Transport Package:	Wooden Package
Specification:	8509001200mm (WHD)	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	simple operation atmosphere box furnace , high uniformity atmosphere box furnace , atmosphere box furnace with warranty

HBF105-14 Simple Operation Atmosphere Box Furnace

High uniformity atmosphere box furnace with vertical place style, ideal for laboratory use and small-batch production.

Key Specifications

Attribute	Value
Effective Chamber Dimensions	400×330×800mm (W×H×D)
Transport Package	Wooden Package
Specification	850×900×1200mm (W×H×D)
Customization	Available
Certification	ISO
Place Style	Vertical

Equipment Overview

Model: HBF105-14 Sintering Furnace

Silicon molybdenum heating elements (acid/alkali-resistant, excellent uniformity)
Simple operation, suitable for labs and small-batch production
Integrated intelligent control with heating/cooling control cabinet

Technical Specifications

Operating Temperature: 1300°C (Max tested: 1500°C)

Chamber Dimensions: 400×330×800mm (W×H×D)

Boat Material: Corundum mullite

Temperature Stability: ±1°C

Temperature Uniformity: ±5°C

Programmable Segments: 40 segments

Safety Alarms: Overheat/thermocouple failure/low pressure audio-visual alarms; heating-door interlock

Surface Temperature Rise: ＜35°C

Maximum Power: 23kW

Power Supply: 3-phase 380VAC, 50Hz, 30kVA

Weight: 500kg

Installation Dimensions: 800×900×1200mm (D×W×H)

Heating/Cooling Control Cabinet

Control Channels: 5+2 (5 for furnace, 2 spare)

Controllers: Eurotherm 3504 or Japanese import (7 per cabinet)

Dimensions: 800×1850×500mm (W×H×D)

Color: Light gray

Standard Components

Item	Specifications	Quantity	Notes
Kiln Main Unit	Primary heating system	1 set	Core equipment for thermal process
Setter Plate	Material: Corundum-Mullite	1 set	High-temperature resistant carrier
