Zirconia Ceramics Controlled Atmosphere Box Furnace Heat Treatment 1700 Ordm C

Large Image : Zirconia Ceramics Controlled Atmosphere Box Furnace Heat Treatment 1700 Ordm C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hbf52-17o

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Zirconia Ceramics Controlled Atmosphere Box Furnace Heat Treatment 1700 Ordm C

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Fuel:	Electric	Atmosphere:	Air
Effective Chamber Dimensions:	300200550mm(WDH)	Transport Package:	Wooden Packaging
Specification:	115019701300mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Zirconia Ceramics Atmosphere Box Furnace , 1700 Ordm Atmosphere Box Furnace , Zirconia controlled atmosphere heat treatment furnace

1150*1970*1300mm W*H*D Chitherm 1700 ordm C Hbf52-17o High Temperature Box Furnace Perfect for Temperature Applications

1. Applications:

Mainly used for zirconia ceramics, alumina ceramics, ferrites, magnetic materials, electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:

Rated Temp.: 1650ºC
Max Temp.: 1700ºC
Effective Dimensions: 350 × 300 × 500mm(W×H×D)

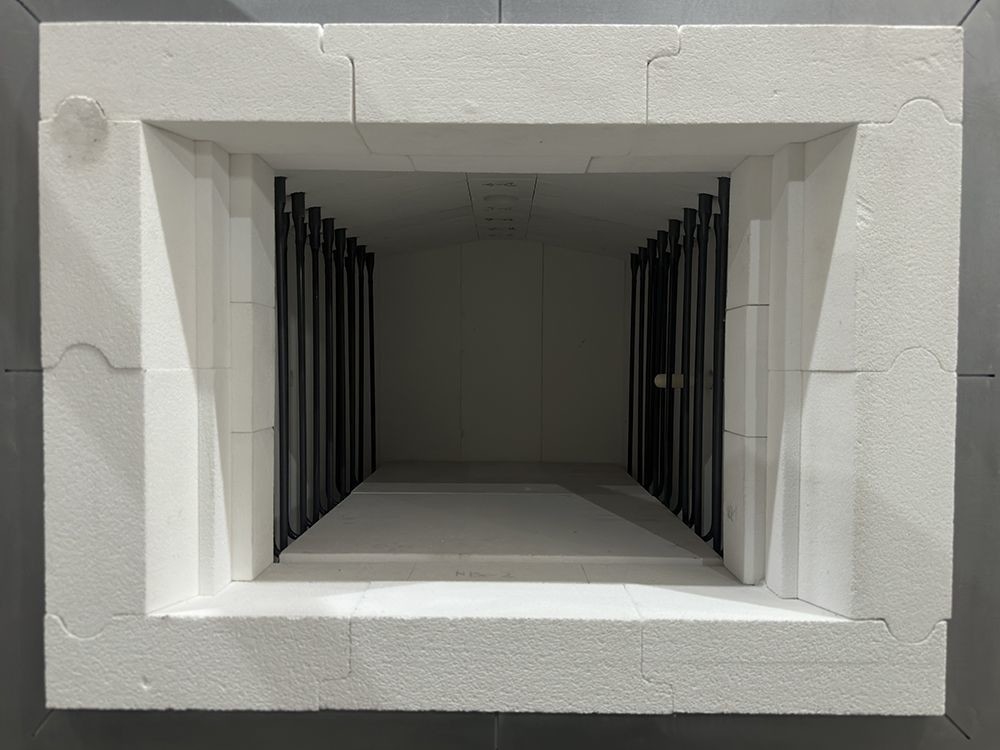

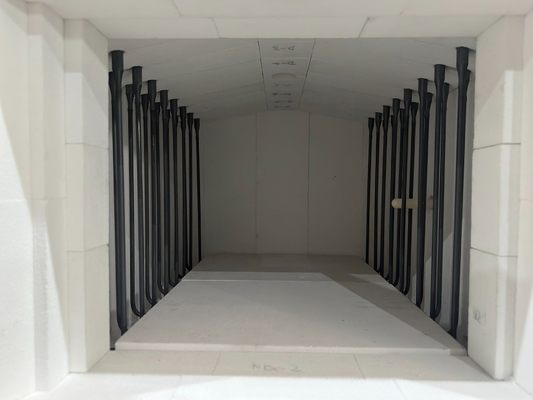

Heating Method: U-shaped MoSi₂ Heating Elements
Process Atmosphere: Air/Oxygen
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1650ºC test)
Thermocouple: B Type
Temperature control points: 1
Temperature measurement points: 1 point
Number of Temp. Profiles: 4×16 steps
Exhaust: One exhaust port with auto cover
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
Max Heating Power: 25kW
Insulation Power: ≤ 10kW
Heating Speed: RT~1200ºC≤5ºC/min,1200~1700ºC≤2ºC/min
Surface Temperature Rise: ≤ 35ºC
Weight: about 900kg
Furnace Dimensions: about 1620×1960×1220mm (W×H×D);
Appearance Color: light gray

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	MoSi₂	1 Set
	Thermocouple	THERMOWAY, B Type	1 PC
	Temperature Controller	Azbil/CHINO	1 Set

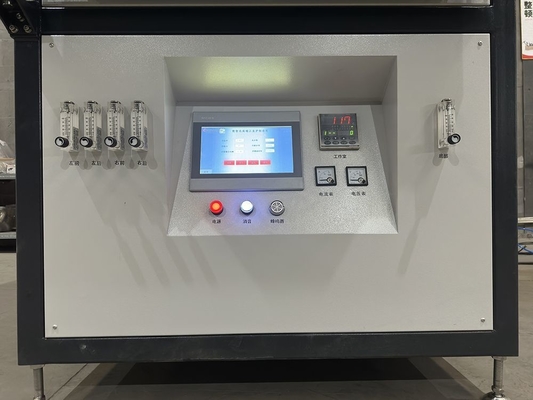

	Monitor	Proface touch screen	1 Set
Spares	Heating Elements	MoSi₂	1 PC
