High Temperature Resistance Atmosphere Box Furnace Precision Control Heating Elements Atmosphere Box Furnace

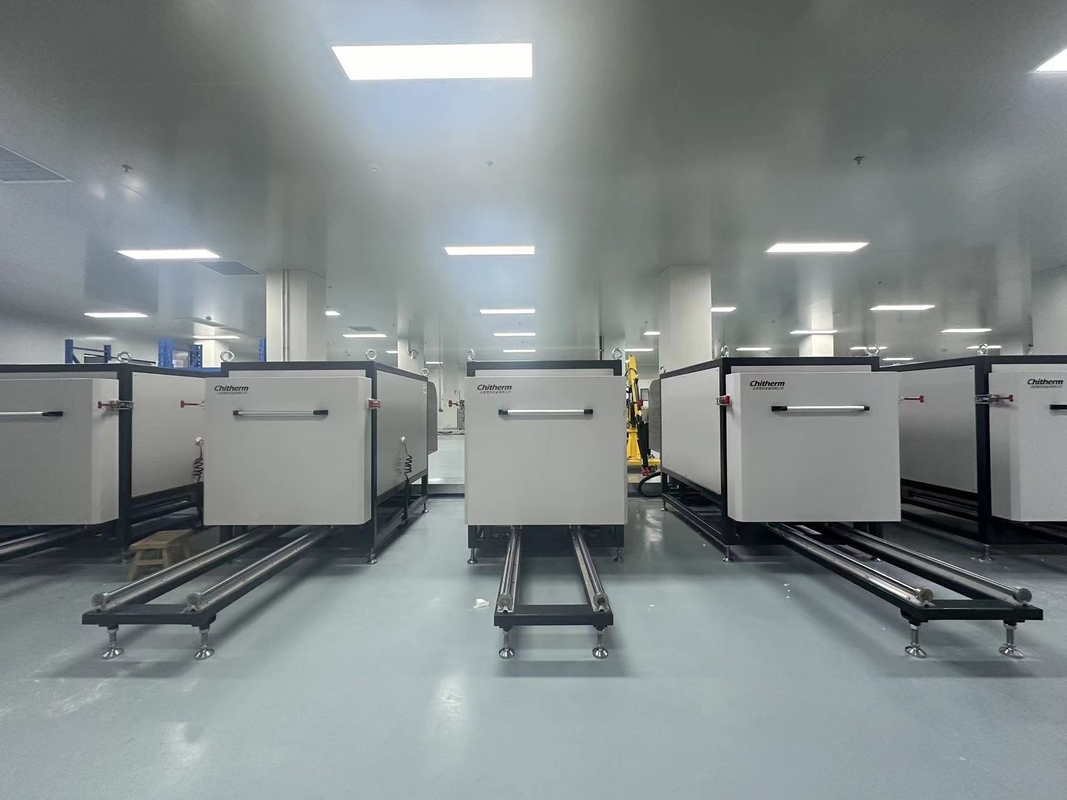

Large Image : High Temperature Resistance Atmosphere Box Furnace Precision Control Heating Elements Atmosphere Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF105-14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

High Temperature Resistance Atmosphere Box Furnace Precision Control Heating Elements Atmosphere Box Furnace

Description

Setter Plate:	Corundum-Mullite	Transport Package:	Wooden Package
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	high temperature resistance box furnace , precision control atmosphere furnace , heating elements box furnace

High Temperature Resistance Atmosphere Box Furnace with Precision Control Heating Elements

Key Specifications

Attribute	Value
Setter Plate	Corundum-Mullite
Transport Package	Wooden Package
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Overview

Model: HBF105-14 Sintering Furnace

Designed for acid and alkali resistance with excellent temperature uniformity, this furnace is ideal for laboratory use and small-scale production applications.

Temperature Performance

Operating Temperature: 1300°C (standard)
Maximum Test Temperature: 1500°C (short-term limit)
Temperature Stability: ±1°C
Furnace Temperature Uniformity: ±5°C

Furnace Chamber and Heating System

Effective Chamber Size: 400×330×800mm (W×H×D)

Heating Elements: Silicon molybdenum rods (high-temperature resistant, oxidation-resistant)

Loading Device: Corundum mullite loading plate (high-temperature resistant, excellent chemical stability)

Safety and Protection

Alarm System: Over-temperature, thermocouple break, low-pressure audible and visual alarms
Heating and door switch interlock (anti-misoperation)
Surface Temperature Rise: <35°C (safety protection design)

Power and Installation

Power Requirements: Three-phase 380VAC, 50Hz, 30kVA

Maximum Heating Power: 23kW

Equipment Weight: 500kg

Installation Dimensions: 800×900×1200mm (D×W×H)

Control System

Temperature Control Channels: 5+2 (5 channels for sintering furnace, 2 backup channels)

Temperature Controllers: Eurotherm 3504 or imported from Japan (high-precision intelligent regulator)

Control Cabinet Dimensions: 800×1850×500mm (W×H×D)

Application Scenarios

Laboratory: Material sintering, heat treatment experiments
Small-Scale Production: High-temperature processes including electronic ceramics and metal powder metallurgy

Standard Components

Item	Specifications	Quantity	Notes
Kiln Main Unit	Primary heating system	1 set	Core equipment for thermal process
Setter Plate	Material: Corundum-Mullite	1 set	High-temperature resistant carrier
