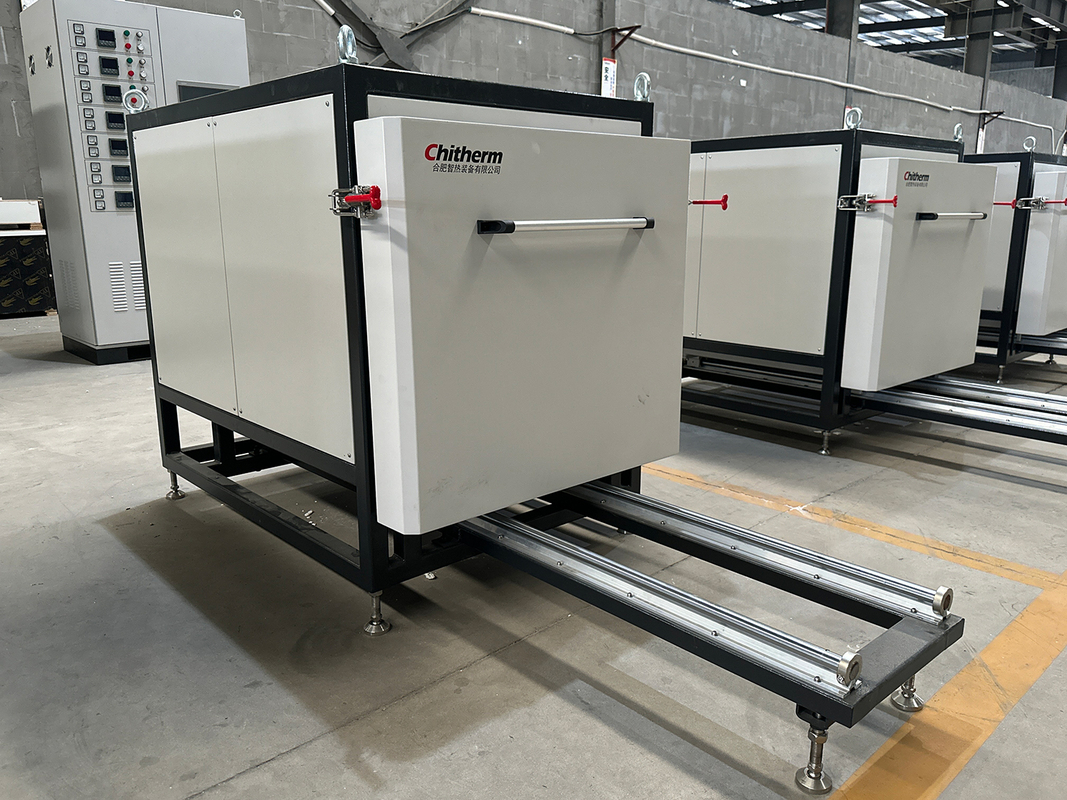

Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace

Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace
Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace
Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace

Large Image :  Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: HBF105-14
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now Chat Now

Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace

Description
Fuel: Electric Effective Chamber Dimensions: 400*330*800mm(W*H*D)
Trademark: Chitherm Origin: China
Certification: ISO Place Style: Vertical
Highlight:

light gray vertical atmosphere furnace

,

PID auto-tuning box furnace

,

atmosphere box furnace with warranty

Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace
Product Specifications
Attribute Value
Fuel Electric
Effective Chamber Dimensions 400*330*800mm (W*H*D)
Trademark Chitherm
Origin China
Certification ISO
Place Style Vertical
Core Parameters of Sintering Furnace
Temperature Performance
  • Rated Temperature: 1300°C (standard operating range)
  • Maximum Temperature: 1500°C (short-term limit; material tolerance must be considered)
  • Usage Tip: Evaluate the lifespan of sintering plates and refractory materials when exceeding 1300°C
Light Gray Casing Vertical Atmosphere Box Furnace PID Auto-tuning Atmosphere Box Furnace 0
Furnace Structure
  • Effective Dimensions: 400×330×800mm (W×H×D), suitable for small to medium-sized workpieces
  • Sintering Plate: Made of corundum mullite, offering high-temperature resistance and chemical stability
  • Refractory Materials:
    • Inner Layer: Polycrystalline mullite (high insulation, thermal shock resistance)
    • Outer Layer: Ceramic fiberboard (lightweight insulation, significant energy savings)
Monitoring & Expandability
  • Pre-installed thermocouple ports and temperature monitoring holes support multi-point measurement or upgrades
Exterior & Color
  • Dimensions: 850×900×1200mm
  • Light gray casing (standard industrial color)
Temperature Control Cabinet Configuration
Temperature Control Channels
  • 5+2 channel design: 5 channels directly connected to the furnace, 2 channels reserved (flexible expansion/redundancy)
  • Instrument Count: 7 temperature controllers (independent control per channel for precision)
Control Instruments
  • Models: Eurotherm 3504 or Japanese imports (international brands, high reliability)
  • Key Features:
    • PID auto-tuning (automatically optimizes heating curves)
    • High-temperature alarms, thermocouple failure alerts (comprehensive safety)
    • Power/voltage modulation (precise adjustments to minimize fluctuations)
Over-Temperature Protection
  • Dual safeguards: audible/visual alarms + heating cutoff to prevent equipment/workpiece damage
Exterior & Color
  • Dimensions: 800×1850×500mm (vertical design, space-saving)
  • Color: Light gray (matches the furnace)
Item Specifications Quantity Notes
Kiln Main Unit Primary heating system 1 set Core equipment for thermal process
Setter Plate Material: Corundum-Mullite 1 set High-temperature resistant carrier
Installation Requirements
  • The equipment must be installed indoors, with an ambient temperature range of -10℃ to 45℃. The indoor environment must be free of flammable gases, corrosive gases, and vapors.
  • The equipment requires a floor space of no less than 4 square meters, with a working area length of at least 2 meters, width of at least 2 meters, and height of no less than 3 meters. The foundation must be sturdy and level, and the furnace weighs approximately 400kg.
  • The power supply for this furnace must be a three-phase five-wire AC power line, with a voltage of 380±10% V and a frequency of 50±2% Hz. This power line is dedicated, and high-power conversion equipment such as welding machines, electric furnaces, and metal-cutting machine tools should not be connected to this distribution.
  • The equipment must be reliably grounded.
