Reliable Safety Premium Components Atmosphere Box Furnace Thermocouple Failure Alerts Atmosphere Box Furnace

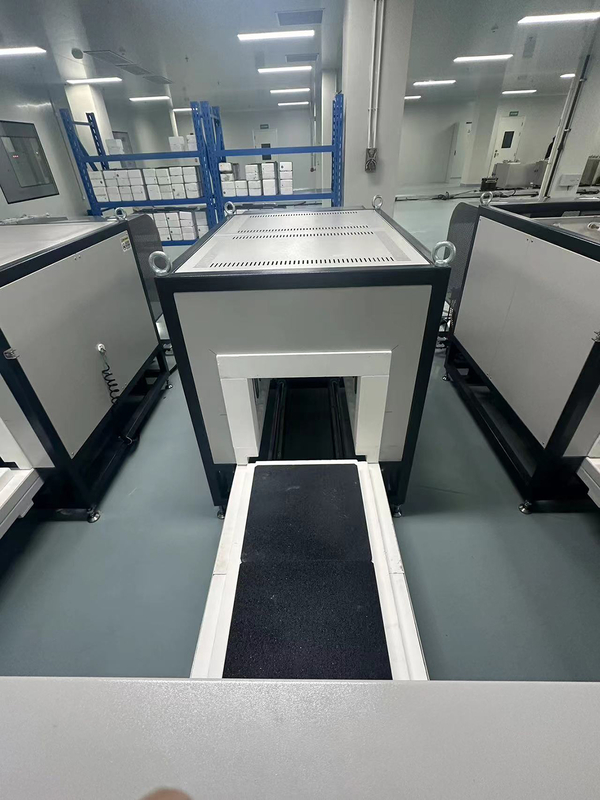

Large Image : Reliable Safety Premium Components Atmosphere Box Furnace Thermocouple Failure Alerts Atmosphere Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF105-14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Reliable Safety Premium Components Atmosphere Box Furnace Thermocouple Failure Alerts Atmosphere Box Furnace

Description

Type:	Electric Holding Furnace	Transport Package:	Wooden Package
Trademark:	Chitherm	HS Code:	8514101000
Customization:	Available	Place Style:	Vertical
Highlight:	atmosphere box furnace thermocouple failure alerts , premium components atmosphere box furnace , reliable safety atmosphere box furnace

Reliable Safety Premium Components Atmosphere Box Furnace with Thermocouple Failure Alerts

Product Attributes

Attribute	Value
Type	Electric Holding Furnace
Transport Package	Wooden Package
Trademark	Chitherm
HS Code	8514101000
Customization	Available
Place Style	Vertical

Core Parameters of Sintering Furnace

Temperature Performance

Rated Temperature: 1300°C (standard operating range)
Maximum Temperature: 1500°C (short-term limit; material tolerance must be considered)
Usage Tip: Evaluate the lifespan of sintering plates and refractory materials when exceeding 1300°C

Furnace Structure

Effective Dimensions: 400×330×800mm (W×H×D), suitable for small to medium-sized workpieces
Sintering Plate: Made of corundum mullite, offering high-temperature resistance and chemical stability
Refractory Materials:
- Inner Layer: Polycrystalline mullite (high insulation, thermal shock resistance)
- Outer Layer: Ceramic fiberboard (lightweight insulation, significant energy savings)
Monitoring & Expandability: Pre-installed thermocouple ports and temperature monitoring holes support multi-point measurement or upgrades
Exterior & Color: Dimensions: 850×900×1200mm, light gray casing (standard industrial color)

Temperature Control Cabinet Configuration

Temperature Control Channels

5+2 channel design: 5 channels directly connected to the furnace, 2 channels reserved (flexible expansion/redundancy)
Instrument Count: 7 temperature controllers (independent control per channel for precision)

Control Instruments

Models: Eurotherm 3504 or Japanese imports (international brands, high reliability)
Key Features:
- PID auto-tuning (automatically optimizes heating curves)
- High-temperature alarms, thermocouple failure alerts (comprehensive safety)
- Power/voltage modulation (precise adjustments to minimize fluctuations)

Over-Temperature Protection

Dual safeguards: audible/visual alarms + heating cutoff to prevent equipment/workpiece damage

Exterior & Color

Dimensions: 800×1850×500mm (vertical design, space-saving)
Color: Light gray (matches the furnace)

Item	Specifications	Quantity	Notes
Kiln Main Unit	Primary heating system	1 set	Core equipment for thermal process
Setter Plate	Material: Corundum-Mullite	1 set	High-temperature resistant carrier
