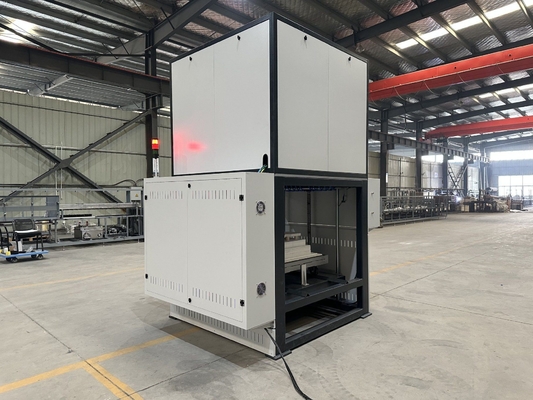

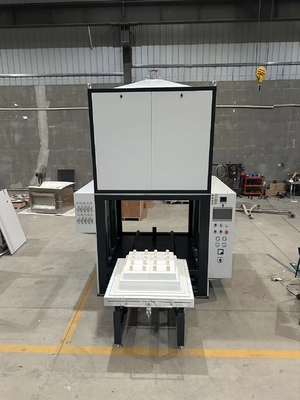

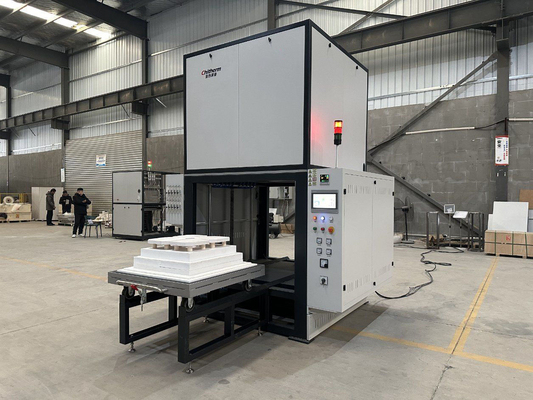

Steel Heat Treatment Elevator Furnace Ceramic Sintering Bell Furnace 50kW

Large Image : Steel Heat Treatment Elevator Furnace Ceramic Sintering Bell Furnace 50kW

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF150-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Steel Heat Treatment Elevator Furnace Ceramic Sintering Bell Furnace 50kW

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	550500550mm(DWH)
Transport Package:	Wooden Packaging	Specification:	174027802505mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	steel heat treatment Elevator Furnace , 50kW Elevator Furnace , 50kW steel heat treatment furnace

Electric Holding Furnace Chitherm Bf150-17 Ceramic Sintering Bell Furnace 1740*2780*2505mm W*H*D for Production Line

1. Application:

This equipment is mainly designed for electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.

2. Technical Specification:

Rated Temp.:1650ºC
Max Temp.:1700ºC
Effective Dimensions:550mm×500mm×550mm(D×W×H)
Heating Method: U-shaped silicon molybdenum heater
Thermcouple:B-Type
Temperature Control: 1 Point
Temp. Set Accuracy: ±1ºC(flat temp. insulation)
Temp. Control Mode:control module imported from Japan with PID
Heat-up Rate :400 ~ 1000≤5ºC/min,1000 ~ 1500≤2ºC/min
Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1500ºC)
Program Tracking Accuracy: ±2ºC (>600ºC)
Furnace Surface Temperature ≤ RT+35ºC
Maximum Lifting Trip:800mm
Lift System: the equipment lifting operation system adopts three-point control, which can be stopped at any time, with stable and reliable operation

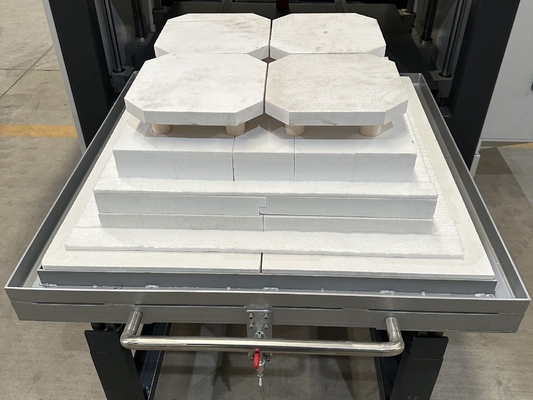

Loading Weight ≤ 1000kg (with firing furniture and products)
Atmosphere Control : four channels of air inlet, each channel of air flow is controlled by the glass rotor flowmeter, single range of 12 ~ 120L / min
Exhaust System : 1 exhaust chimney is set at the top for exhaust gas emission
Alarm System : with over-temperature, broken couple, overload, over-range, deviation and other sound and light alarm protection function
Maximum Heating Power:50kW
Insulation Power:≤25kW
External Dimensions: 1740×2780×2505mm(D×W×H) (without control cabinet)
Appearance Color: Light gray

2. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET

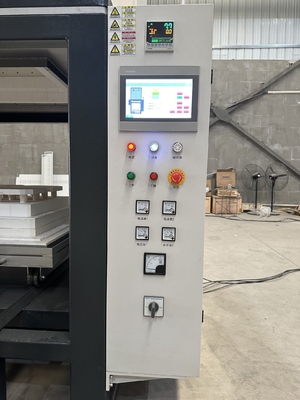

	Control Cabinet	1000×2000×600mm(W×H×D)	1 SET
Key Components	Heating Plate	U-shaped silicon molybdenum heater	1 SET
	Flow Meter	TOFCO	1 SET
	Thermocouple	THERMOWAY	1 SET
	Lifting System		1 SET
	Temperature Control Module	Azbil	1 SET
	PLC	SIEMENS	1 SET
	Touch Screen	MCGS	1 SET
Spare Parts	Heating Element	U-shaped silicon molybdenum heater	1 PC

3. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 - 30 m³/h;
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 35 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m²;
Power Condition(TBD): capacity > 70kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site:3800mm×2650mm×3500mm(D×W×H), with an installation area greater than 12m².
