Vacuum Hydrogen Atmosphere Furnace For Precise Sintering Batch Production

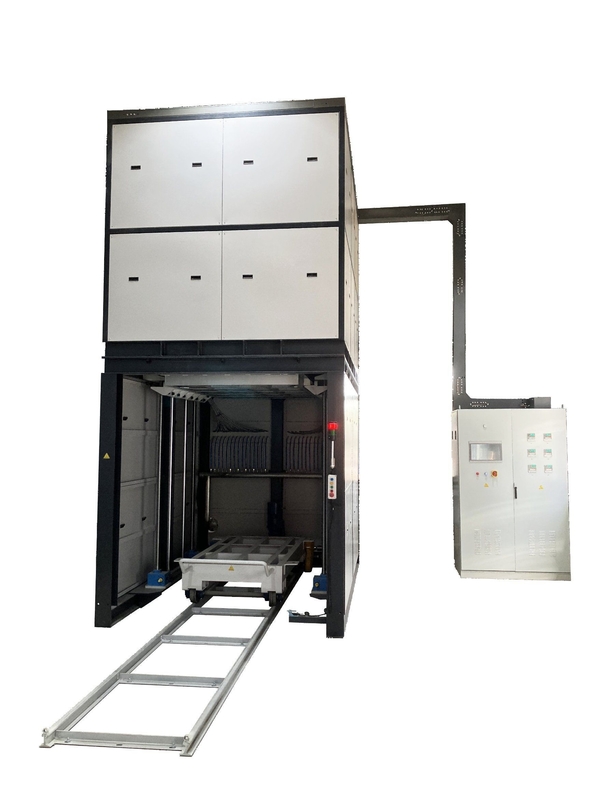

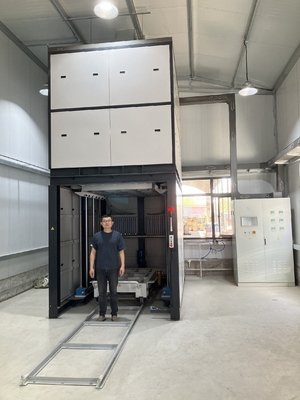

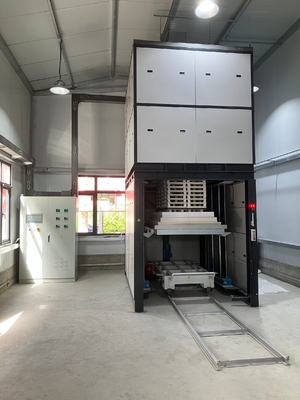

The Chitherm BF1500-15O Electric Holding Furnace is a high-performance 1500°C ceramic sintering bell furnace designed for precise temperature control and small batch production applications.

This industrial furnace is specifically designed for electronic ceramic materials, magnetic materials, ceramic filters, and other applications requiring high temperature field uniformity or multi-species small batch production.

• Rated Temperature: 1400°C
• Maximum Temperature: 1500°C

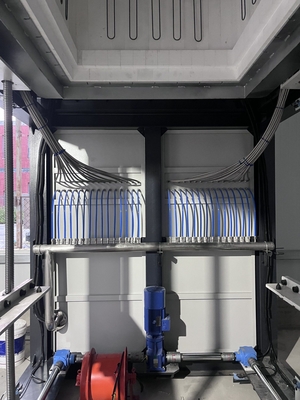

• Heating Method: U-shaped silicon molybdenum heater
• Temperature Control: 6-point control with ±1°C accuracy
• Control System: Japanese imported PID control module
• Temperature Uniformity: ±5°C (empty furnace test at 1400°C for 2 hours)
• Maximum Loading Weight: 1000kg (including firing furniture and products)
• Atmosphere Control: Four-channel air inlet with flowmeter control (12-120L/min)
• Power Requirements: 240kVA, 3-phase 5-line, 220/380V, 50Hz

• Environment: 0-40°C, ≤80%RH, no corrosive gas or strong airflow
• Compressed Air: Dry, clean, oil-free (0.4-0.8MPa, 30-90 m³/h)
• Ventilation: Non-contact access to user pumping system (>100 m³/h capacity)
• Floor Requirements: Horizontal, vibration-free, load-bearing >600 kg/m²
• Installation Space: Minimum 4000×4000×5000mm (D×W×H), >20m² area
