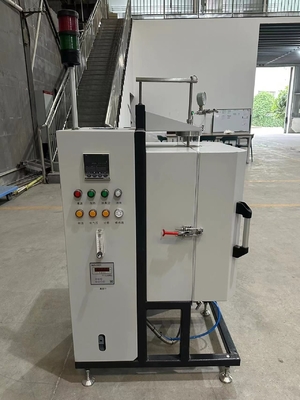

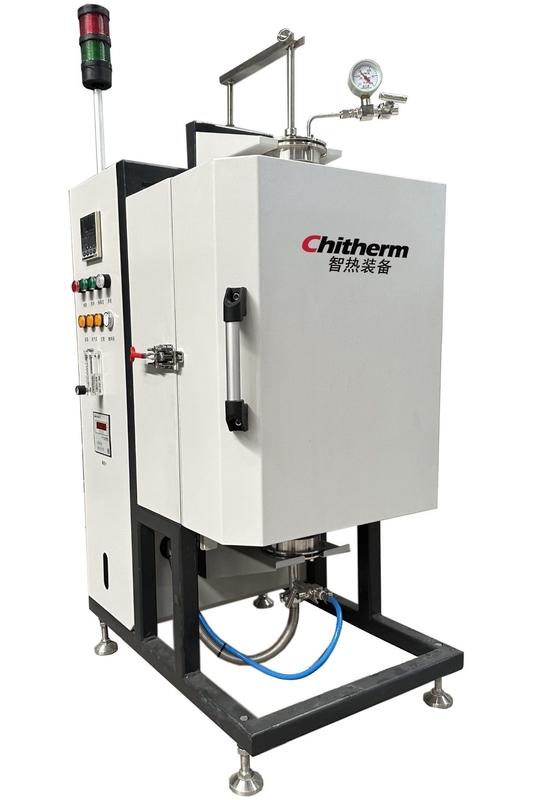

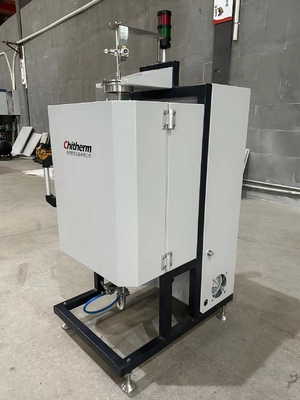

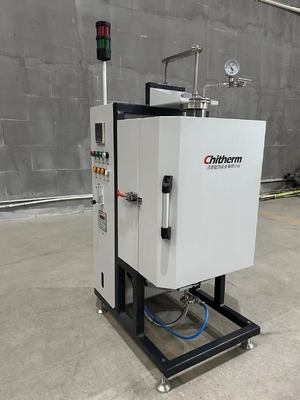

Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory

Large Image : Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	VTF1050-05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Fuel:	Electric	Tube Dimensions:	Φ100(Od)Φ94(ID)800mm
Tube Material:	Quarz	Atmosphere:	Vacuum
Transport Package:	Wooden Packaging	Specification:	4501100840mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	Vertical cvd tube furnace , 800mm cvd tube furnace , 800mm laboratory tube furnace

Chitherm Vtf1050-05 Vertical Vacuum Tube Furnace with and 94 ID *800mm Tube Dimensions 50 Sets/Year

Hefei CHITHERM Equipment Co., Ltd. is an advanced equipment supplier specializing in the R&D, design, manufacturing, sales, maintenance and service of industrial heat treatment furnaces and experimental furnaces.

Our products include Bell Furnace, Hot Air Dryer, Box Furnace, Tube Furnace, Vacuum Furnace, Trolley Furnace, Rotary Furnace, Mesh Belt Furnace, Push Plate Furnace, etc. , which are widely used in advanced ceramics, electronic components, thick film circuit, additive manufacturing, powder metallurgy, new energy, photovoltaic and other fields.

It is suitable for the heat treatment process of ITO target, MLCC / HTCC / LTCC, ceramic filter, magnetic material, CIM / MIM, positive and negative electrode of lithium battery, as well as pre firing, glue discharging, degreasing, firing, drying, heat treatment, curing, ceramic metallization and other processes of various new materials.

2.Technical Specification:

Rated Temperature: 450ºC
Max. Temperature: 500ºC

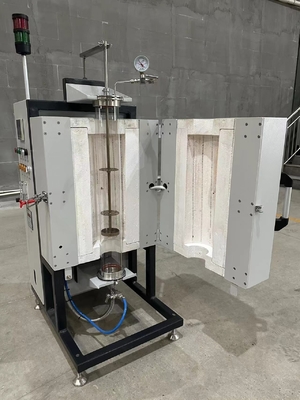

Tube Dimensions: φ100(OD)mm×φ94(ID)mm×800mm
Temp Zone Length: 500mm
Chamber Insulation Material: Aluminosilicate Ceramic Fiber
Heating Elements: Resistance Coils in Ceramic Fiber Block
Thermcouple: Type K
Temperature Control Point: 1 Point
Temperature Control Precision≤ ±1ºC
Temperature Control Mode: Temperature controller imported from Japan with PID
Vacuum Level: 10Pa
Pump Speed: 100Pa in 2 min
Furnace Surface Temperature ≤ RT+35ºC
Alarms: Over temp, TC failure, low air pressure etc
Total Power: 3kW
Insulation Power: 1.5kW
Furnace Dimensions: 450×1100×840mm(W×H×D)
Weight: about 120kg
