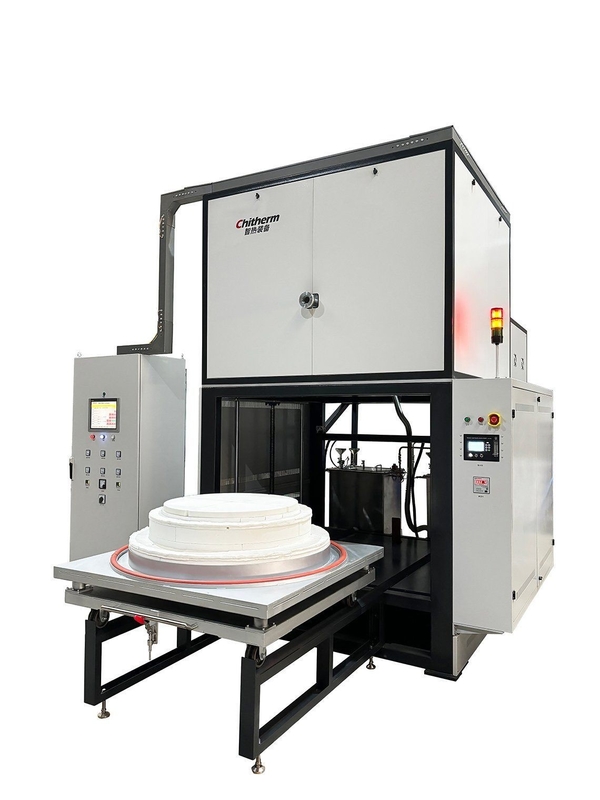

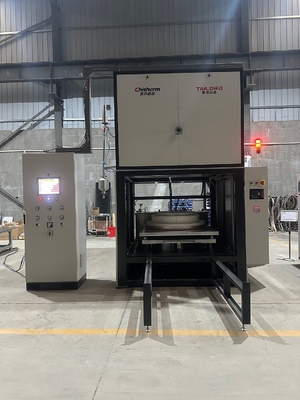

Nitrogen Hydrogen Atmosphere Elevator Furnace HTCC Steel Molding

Large Image : Nitrogen Hydrogen Atmosphere Elevator Furnace HTCC Steel Molding

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF220-17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Nitrogen Hydrogen Atmosphere Elevator Furnace HTCC Steel Molding

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	H2/N2	Effective Chamber Dimensions:	Φ750*500
Warranty:	1 Year	Transport Package:	Wooden Packaging
Specification:	224029003000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Hydrogen Atmosphere Elevator Furnace , HTCC Elevator Furnace , HTCC hydrogen atmosphere furnace

Chitherm Bf220-17nh Temperature Atmosphere Bell Furnace Effective Chamber Dimensions 750*500 and Customization Options

1. Application:

It is mainly used in the high-temperature co-sintering process of alumina substrate and metal slurry (HTCC) in nitrogen-hydrogen atmosphere. Chitherm Bf220-17nh High-Temperature Atmosphere Bell Furnace

2. Technical Specification:

Rated Temp.:1600ºC
Max Temp.:1650ºC
Effective Dimensions:Φ750*50

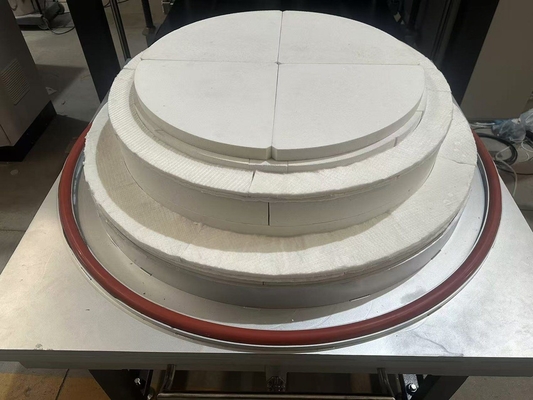

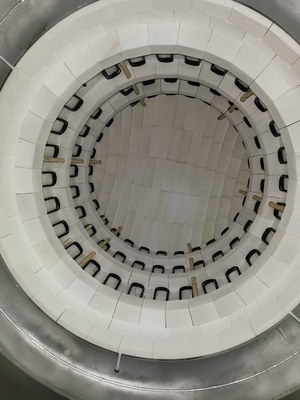

Heating Method: Molybdenum-made heater
Thermcouple: Type B
Temperature Control: There are a total of 3 heating groups from top to bottom, with 3 independent temperature control points.
Temp. Set Accuracy: ±1ºC(flat temp. insulation)
Temp. Control Mode:control module imported from Japan with PID
Heat-up Rate : RT~1200ºC≤5ºC/min,1200~1600ºC≤3ºC/mi
Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1600ºC)
Dew point range: -20~60ºC
Furnace Surface Temperature <35ºC
Pressure range:5000~15000Pa
Vacuum detection: vacuum gauge tube detects the vacuum value of the furnace, and the digital vacuum gauge displays the vacuum value.
Loading Weight ≤ 3500kg (with firing furniture and products)
Explosion protection: when the furnace pressure is higher than the set value, the exhaust valve will automatically open.
Exhaust chimney: an exhaust outlet with a ignition device
Alarm System : Over temperature, broken couple, electric leakage, broken wire, motor overload, humidifier low water level, low pressure, cooling water low water pressure, UPS start alarm and has over temperature alarm power protection function.
Maximum Heating Power:120kW
Insulation Power:≤ 60kW
External Dimensions: 2240*2900*3000mm(W*H*D) (without control cabinet)
Appearance Color: Light gray

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Molybdenum wire	Custom-made	1 SET
	Flow Meter	Azbil or HORIBA	1 SET
	Thermocouple	Song Qi	1 SET
	Lifting System		1 SET
	Temperature Control Module	Azbil	3 SET
	PLC	SIEMENS	1 SET
	Touch Screen	MCGS	1 SET
Spare Parts	Heater		1 PC

4. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4- 0.8MPa, gas consumption of 30 - 90 m³/h;
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m²;
Power Condition(TBD): capacity > 240kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 4000mm*4000mm*5000mm(D*W*H), with an installation area greater than 20m².
