Fuel Electric Polarization Control Furnace Cabinet Parts Customized

Fuel Electric Polarization Control Furnace Cabinet Parts Customized
Fuel Electric Polarization Control Furnace Cabinet Parts Customized
Fuel Electric Polarization Control Furnace Cabinet Parts Customized Fuel Electric Polarization Control Furnace Cabinet Parts Customized Fuel Electric Polarization Control Furnace Cabinet Parts Customized Fuel Electric Polarization Control Furnace Cabinet Parts Customized Fuel Electric Polarization Control Furnace Cabinet Parts Customized Fuel Electric Polarization Control Furnace Cabinet Parts Customized Fuel Electric Polarization Control Furnace Cabinet Parts Customized

Large Image :  Fuel Electric Polarization Control Furnace Cabinet Parts Customized

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: 7 passageway
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now Chat Now

Fuel Electric Polarization Control Furnace Cabinet Parts Customized

Description
Surface Treatment: Painted Fuel: Electric
Range Of Applications: Industrial Transport Package: Wooden Packaging
Specification: 800*1850*500mm(W*H*D) Trademark: Chitherm
Origin: China HS Code: 8514101000
Supply Ability: 50 Sets/Year Customization: Available
Certification: ISO Customized: Customized
Highlight:

Polarization furnace cabinet

,

Customized furnace cabinet

,

electric furnace parts Cabinet

Fuel Electric Polarization Control Furnace Cabinet Parts Customized
Attribute Value
Surface Treatment Painted
Fuel Electric
Range of Applications Industrial
Transport Package Wooden Packaging
Specification 800*1850*500mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Customized Customized
Product Description

Customized Electric Chitherm Polarization Control Cabinet Fuel Electric for Optimal Performance

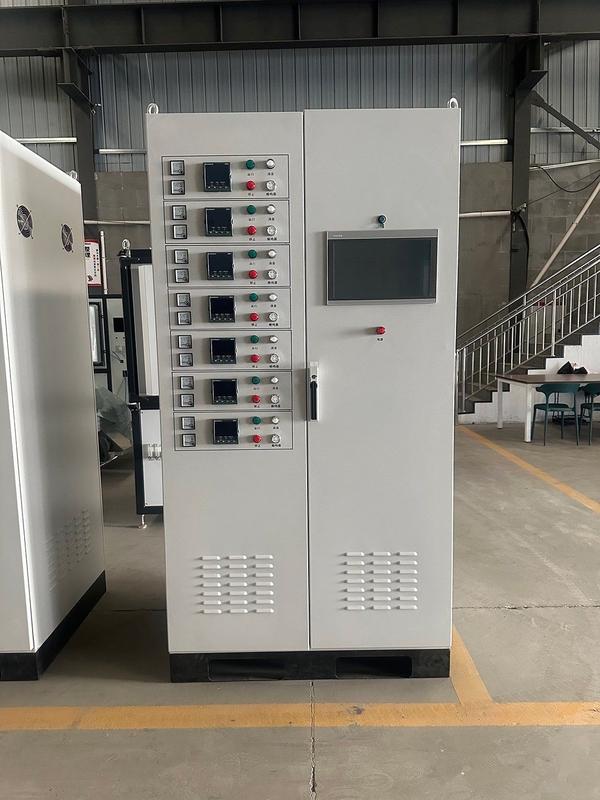

1. Basic Configuration

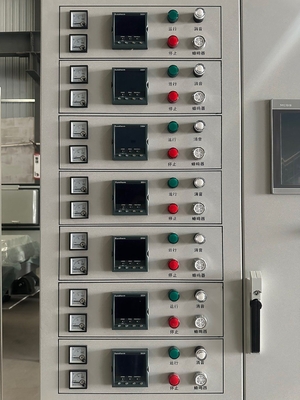

  • Temperature control channels: 5 + 2, of which 5 channels are used to control the sintering furnace, and the remaining 2 channels are spare.
  • Temperature control instrument: Eurotherm3504.
  • Number of instruments: Each control cabinet is equipped with 7 temperature controllers.

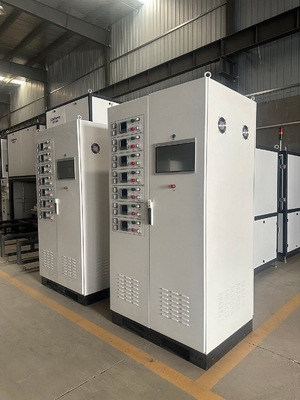

  • External dimensions: 800*1850*500mm(W*H*D).
  • Appearance Color: Light gray.
Fuel Electric Polarization Control Furnace Cabinet Parts Customized 0

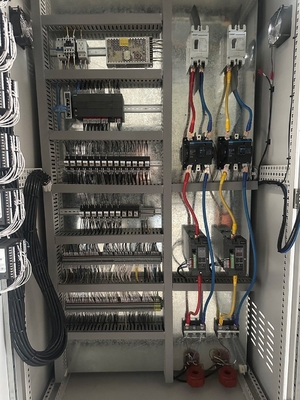

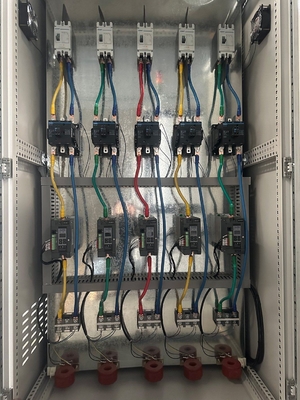

2. Control System
  • Control instrument: Controlled by Eurotherm3504 intelligent regulator, it has multiple alarm protection functions such as PID parameter self-tuning, high temperature upper limit alarm, thermocouple failure indication, etc.
  • Control mode: power adjustment and voltage control.
  • Over-temperature treatment: When the temperature over-temperature phenomenon occurs, the temperature over-temperature alarm system will immediately send a sound and light alarm signal and cut off the heating at the same time.
Fuel Electric Polarization Control Furnace Cabinet Parts Customized 1
3. Delivery List
Name Main content Qty.
Control cabinet 1 SET
Temperature controller Eurotherm3504 1 SET
Power regulator 1 SET
Low-voltage appliances 1 SET
Touch Screen 1 SET
