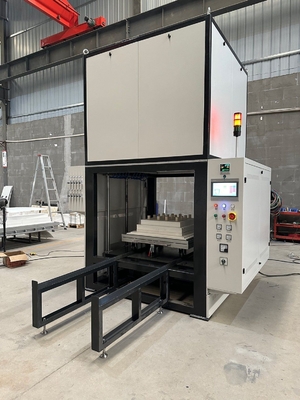

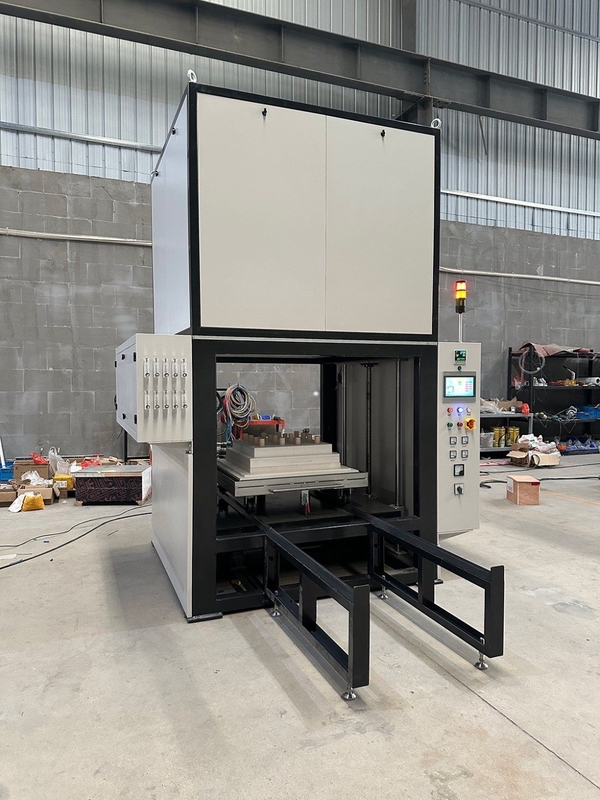

Magnetic Materials Industrial Sintering Furnace For Ceramic Sintering

Large Image : Magnetic Materials Industrial Sintering Furnace For Ceramic Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf125-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Magnetic Materials Industrial Sintering Furnace For Ceramic Sintering

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	550500550mm(DWH)
Transport Package:	Wooden Packaging	Specification:	174027802505mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	magnetic materials industrial sintering furnace , Ceramic industrial sintering furnace , Industrial magnetic annealing furnace

High Temp. Bell Furnace 1740*2780*2505mm W*H*D for Ceramic Sintering within Chitherm Bf125-17

1. Application:

This equipment is mainly designed for electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.

2. Technical Specification:

Rated Temp.:1600ºC
Max Temp.:1700ºC

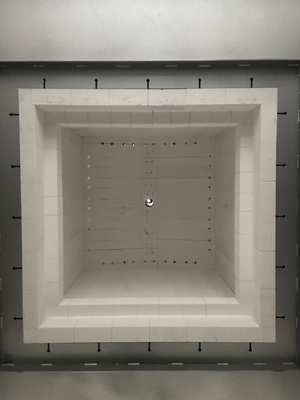

Effective Dimensions:550mm*500mm*550mm(D*W*H)
Heating Method: U-shaped silicon molybdenum heater
Thermcouple:R-Type
Temperature Control: 1 Point
Temp. Set Accuracy: ±1ºC(flat temp. insulation)

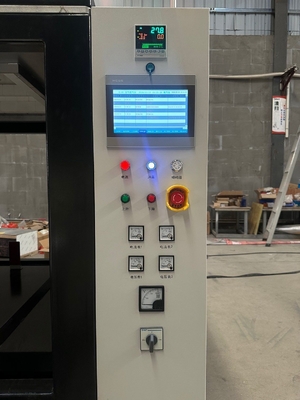

Temp. Control Mode:control module imported from Japan with PID
Heat-up Rate :400 ~ 1000≤5ºC/min,1000 ~ 1500≤2ºC/min
Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1500ºC)
Maximum Lifting Trip:800mm
Lift System: the equipment lifting operation system adopts three-point control, which can be stopped at any time, with stable and reliable operation
Loading Weight ≤ 1000kg (with firing furniture and products)
Exhaust System : 1 exhaust chimney is set at the top for exhaust gas emission
Alarm System : with over-temperature, broken couple, overload, over-range, deviation and other sound and light alarm protection function
Maximum Heating Power:50kW
Insulation Power:≤25kW
External Dimensions: 1740*2780*2505mm(D*W*H) (without control cabinet)
Appearance Color: Light gray.

2. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
	Electrical purification furnace		1 SET
Key Components	Silicon molybdenum rods	U-shaped Model MK1800 (Diameter Range: 6-12mm)	1 SET
	Touchscreen		1 SET
	Thermocouple	R-Type	1 SET
	Temperature Control Module		1 SET
Spare Parts	Heating Element	U-shaped silicon molybdenum heater	1 PC

3. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;

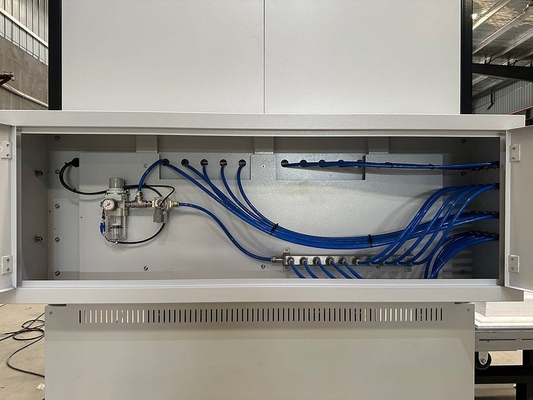

Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 - 30 m³/h;
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 35 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m²;
Power Condition(TBD): capacity > 70kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site:3800mm*2650mm*3500mm(D*W*H), with an installation area greater than 12m².
