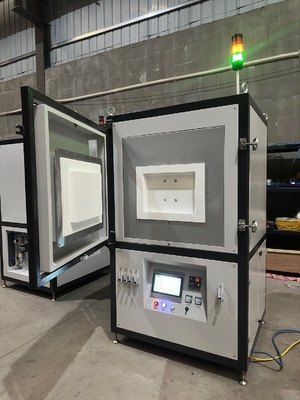

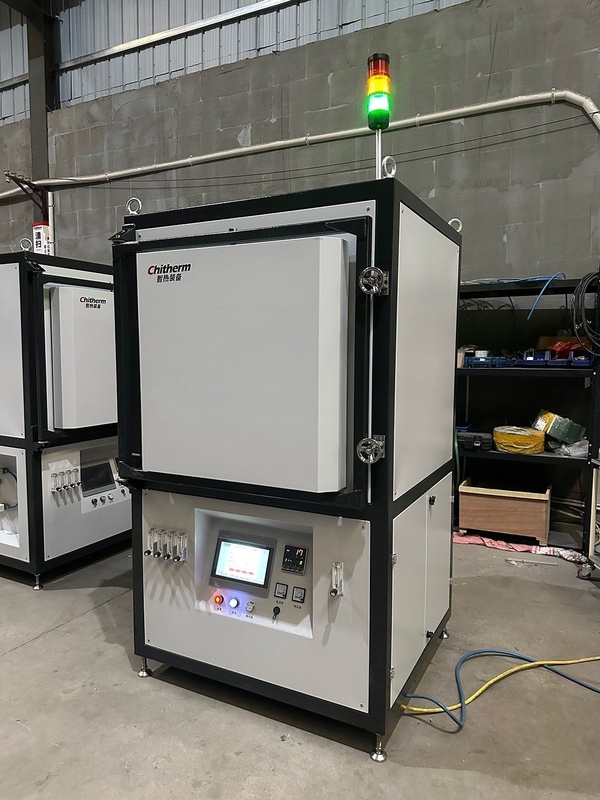

ODM High Temp Industrial Electric Heat Treatment Furnace For Ceramic Sintering

Large Image : ODM High Temp Industrial Electric Heat Treatment Furnace For Ceramic Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hbf52-17o

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

ODM High Temp Industrial Electric Heat Treatment Furnace For Ceramic Sintering

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air/Oxygen	Effective Chamber Dimensions:	350300500mm(WHD)
Transport Package:	Wooden Packaging	Specification:	162019601220mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	ODM electric heat treatment furnace , Sintering electric heat treatment furnace , Sintering industrial heat treat furnace

High Temp. Box Furnace Chitherm Hbf52-17ohigh for Ceramic Sintering 1620*1960*1220mm W*H*D

1. Applications:

High-temperature sintering processes are widely used for ITO targets, microwave ferrites, magnetic materials, electronic components, ceramic filters, and similar products.

2. Mainly Specifics:

Rated Temp.: 1650ºC
Max Temp.: 1700ºC
Effective Dimensions: 350 * 300 * 500mm(W*H*D)

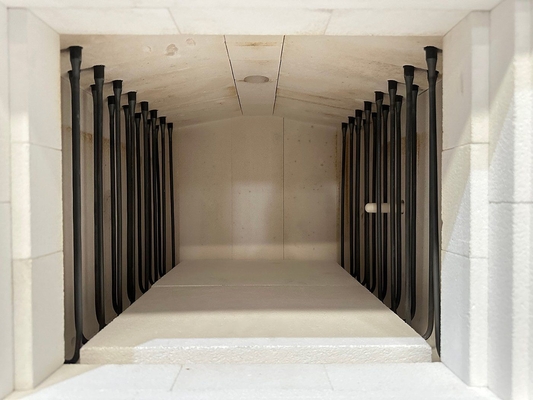

Heating Method: U-shaped Silicon Molybdenum Rod.
Process Atmosphere: Air/Oxygen
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1650ºC test)
Thermocouple: B Type
Temperature control points: 1
Number of Temp. Profiles: 4*16 steps
Exhaust chimney: Located at the top of the furnace chamber, with an automatically opening/closing chimney cover.
Alarm protection: Audible and visual alarms for over-temperature, thermocouple break, and other faults, with power cut-off protection upon over-temperature alarm.
Max Heating Power: 25kW
Insulation Power: ≤ 10kW
Heating Speed: RT~1200ºC≤5ºC/min,1200~1700ºC≤2ºC/min
Surface Temperature Rise: ≤ 35ºC
Weight: about 950kg
Furnace Dimensions: about 1620*1960*1220mm (W*H*D);
Appearance Color: light gray

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	U-shaped Silicon Molybdenum Rod	1 Set
	Thermocouple	THERMOWAY, B Type	1 PC
	Temperature Controller		1 Set
	PLC		1 Set

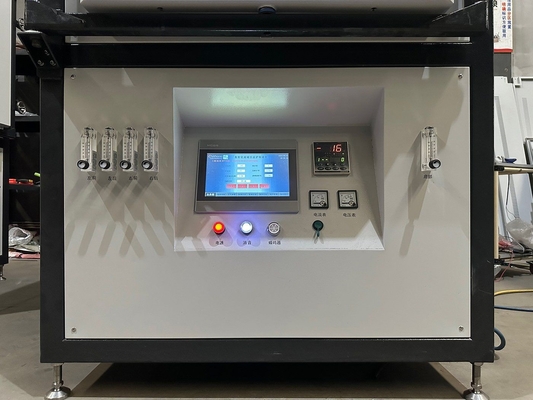

	Monitor	Proface touch screen	1 Set
Spares	SSR		2 Set
Spares	U-shaped Silicon Molybdenum Rod		2 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 2 - 6m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 300Kg/m².
4.5 Power conditions: capacity greater than 34kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm*3000mm*1500mm (W*H*D), installation area greater than 3m².
