ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment

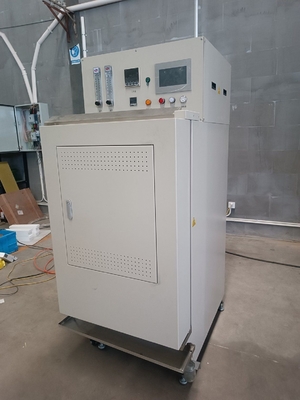

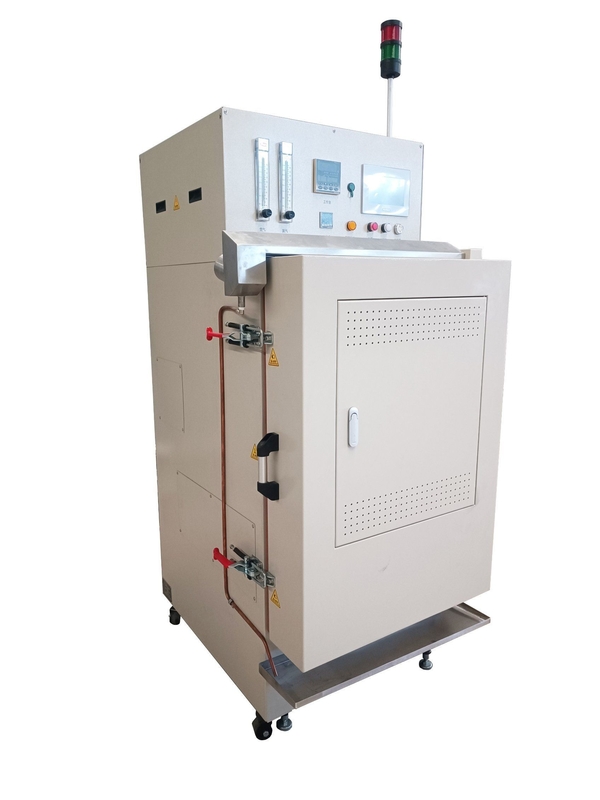

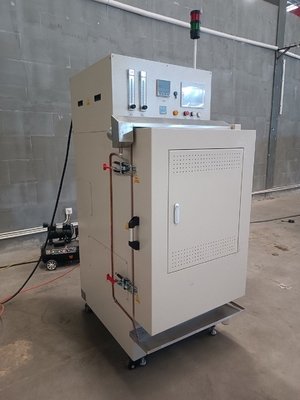

800*1100*1800mm W*H*D Dimensions and ISO Certified Chitherm Hrf230-05 Hot Air Box Furnace for Heat Treatment Processes

Widely used in the debinding processes of LTCC and MLCC manufacturing.

• Rated temperature: 400°C
• Maximum temperature: 450°C
• Effective dimensions: 550*660*640mm (W*H*D)
• Temperature uniformity: ±3°C
• Temperature stability: ±1°C
• Sintering atmosphere: Air
• Heating elements: Stainless steel heaters
• Compact design with small footprint

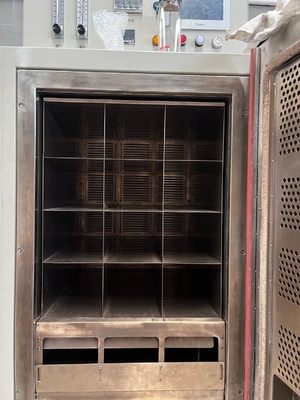

• The chamber adopts a 12-grid structure forming 12 airflow channels. Airflow volume is adjusted by controlling the opening angle of air outlet panels in each channel, achieving high temperature uniformity
• Tested temperature uniformity within ±3°C

• Environmental Conditions: temperature: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
• Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 10-20m³/h
• Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 20 m³/h
• Ground Requirements: horizontal, no obvious vibration, load-bearing > 300 Kg/m²
• Power Condition(TBD): capacity > 16kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
• Installation Site: 1000mm*1500mm*3000mm(W*D*H), with an installation area greater than 1.5m²
