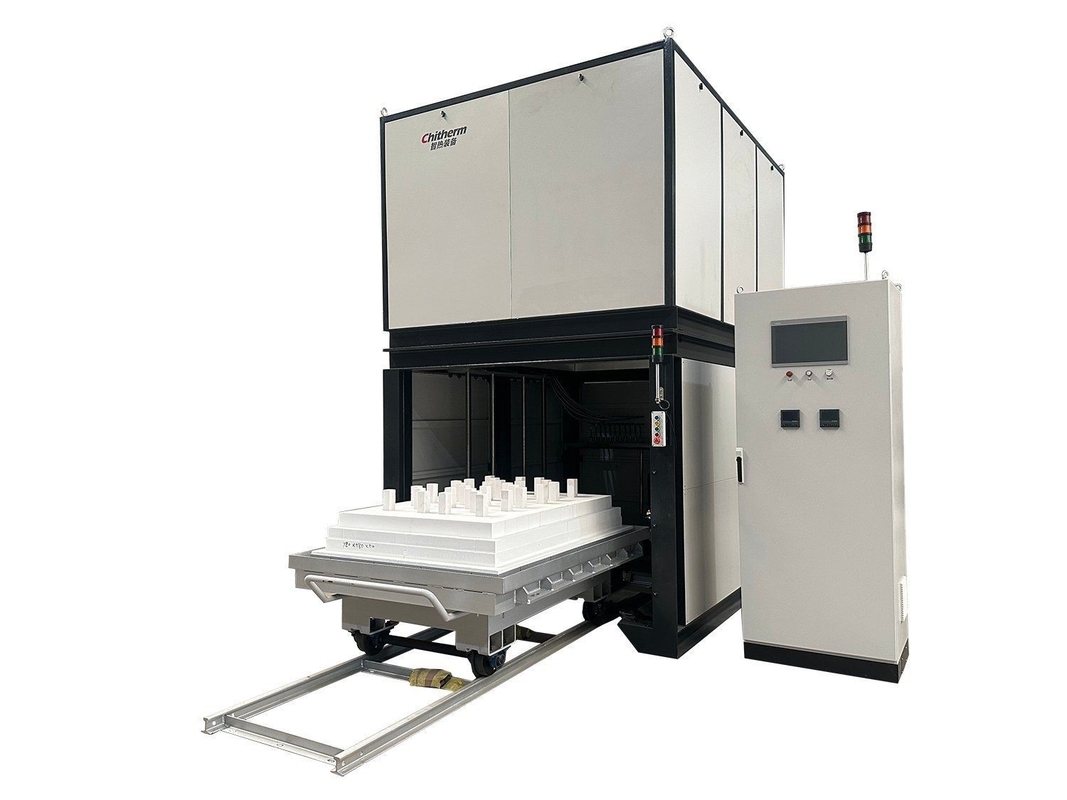

High Temperature Sintering Heat Treatment Gas Elevator Furnace Customized

Large Image : High Temperature Sintering Heat Treatment Gas Elevator Furnace Customized

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF580-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

High Temperature Sintering Heat Treatment Gas Elevator Furnace Customized

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air And O2	Effective Chamber Dimensions:	1200600800mm(DWH)
Warranty:	1 Year	Transport Package:	Wooden Packaging
Specification:	288036002240mm(DHW)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	high temperature Elevator Furnace , Customized Elevator Furnace , Customized heat treatment gas furnace

Electric Holding Furnace Bf580-17 Temperature Treatment Furnace with Customization

1. Application:

The equipment is widely used in high-temperature sintering processes for advanced ceramics, magnetic materials, electronic ceramic components, and other products. Bf580-17 High-Temperature Treatment Furnace

2. Technical Specification:

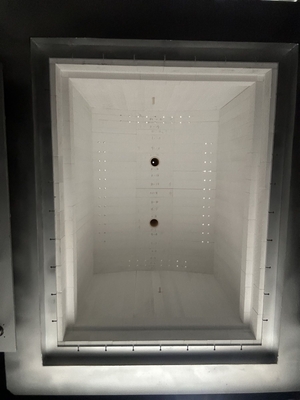

Effective Chamber Size: 1200×600×800mm (D×H×W)
External Reference Dimensions: 2880×3600×2240, excluding tracks and control cabinet
Temperature Range: 1700ºC~1750ºC
Heating Method: Heating Elements
Number of Heating Zones: 1
Insulation Material: Alumina Products / Ceramic Fiber Material
Atmosphere: Air / Oxygen
Number of Control Points: 2
Temperature Control Instrument: Imported Intelligent Temperature Controller from Japan
Number of Gas Inlet Points: 20 points in total on opposite sides of the furnace body (10 points on each side)
Operating Power Supply: 220/380VAC 50Hz
Maximum Power: 120kW
Equipment Weight: Approximately 8000kg

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Silicon molybdenum rod	U-shaped silicon molybdenum heater	1 SET
	Power regulator		1 SET
	Thermocouple		1 SET
	temperature controller	Island Electric, Dahua Qianye, Eurofins and other similar brands	1 SET
	PLC	SIEMENS	1 SET
	Touch Screen	15 cun	1 SET
Spare Parts	Heating Element	U-shaped silicon molybdenum heater	1 PC

4. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4- 0.8MPa, gas consumption of 10 -30 m³/h;
Ventilation System: Non contact access user exhaust system, with an exhaust capacity greater than 50 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 1000 Kg/m²;
Power Condition(TBD): capacity > 160kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 6000mm×4000mm×4000mm(D×W×H), with an installation area greater than 24m².
