Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM

Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM
Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM
Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM

Large Image :  Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: Mbf22-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now Chat Now

Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM

Description
Range Of Applications: Industrial Type: Electric Holding Furnace
Usage: Ceramic Sintering Fuel: Electric
Atmosphere: Nitrogen Effective Chamber Dimensions: 330*200*330mm(W*H*D)
Transport Package: Wooden Packaging Specification: 1300*1900*1160mm(W*H*D)
Trademark: Chitherm Origin: China
HS Code: 8514101000 Supply Ability: 50 Sets/Year
Customization: Available Certification: ISO
Place Style: Vertical
Highlight:

nitrogen electric box furnace

,

OEM electric box furnace

,

OEM muffle furnace with nitrogen gas

Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Atmosphere Nitrogen
Effective Chamber Dimensions 330*200*330mm(W*H*D)
Transport Package Wooden Packaging
Specification 1300*1900*1160mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Industrial Range MBF22-10 Atmosphere Box Furnace
Applications

Primarily designed for electronic components and ceramic filters in high temperature binder burn-off and sintering processes.

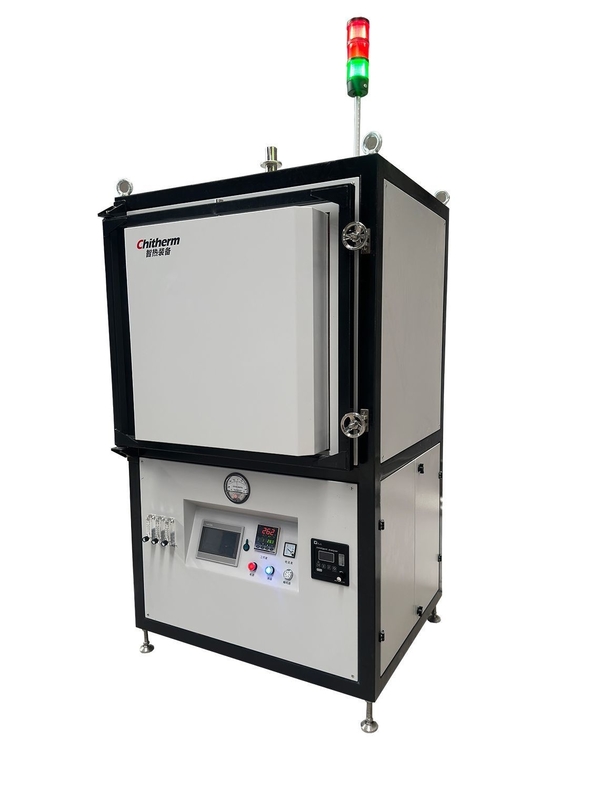

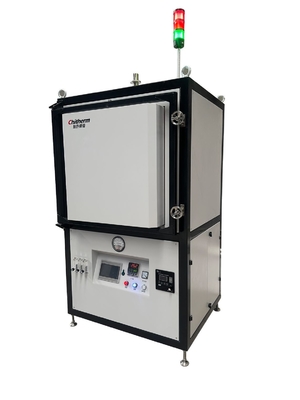

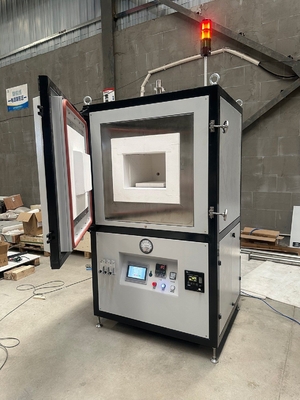

MBF22-10 Atmosphere Box Furnace Nitrogen Muffle Furnace operating at 1000°C
Technical Specifications
  • Rated Temperature: 850ºC
  • Maximum Temperature: 1000ºC
  • Effective Dimensions: 330 × 200 × 330mm (W×H×D)
  • Heating Method: Ceramic tube-encased silicon carbide rod
  • Process Atmosphere: Nitrogen
  • Temperature Control Stability: ±1ºC with PID parameter self-tuning
  • Temperature Uniformity: Better than ±3ºC
  • Thermocouple: Type N
  • Temperature Control Points: 1 point
  • Temperature Measurement Points: 1 point
  • Process Steps: 4×16 steps
  • Oxygen Content: ≤ 20ppm + gas supply oxygen content
  • Alarm System: Over-temperature and thermocouple failure protection with sound/light alarms
  • Maximum Heating Power: 12kW
  • Surface Temperature Rise: ≤ 40ºC
  • Weight: Approximately 650kg
  • Furnace Dimensions: Approximately 1300*1900*1160mm (W×H×D)
  • Appearance Color: Light gray
Delivery Contents
Item Note Quantity
Basic Compositions
Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major components 1 Set
Key Parts
Ceramic tube-encased silicon carbide rod SiC silicon carbide rod 1 Set

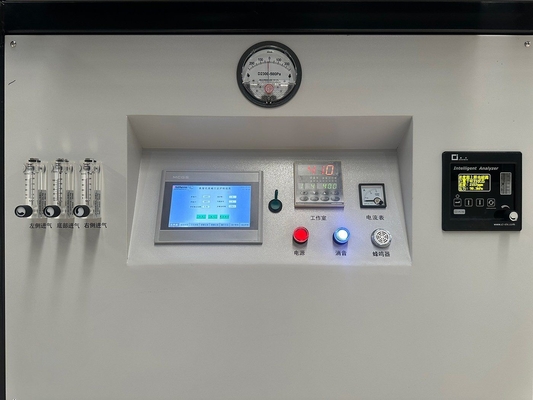

Touch Screen 1 PC
Temperature Controller Azbil 1 Set
Micro-oxygen analyzer 1 Set
Spares
Silicon carbide rod 1 PC
Facility Requirements
  • Environmental Conditions: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
  • Process Air Conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 2-5m³/h
  • Ventilation System: Non-contact access to user pumping system with capacity >10m³/h
  • Power Conditions: Capacity >16kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
  • Installation Site: Minimum 2000×2000×3000mm (W×H×D), installation area >4m²
