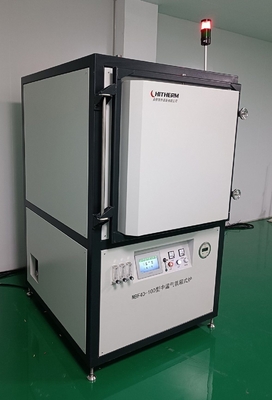

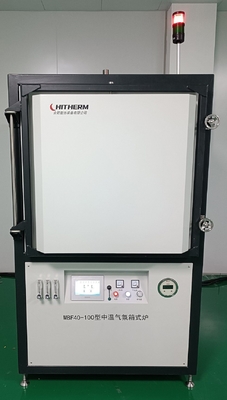

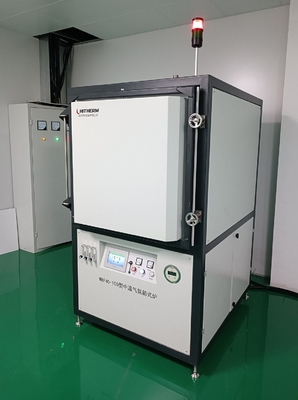

Vertical Place Style Mbf40-10o Medium Temperature Box Furnace for Melting and Heat Treatment 1150*1970*1460mm W*H*D
1.Model:MBF40-11O Medium Temperature Box Furnace
2.Application Fields: The MBF40-10O Medium Temperature Atmosphere Box Furnace utilizes silicon carbide rods inside ceramic tubes as heating elements, which are resistant to acid and alkali corrosion. The heating elements are arranged both above and below, ensuring excellent temperature uniformity within the furnace chamber. With its simple operation, this furnace is suitable for a variety of laboratory processes.
3.Product Features:1.Heating Elements: Silicon carbide rods
2.Rated temperature: 850°C, with a maximum temperature of 1100°C.
3.Furnace chamber temperature uniformity: ±5°C (at a constant temperature of 850°C).
4.Control segments: 9 segments.
5.Control points: Two control points (upper and lower) and one temperature measurement point in the middle.
6.Safety Protection:Interlock protection between heating and furnace door operation.
Audible and visual alarms for over-temperature, thermocouple breakage, and low gas pressure.
7.Surface Temperature Rise: ≤40°C.
8.Maximum Heating Power: ≤25 kW.
9.Power Requirements: Three-phase, 220/380 VAC, 50 Hz, with a capacity greater than 34 kVA, using phase-shift control.
10.Furnace Chamber Material: Inner layer made of alumina products, outer layer using ceramic fiber inorganic panels.
11.Effective Chamber Dimensions (W×H×D): 330×200×660 mm.
12.Weight: Approximately 850 kg.
1. - Furnace frame
2. - Chimney

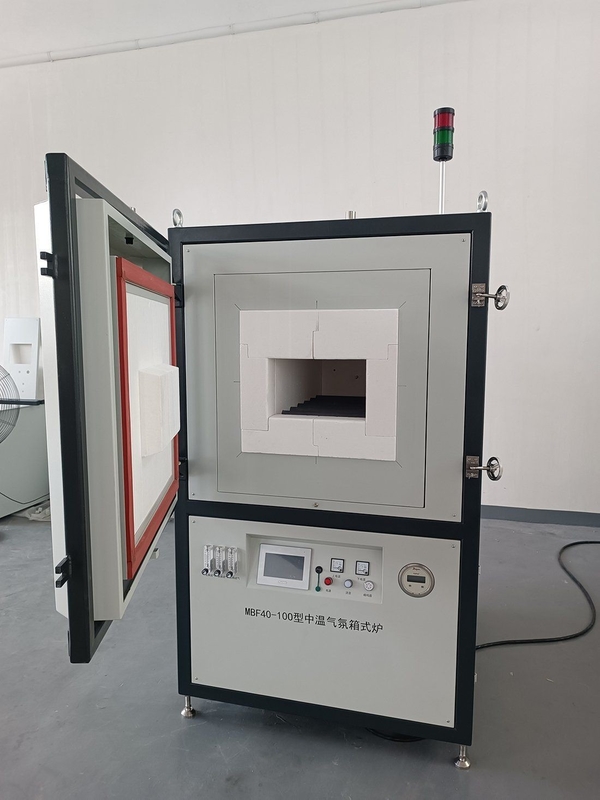

3. - Furnace chamber
4. - Furnace door

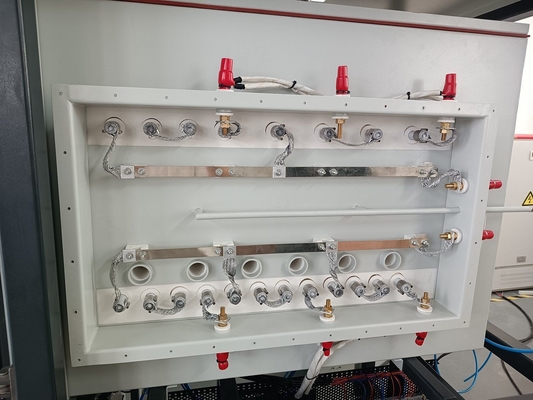

5. - Heating element
6. - Sagger (a type of ceramic container used in kilns)
7. - Roller bar (used in kilns for moving ceramics during the firing process)
| 4.Delivery List |
| | Item | Note | QTY |
| Basic Compositions | Furnace | | 1 PC |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components, etc | 1 Set |
| Key Parts | Heating Elements | ceramic tube-encased silicon carbide rod | 1 Set |

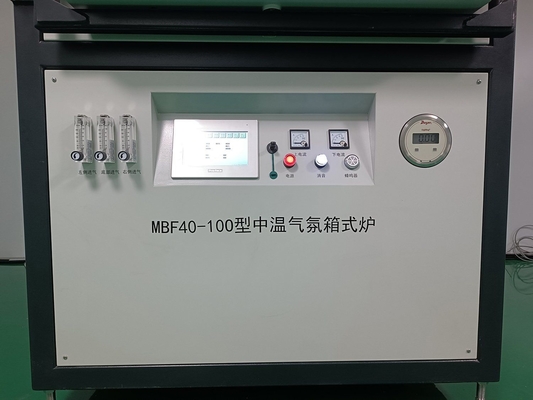

| Temperature Controller | Azbil | 1 Set |
| touch screen | | 1 Set |
| Spares | silicon carbide rod | | 1 PC |
1.Indoor Installation: The equipment must be installed indoors, with an ambient temperature range of 0°C to 40°C. The indoor environment must be free of flammable gases, corrosive gases, and steam.
2.Space Requirements:
Floor area of at least 5 square meters.
Working space length of at least 2.5 meters, width of at least 2 meters, and height of at least 3 meters.
The foundation must be sturdy and level.
3.Power Supply:
The furnace requires a dedicated three-phase, five-wire AC power supply: 380±10% V, 50±2% Hz.
Large power-consuming equipment such as welding machines, electric furnaces, and metal-cutting machines should not be connected to the same power distribution line.
4.Grounding: The equipment must be reliably grounded.
5.Gas Pressure: The inlet gas pressure should be 0.2 to 0.4 MPa.
