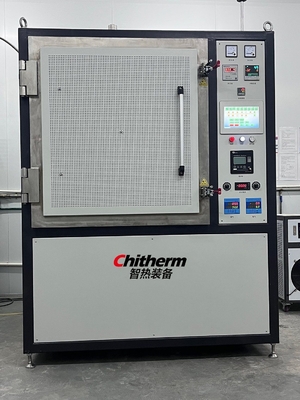

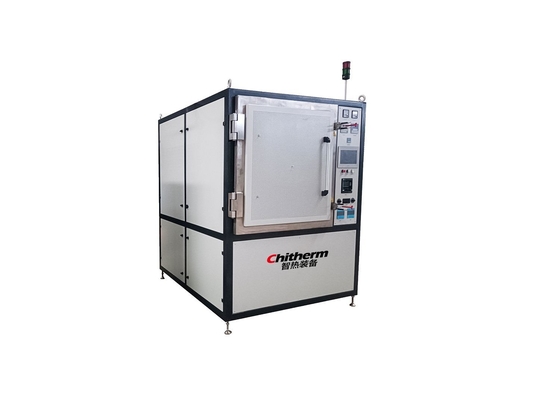

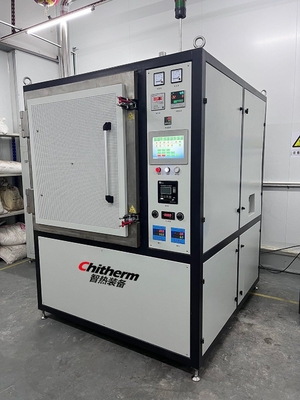

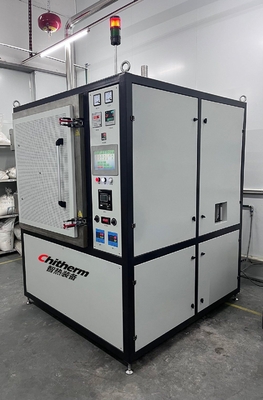

Small Industrial High Temperature Box Furnace Heat Treatment for Electronic Products

Large Image : Small Industrial High Temperature Box Furnace Heat Treatment for Electronic Products

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	SXL64 - 17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Small Industrial High Temperature Box Furnace Heat Treatment for Electronic Products

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Effective Chamber Dimensions:	400400400mm(WHD)	Atmosphere:	Nitrogen/Hydrogen
Transport Package:	Wooden Package	Specification:	120019501250mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Small High Temperature Box Furnace , Electronic High Temperature Box Furnace , Heat Treatment small industrial furnace

Sxl64 17nh Temperature Atmosphere Box Furnace for Medium-Temperature Heat Treatment of Electronic Products Customization

1. Summary:

The SXL64 - 17NH high-temperature atmosphere box furnace is suitable for medium-temperature heat treatment of electronic products, including nitrogen/air atmosphere heat treatment of electronic ceramics, dielectrics, conductors, etc. It can also perform pre-vacuuming and then fill with nitrogen for replacement to assist in purifying the furnace atmosphere. This equipment can also be conveniently used for high-temperature heat treatment of other products. The furnace is fully equipped and installed with a real-time computer monitoring system, which is especially suitable for the material process test requirements in scientific research institutes.
Sxl64 - 17nh High-Temperature Atmosphere Box Furnace for Medium-Temperature Heat Treatment of Electronic Products

2. Mainly Specifics:

Rated Temp.: 1600ºC
Max Temp.: 1650ºC

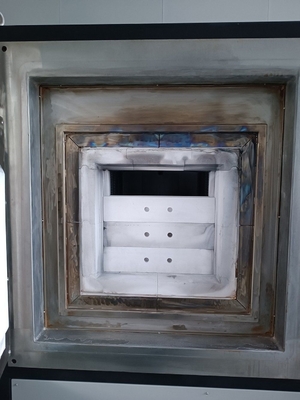

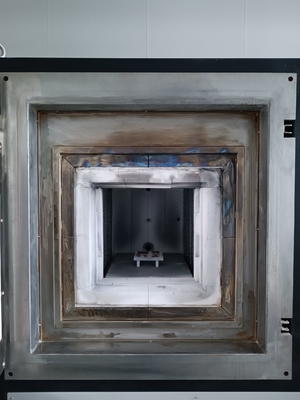

Furnace Chamber Effective Dimensions: 400×400×500 mm (W×H×D)
Heating Element: Molybdenum wire
Processing Atmosphere: Nitrogen/Hydrogen
Exhaust System: An exhaust port is installed at the top of the furnace chamber.
Cooling Method: Natural cooling along with the furnace
Controlled Temperature Zones: 1
Number of Temperature Control Points: 1 point
Number of Temperature Control Segments: 19×19 segments
Temperature Control Stability: ±1°C. Temperature control is carried out by using the Japanese DAIHUA CHINO KP1000 intelligentprogram regulator, which has the function of PID parameter self-tuning.
Temperature Uniformity: Better than ±5°C
Control Mode: Touch screen + PLC centralized control
Alarm Protection: Audible and visual alarm protection for over-temperature, broken thermocouple, etc., and it has the over-temperature alarm power-off protection function. The audible alarm uses a high-volume alarm.
Surface Temperature Rise: ≤35°C
Maximum Heating Power: 25 kW
Holding Power: ≤15 kW
Oxygen Content: ≤30 ppm + oxygen content of the gas source
Power Requirements: Capacity greater than 34 kVA, three-phase five-wire, 220/380 VAC, 50 Hz
Overall Dimensions: 1770×1570×2050 mm (D×W×H)
Appearance Color: light gray.

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	molybdenum wire		1 Set
	Dew point meter		1 PC
	Temperature Controller		1 Set
	Touch screen		1 Set
	Vacuum system		1 Set
	Oxygen Analyzer		1 Set
	Hydrogen alarm instrument		1 Set
	Water chiller		1 Set
Spares	Heating Elements	Molybdenum Coil	4 PC

4. Facility Requirements
1. Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
2. Process air conditions: nitrogen, purity 99.999%, air source pressure 0.2 - 0.4Mpa, gas
consumption 3 - 6m³ /h; Hydrogen, purity 99.99%, gas source pressure not less than 0.1Mpa, gas consumption is 3 - 6m³ /h;
3. Power air source conditions: clean, dry, oil-free compressed air, pressure 0.4 - 0.8Mpa;
4. Water Inlet condition: 0.1 - 0.3Mpa, clean, no corrosion, supply flow 2 - 5L/min;
5. Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 1.5m³ /h;
6. Ground requirements: level, no obvious vibration, bearing capacity > 200Kg/m².
7. Power conditions: capacity greater than 34kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
8. Installation site: 2500mm×3000mm×2500mm (W×H×D), installation area greater than 5m2.
Sxl64 - 17nh High-Temperature Atmosphere Box Furnace for Medium-Temperature Heat Treatment of Electronic Products
