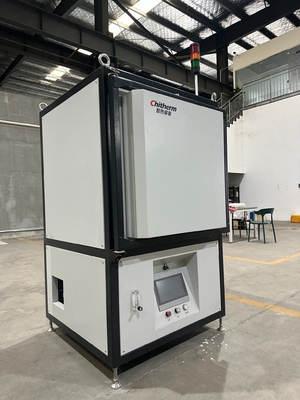

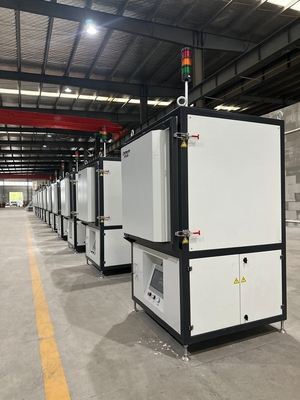

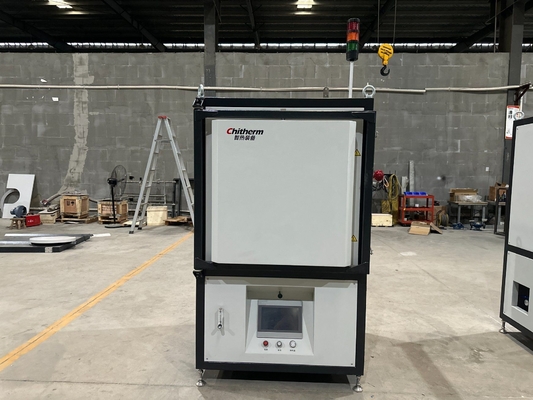

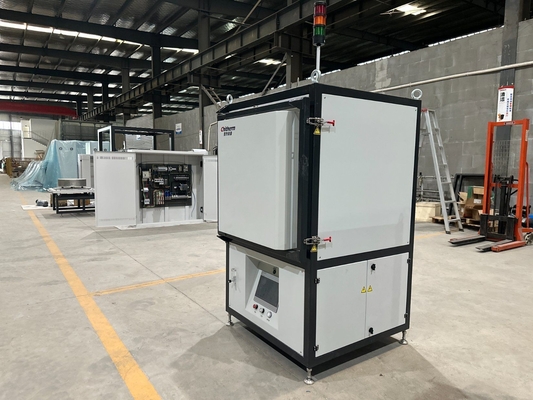

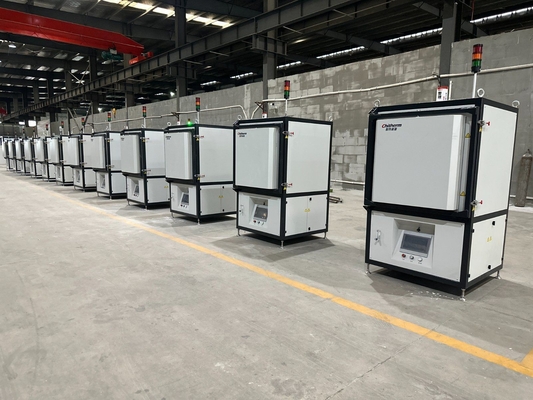

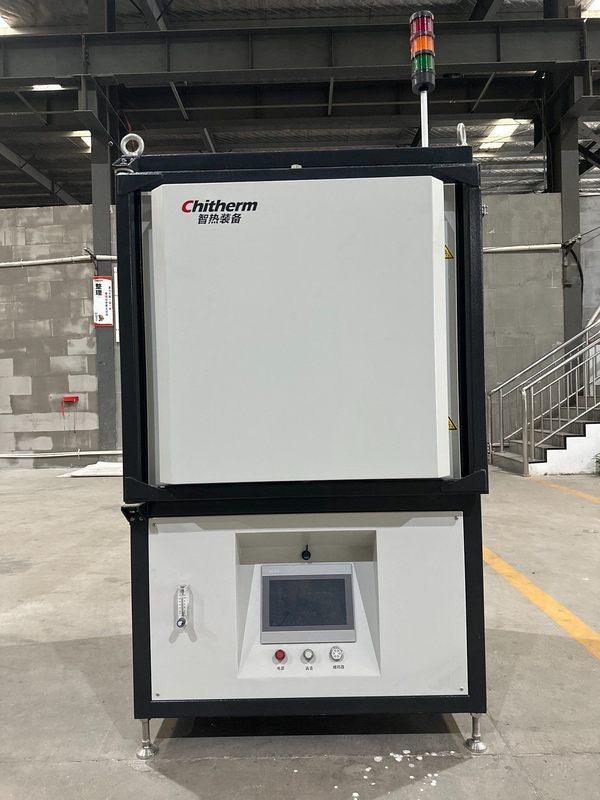

Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting

Large Image : Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MNF100-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air/O2	Effective Chamber Dimensions:	450450500mm(WHD)
Transport Package:	Wooden Packaging	Specification:	99016801095mm
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Industrial rta furnace , 1000 Ordm rta furnace , 1000 Ordm rapid thermal annealing furnace

Electric Holding Furnace 1000 ordm C Mnf100-10 Cleanliness Box Melting Industrial Furnace for Electric Industrial Processes

Equipment Name and Model:
MBF100-10 Type Medium-Temperature Clean Box Furnace
Application Fields:
Mainly used for high-temperature heat treatment processes of similar products such as electronic devices and electronic ceramics.

Technical Specifications and Basic Configuration
3.1 Rated Temperature: 900°C;
3.2 Maximum Temperature: 1000°C;
3.3 Inner Lining Material: Fused Quartz;
3.4 Effective Dimensions: 450 × 450 × 500mm (W × H × D);
3.5 Heating Rate: ≤10°C/min;
3.6 Heating Elements: FEC ceramic fiber heating plates, heating from all four sides;
3.7 Temperature Stability: ±1°C, with PID parameter self-tuning function;
3.8 Temperature Uniformity: ±5°C (tested with an empty furnace at constant temperature of 900°C);
3.9 Thermocouple Type: K-type;
3.10 Number of Temperature Control Points: 1 point;
3.11 Number of Temperature Control Segments: 9 segments;
3.12 Exhaust Chimney: Equipped with an exhaust port at the rear, which can be manually adjusted;
3.13 Inlet Design: Allows the introduction of dry, clean, oil-free compressed air or oxygen into the furnace chamber, with the inlet flow controlled by a glass rotameter, measuring range 10-100LPM;
3.14 Alarm Protection: Over-temperature, open circuit, etc., with audible and visual alarm protection, and over-temperature alarm power-off protection function;
3.15 Maximum Heating Power: 16 kW;
3.16 Typical Insulation Power for an Empty Furnace: ≤8 kW;
3.17 Surface Temperature Rise: <35°C;
3.18 Equipment Weight: Approximately 450 Kg;
3.19 Equipment Exterior Color: Light Grey;
3.20 Reference External Dimensions: 990 × 1680 × 1095mm (W × H × D).

Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 unit
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Touch screen		1 PC
	Temperature Controller		1 Set
	FEC Heater		1 Set
	Quartz Liner		1 Set
Spares	SSR		1 PC

Facility Requirements

4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m².
4.3 Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.4 Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m².
1000º C Mnf100-10 Cleanliness Box Furnace Industrial Furnace Melting Furnace
