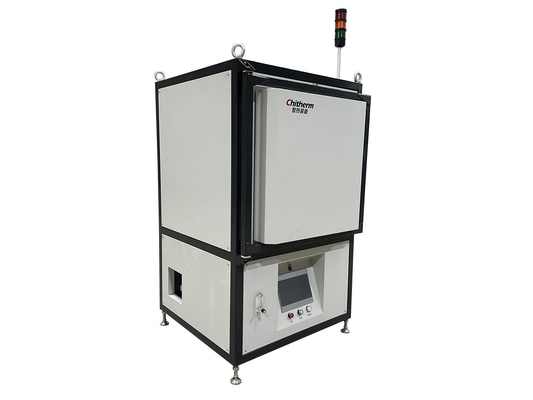

Electric Furnace 1000 ordm C Mbf100-10 Medium-Temperature Clean Box Furnace Melting Furnace for Temperature Applications

Large Image : Electric Furnace 1000 ordm C Mbf100-10 Medium-Temperature Clean Box Furnace Melting Furnace for Temperature Applications

Product Details:

Place of Origin:	China
Brand Name:	Chitherm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Electric Furnace 1000 ordm C Mbf100-10 Medium-Temperature Clean Box Furnace Melting Furnace for Temperature Applications

Description

Model NO.:	MBF100-10	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air/O2
Effective Chamber Dimensions:	450450500mm(WHD)	Transport Package:	Wooden Packaging
Specification:	99016801095mm	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	1000 ordm ceramic sintering furnace , 1000 ordm high temperature box furnace , vertical ceramic sintering furnace

1. Overview:

The MBF100-10 medium-temperature clean box furnace uses FEC ceramic fiber heating plates, which are resistant to acid and alkali, have good uniformity, and are simple to operate. It is suitable for various laboratories and small batch production processes.

2. Performance Parameters

Product Model: MBF100-10 Medium-Temperature Clean Box Furnace
Operating Temperature: 900°C
Maximum Test Temperature: 1000°C
Furnace Chamber Effective Dimensions: 450 × 450 × 500 (W × H × D)
Inner Lining Material: Fused Quartz
Heating Elements: FEC Ceramic Fiber Heating Plates
Temperature Stability: ±1°C
Furnace Chamber Temperature Uniformity: ±5°C
Number of Temperature Control Segments: 9 segments
Number of Temperature Control Points: 1 point
Alarm Protection: Interlock between heating and furnace door operation, audible and visual alarms for over-temperature, open circuit, and low pressure
Surface Temperature Rise: <35°C
Maximum Heating Power: 22 kW
Power Requirements: Three-phase, 380VAC, 50Hz, 30 kVA, zero-crossing control
Equipment Weight: 500 Kg
Installation Dimensions: 1800mm × 1850mm × 3000mm (D × W × H)

Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 unit
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Touch screen		1 PC
	Temperature Controller		1 Set
	FEC Heater		1 Set
	Quartz Liner		1 Set
Spares	SSR		1 PC

Facility Requirements

4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Gas Source Conditions:Clean, dry, oil-free compressed air or oxygen, working pressure 0.2 to 0.4 MPa, gas consumption approximately 3 to 6 m³/h;
4.3 Ventilation System:Non-contact connection to the user's extraction system, with an extraction capacity greater than 10 m³/h.
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m².
4.5 Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m².
