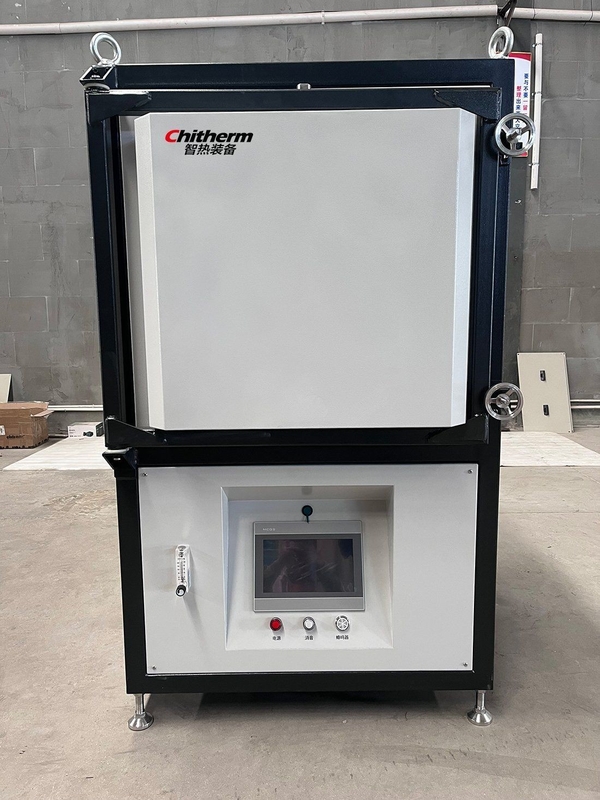

Labratory Electric High Temperature Box Furnace 900Ordm C For Melting

Vertical Place Style Electric Holding Furnace 900 ordm C Mbf60-10 Melting Labratory Furnace

 Application Fields:

Mainly used for high-temperature heat treatment processes of similar products such as electronic devices and electronic ceramics.
The use of FEC (Fiberglass Epoxy Composite) ceramic fiber heating plates provides resistance to acids and alkalis, excellent uniformity, and simple operation. It is suitable for use in various laboratories and small batch production processes.

Technical Specifications and Basic Configuration

1. Rated Temperature: 900°C;
2. Maximum Temperature: 1000°C;
3. Inner Lining Material: Fused Quartz;
4. Effective Dimensions: 350 ×300 × 550mm (W × H × D);
5. Heating Rate: ≤10°C/min;
6. Heating Elements: FEC ceramic fiber heating plates, heating from all four sides;

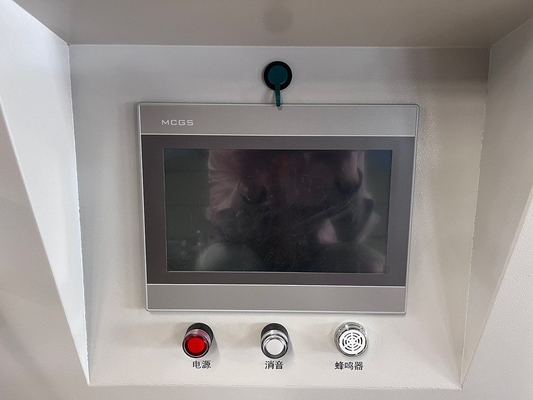

7. Temperature Stability: ±1°C, with PID parameter self-tuning function;
8. Temperature Uniformity: ±5°C (tested with an empty furnace at constant temperature of 900°C);
9. Thermocouple Type: K-type;
10. Number of Temperature Control Points: 1 point;
11. Number of Temperature Control Segments: 9 segments;

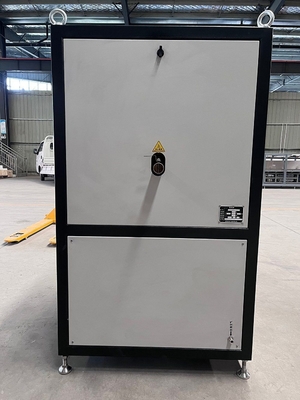

12. Exhaust Chimney: Equipped with an exhaust port at the rear, which can be manually adjusted;
13. Inlet Design: Allows the introduction of dry, clean, oil-free compressed air or oxygen into the furnace chamber, with the inlet flow controlled by a glass rotameter, measuring range 10-100LPM;
14. Alarm Protection: Over-temperature, open circuit, etc., with audible and visual alarm protection, and over-temperature alarm power-off protection function;
15. Maximum Heating Power: 16 kW;
16 .Typical Insulation Power for an Empty Furnace: ≤8 kW;
17 .Surface Temperature Rise: <35°C;
