1100Ordm C Industrial Sintering Furnace Inert Atmosphere 380V 50Hz

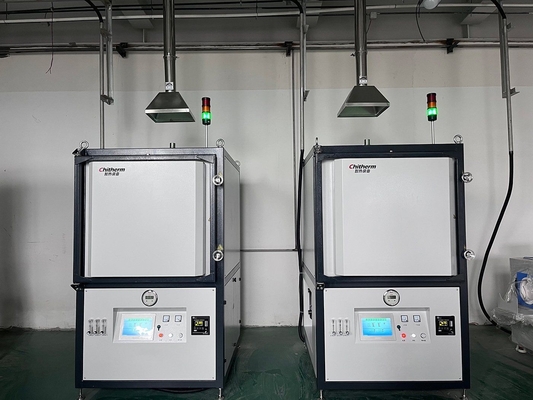

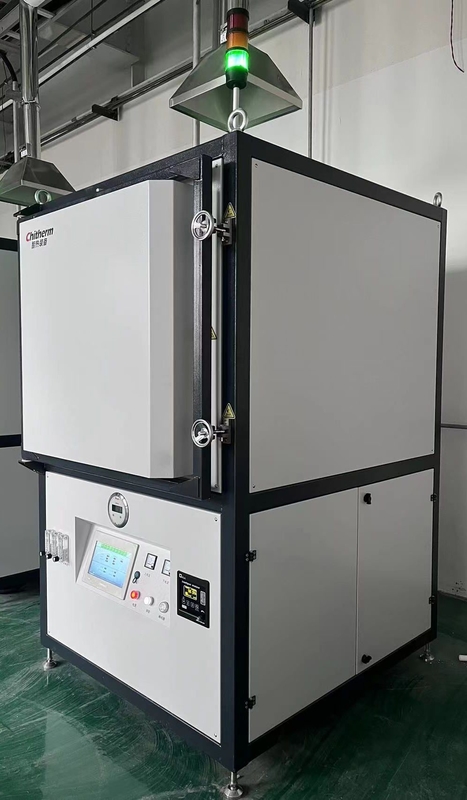

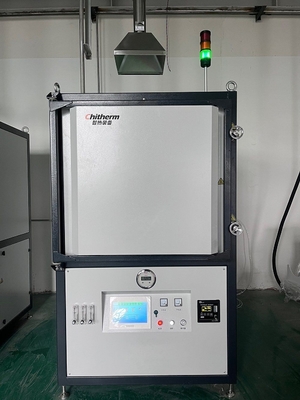

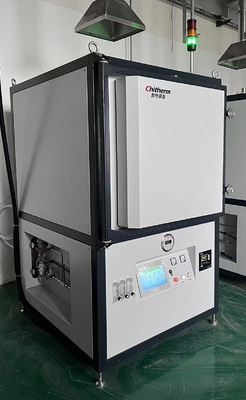

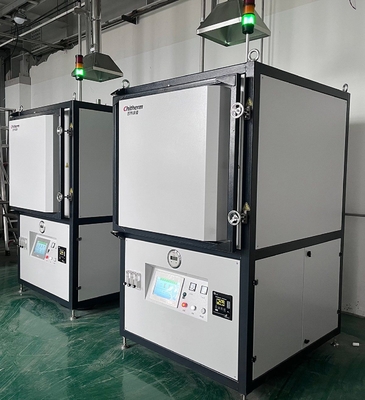

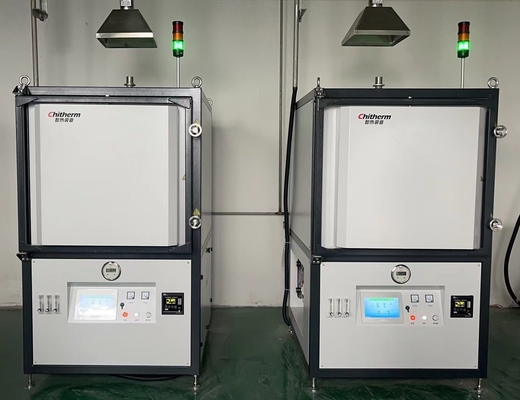

Large Image : 1100Ordm C Industrial Sintering Furnace Inert Atmosphere 380V 50Hz

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF40-11N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

1100Ordm C Industrial Sintering Furnace Inert Atmosphere 380V 50Hz

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air/Nitrogen	Effective Chamber Dimensions:	330200660mm(WHD)
Thermocouple Type:	N	Transport Package:	Wooden Packaging
Specification:	115019701460mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	1100Ordm industrial sintering furnace , 380V 50Hz industrial sintering furnace , 1100Ordm inert atmosphere furnace

1100 ordm C Mbf40-11n Type Intelligent Box-Type Temperature Furnace with Effective Chamber Dimensions of 330*200*660mm W*H*D

1. Applications:

The MBF40-11N intelligent box-type high-temperature furnace uses silicon-carbide rods inserted into ceramic tubes as heating elements, which are resistant to acid and alkali corrosion. The heating elements are arranged both above and below, providing excellent temperature uniformity within the furnace chamber. The operation is simple and suitable for various laboratory processes.

2. Mainly Specifics:

Product Model: MBF40-11N Intelligent Box-Type High-Temperature Furnace
Rated Temperature: 800-1000°C
Maximum Temperature: 1100°C
Effective Dimensions (W×H×D): 330 × 200 × 660
Furnace Chamber Material: Inner layer made of alumina products, outer layer uses ceramic fiber inorganic standard board
Heating Elements: Silicon carbide rods inserted into ceramic tubes
Furnace Chamber Temperature Uniformity: ±5°C (at constant temperature of 800°C)
Number of Temperature Control Segments: 9 segments
Number of Temperature Control Points: Upper and lower two points for temperature control, one intermediate point for temperature measurement
Alarm Protection: Interlock between heating and furnace door operation, audible and visual alarms for over-temperature, open circuit, and low pressure
Surface Temperature Rise: ≤40°C
Maximum Heating Power: ≤25 kW
Power Requirements: Three-phase, 220/380VAC, 50Hz, greater than 35 kVA, phase-shifting control

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 Unit
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	ceramic tube-encased silicon carbide rod	1 Set
	Temperature Controller	Azbil	1 Set
	Vacuum system
	touch screen		1 Set
Spares	silicon carbide rod		2 PC

4. Facility Requirements
1 .Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
2 .Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 4 - 12m³ /h.
3 .Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4 .Power conditions: capacity greater than 35kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
5 .Installation site: 2500mm×2000mm×3000mm (W×H×D), installation area greater than 5m².

1100º C Mbf40-11n Type Intelligent Box-Type High-Temperature Furnace Sintering Furnace
