700 ordm C Sxf030 07 Type Glue Discharging Box Type Electric Furnace Air Atmosphere Atmosphere Certified by ISO ISO Certified

1.Overview:

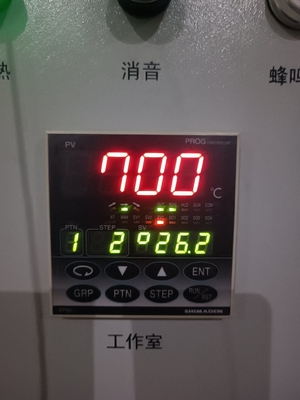

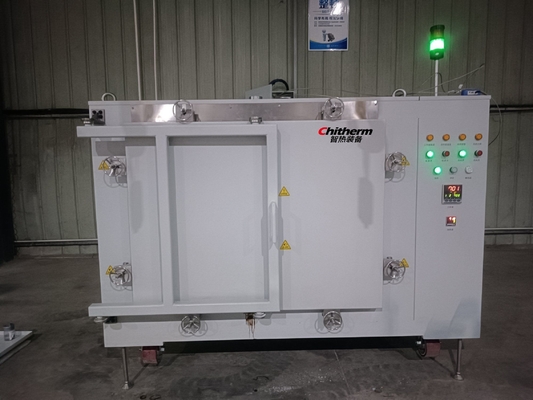

The SXF030-07 type glue-discharging box furnace is mainly designed for drying, degumming, curing and other processes of electronic ceramics, glass, electronic components and other electronic products. It can also be used for heat treatment processes of other products. The equipment adopts a fully stainless steel furnace structure, with stainless steel heating tubes heating evenly from both sides of the furnace chamber. An internal centrifugal fan performs hot air stirring, horizontal air movement, and centrifugal air supply. The whole furnace is insulated with fiber material, and an imported single-loop intelligent temperature controller is used for control.

2.Performance Parameters
Product Model: SXF030-07 type
Operating Temperature: RT to 700°C
Effective Furnace Size: 600×600×9000 (W×H×D) mm
Furnace Material: SUS310S Stainless Steel
Heating Element: Stainless Steel Heating Tube
Temperature Uniformity in Furnace: ±6°C (at 600°C platform)
Temperature Control Sections: 4×10 sections
Control Points: 1 point
Detection Points: 1 point
Alarm Protection: Over-temperature, open circuit, fan overload, etc., with audible and visual alarms and protection
Surface Temperature Rise: ≤30°C
Maximum Heating Power: About 45Kw;
Typical Insulation Power for Empty Furnace: ≤22Kw
Power Supply: Three-phase, 380VAC, 50Hz, 60KVA
Weight: About 1500Kg
External Dimensions: About 1954×1800×2090 (W×D×H)
