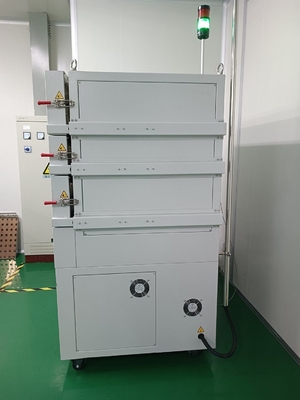

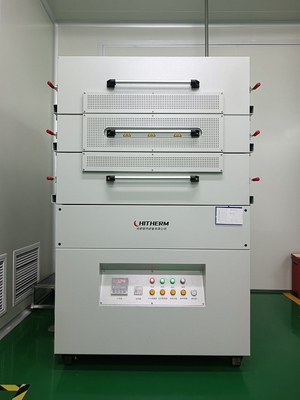

Small Industrial Atmosphere Furnace For Semiconductors Drying Curing Degreasing

Large Image : Small Industrial Atmosphere Furnace For Semiconductors Drying Curing Degreasing

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF180-05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Small Industrial Atmosphere Furnace For Semiconductors Drying Curing Degreasing

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Drying	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	600500600mm(WDH)
Transport Package:	Wooden Packaging	Specification:	111010501820mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Degreasing atmosphere furnace , Semiconductors atmosphere furnace , Atmosphere small industrial furnace

Electric Fuel Drying Curing or Degreasing for Semiconductors Electronic Components or Materials in 600*500*600mm Chamber

1. Overview
The HRF180-05 Rapid Annealing Furnace is primarily designed for processes such as drying, curing, or degreasing of semiconductors, electronic components, or materials. The equipment features a specially designed cage-type heating element, a centrifugal fan for air circulation, a double-layer stainless steel structure, full fiber insulation, and an imported single-loop intelligent temperature controller.

2. Performance Parameters
Model: HRF180-05
Operating Temperature Range: RT~400ºC
Maximum Temperature: 450ºC
Effective Chamber Size: 600×500×600 (W×D×H) mm
Hot Air Circulation System: Specially designed stainless steel high-pressure multi-wing fan, centrifugal air delivery, horizontal air flow
No-load Heating Rate: ≤5ºC/min
Exhaust Vent: 1
Door Opening Style: Left-opening

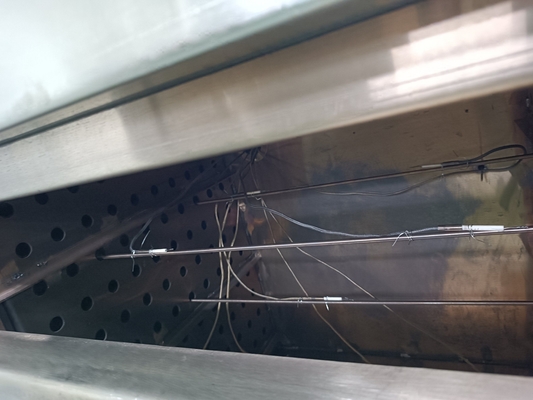

Heating Element: Specially designed cage-type heater
Thermocouple Type: K-type
Control Stability: ±1ºC

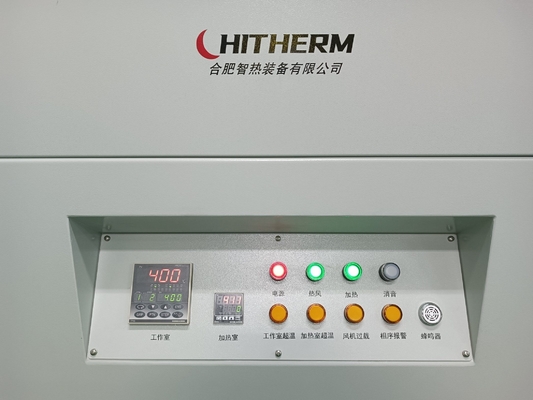

Temperature Control Points: Single point, controlled by a Japanese Shimaden intelligent programmable temperature controller with PID auto-tuning function, 4×10 segment curves
Temperature Uniformity: Better than ±5ºC

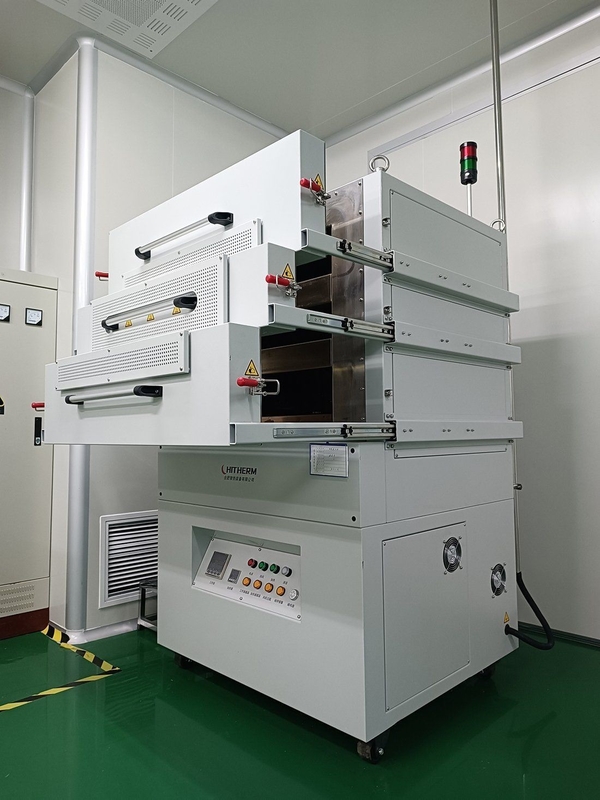

Loading Device: 3 stainless steel trays
Alarm and Protection: Over-temperature, thermocouple breakage, and other audible and visual alarms; interlock between heating and fan; independent temperature-sensing over-temperature protection for the heating chamber; motor phase loss protection; over-current protection; dual-color alarm indicator
Ambient Temperature: 0ºC~40ºC
Ambient Humidity: 0~50%RH
Surface Temperature Rise: ≤35ºC
Maximum Heating Power: 12kW
Power Supply: Three-phase, 380VAC, 50Hz
Overall Dimensions: 1110mm×995mm×1818mm (W×D×H)

3. Delivery List

	Item	Note	Qty.
Basic Components	Furnace		1 unit
	inspection certificate	Certificate of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Heating Element		1 SET
	Temperature Controller		1 SET
	Circulation Fan		1 SET
Spare Parts	SSR		1 pcs
Spare Parts	Heating wire		1 PC

4. Normal Operating Conditions
1.Environmental Conditions: Temperature 0 to 40°C, humidity ≤80% RH, no corrosive gases, no strong air disturbance;
2. Ventilation System: Non-contact connection to the user's extraction system, with an extraction capacity greater than 5 m³/h;
3. Floor Requirements: Level, no significant vibration, load-bearing capacity >200 Kg/m²;
4. Power Requirements: Capacity greater than 16 kVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz. Live wires: Yellow, Green, Red; Neutral wire: Blue; Earth wire: Green/Yellow;
5. Installation Site: 2000mm × 1800mm × 3000mm (W × D × H), installation area should be greater than 4m².

for Drying, Curing, or Degreasing of Semiconductors, Electronic Components, or Materials
