Electric Sintering Furnace Chitherm 1500 ordm C Hbf105-14 with Effective Chamber Dimensions 400330800mm and Electric Fuel

Large Image : Electric Sintering Furnace Chitherm 1500 ordm C Hbf105-14 with Effective Chamber Dimensions 400*330*800mm and Electric Fuel

Product Details:

Place of Origin:	China
Brand Name:	Chitherm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Electric Sintering Furnace Chitherm 1500 ordm C Hbf105-14 with Effective Chamber Dimensions 400330800mm and Electric Fuel

Description

Model NO.:	HBF105-14	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Steel Molding
Fuel:	Electric	Effective Chamber Dimensions:	400330800mm(WHD)
Setter Plate:	Corundum-Mullite	Transport Package:	Wooden Package
Specification:	8509001200mm (WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	sintering high temperature box furnace , electric fuel ceramic sintering furnace , electric fuel high temperature box furnace

Electric Sintering Furnace Chitherm 1500°C HBF105-14 with Effective Chamber Dimensions 400×330×800mm

Product Specifications

Model NO.	HBF105-14
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Effective Chamber Dimensions	400×330×800mm (W×H×D)
Setter Plate	Corundum-Mullite
Transport Package	Wooden Package
Specification	850×900×1200mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Technical Specifications

Equipment Name and Model

HBF105-14 Sintering Furnace

Key Technical Indicators

Rated Temperature: 1300°C
Maximum Temperature: 1500°C
Effective Dimensions: 400×330×800mm (Width×Height×Depth)
Supporting Device: Corundum-mullite supporting and firing plate
Detection Method: Reserved installation holes for thermocouples and temperature monitoring
Refractory Materials: Polycrystalline mullite inner layer with ceramic fiber board insulation
External Dimensions: 850×900×1200mm (Width×Height×Depth)
External Color: Light gray

Construction Details

The furnace consists of three main components: furnace body, furnace chamber, and trolley. The entire furnace body is assembled from welded profiles with high-temperature plastic spray coating. The hanging plate is constructed from high-quality sheet metal with the same protective coating.

Product Images

Chitherm 1500°C HBF105-14 Sintering Furnace structure diagram

Figure 1: Equipment Structure Diagram

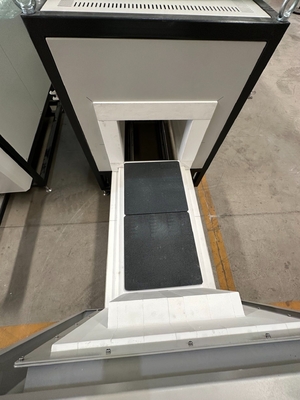

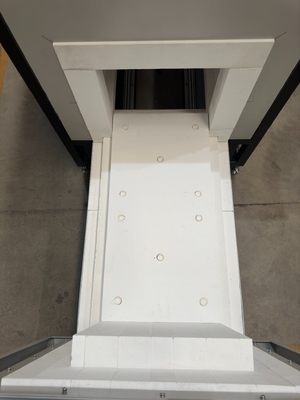

Chitherm 1500°C HBF105-14 Sintering Furnace detailed view

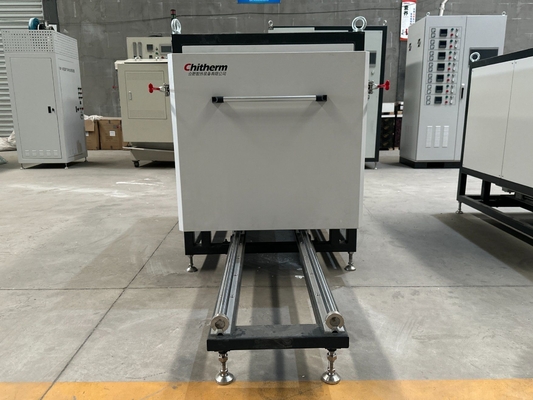

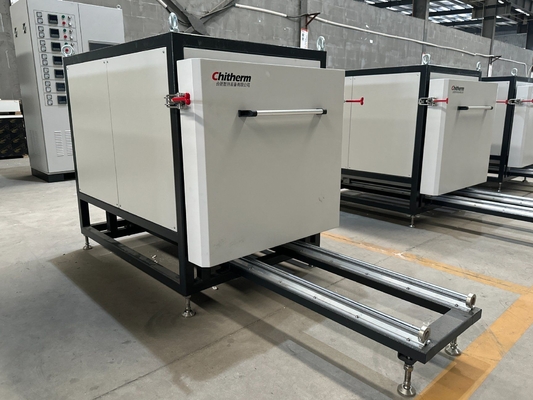

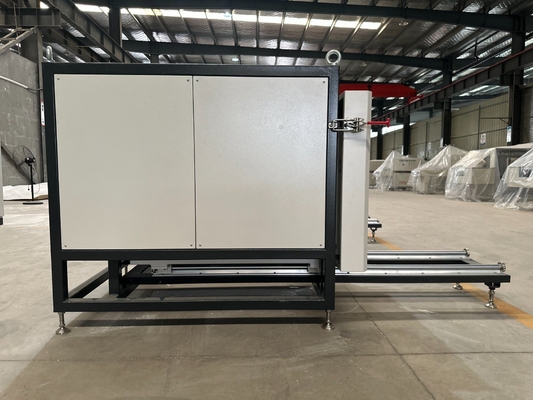

Chitherm 1500°C HBF105-14 Sintering Furnace operational view
