OEM Inert Atmosphere High Temperature Box Furnace For Steel Molding Melting 1300 Ordm C

Large Image : OEM Inert Atmosphere High Temperature Box Furnace For Steel Molding Melting 1300 Ordm C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300-13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

OEM Inert Atmosphere High Temperature Box Furnace For Steel Molding Melting 1300 Ordm C

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Effective Chamber Dimensions:	560780700mm(WHD)	Atmosphere:	Air
Transport Package:	Wooden Package	Specification:	157020501830mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	OEM High Temperature Box Furnace , 1300Ordm C High Temperature Box Furnace , 1300Ordm C inert atmosphere furnace

Temperature Box Electric Furnace for Melting Furnace 1300 ordm C Hbf300-13 in Steel Molding and Industrial Applications

Overview

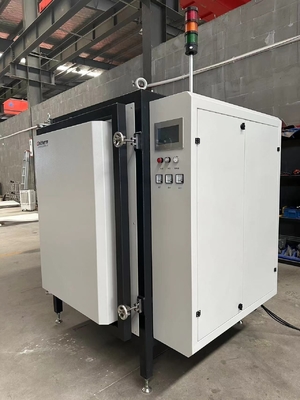

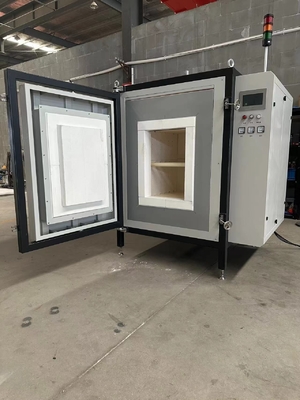

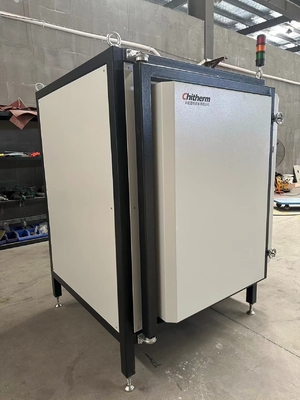

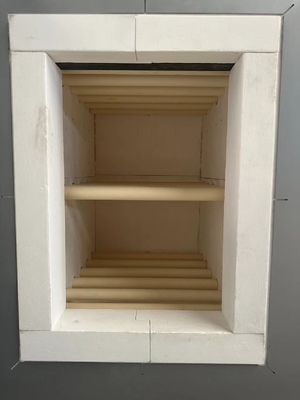

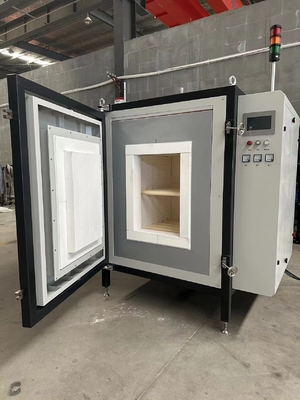

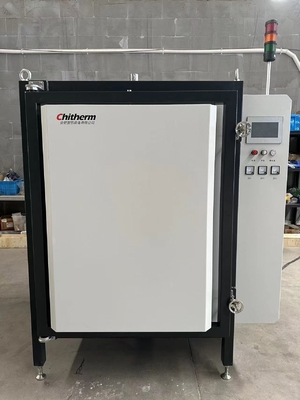

The HBF300-13 high-temperature box furnace uses silicon carbide rods inserted in ceramic tubes as heating elements. The heating elements are arranged in the upper, middle, and lower sections, ensuring uniform temperature distribution in the furnace chamber. It is easy to operate and suitable for various laboratory processes.

Specifications

Model: HBF300-13 High-Temperature Box Furnace
External Dimensions: 1540×1800×1380mm (W×H×D)
Chamber Dimensions: 560×780×700mm (W×H×D)
Effective Dimensions: 400×600×550mm (W×H×D)
Rated Temperature: 1250ºC
Maximum Temperature: 1300ºC
Heating Elements: Silicon carbide rods in ceramic tubes
Number of Heating Zones: 3
Maximum Heating Power: ≤70kW
Applicable Atmosphere: Air
Cooling Method: Natural cooling with the furnace
Power Supply: Greater than 90kVA, three-phase five-wire 220V/380V, 50Hz
Cooling Method: Forced cooling with a blower

Melting Furnace 1300º C Hbf300-13 High-Temperature Box Furnace Electric Furnace Equipment Handover Checklist

Table 1 - Delivery Overview
	Name	Main Content	Quantity
Primary Configuration	Kiln Main Unit	The core equipment of the industrial electric kiln	1 Unit
	Certification of Inspection	Documentation certifying the conformity of components	1 Set
	Technical Documentation	Manuals and technical files accompanying major purchased components	1 Set
Key Components	Ceramic Tube for Silicon Carbide Rod	Protective tube for the heating element	1 Set
	Firing Plate or Burner Plate	Component for supporting and firing materials	1 Set
	Temperature Control Module (Yamatake or Equivalent)	Precision temperature control system	1 Unit
	Thermocouple (Type S)	Temperature sensor with S-type calibration	3 Pieces
	Touchscreen Interface	HMI (Human-Machine Interface) for kiln control	1 Unit
	Programmable Logic Controller (Siemens)	Automation control system	1 Unit
	Power Regulator (Taiwan Techsil)	Device for adjusting power output	1 Set
	Blower Fan	Component for air circulation or forced convection	1 Unit
Spare Parts	Silicon Carbide Rod	Heating element for the kiln	2 Rods

Equipment Installation and Usage Conditions

The equipment must be installed indoors, with an ambient temperature of 0ºC to 40ºC. The indoor environment should be free of flammable gases, corrosive gases, and steam.
The equipment requires a floor area of at least 5 square meters, with a working space length of at least 2.5 meters, width of at least 2 meters, and height of at least 3 meters. The foundation should be solid and level, and the furnace weighs approximately 850kg.
The power supply for the furnace must be a three-phase five-wire AC power line, 380±10%V, 50±2%Hz. This power line should be dedicated, and large power conversion equipment such as welding machines, electric furnaces, and metal cutting machines should not be connected to the same distribution.
The equipment must be reliably grounded.
The equipment's intake pressure should be 0.2 to 0.4Mpa.
