1500 Ordm C Electric Controlled Atmosphere Furnace For Temperature Heat Treatment

Overview
The HBF105-14 Type Sintering Furnace uses silicon molybdenum rods, which are resistant to acids and alkalis, with good uniformity and simple operation. It is suitable for various laboratories and small-batch production processes.

Main Parameters

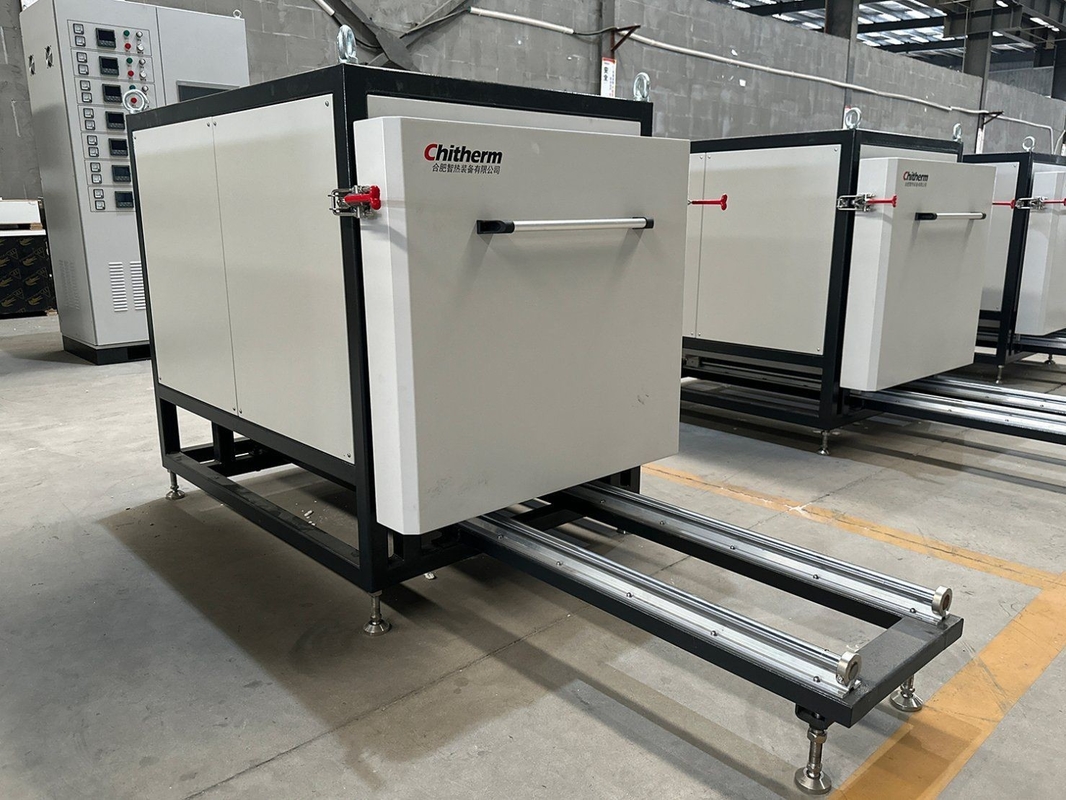

Product Model: HBF105-14 Type Sintering Furnace
External Dimensions: 850 * 900 * 1200mm (W×H×D)

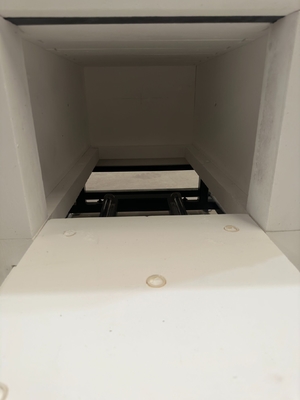

Effective Chamber Size: 400 * 330 * 800mm (W×H×D)
Rated Temperature: 1300ºC
Maximum Temperature: 1500ºC
Heating Element: Silicon Molybdenum Rod
Number of Heating Zones: 1
Maximum Heating Power: 23kW
Cooling Method: Natural Cooling with the Furnace
Heating Rate: ≤10ºC/min
Power Supply: Capacity greater than 30kVA, three-phase five-wire 220/380V, 50Hz

Installation and Usage Conditions

1. The equipment must be installed indoors, with an ambient temperature of -10ºC to 45ºC. The indoor environment should be free of flammable gases, corrosive gases, and steam.
2. The equipment requires a floor area of no less than 4 square meters, with a working space length of no less than 2 meters, width of no less than 2 meters, and height of no less than 3 meters. The foundation should be sturdy and level, with the furnace weighing approximately 400kg.
3. The power supply for this furnace must be a three-phase five-wire AC power line, 380±10%V, 50±2%Hz. This power line should be dedicated, and large power conversion equipment such as welding machines, electric furnaces, and metal cutting machines should not be connected to this distribution.
4. The equipment must be reliably grounded.
