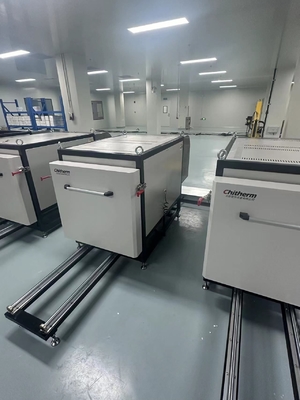

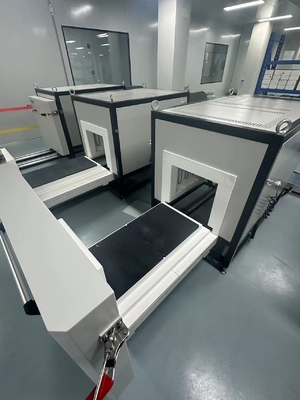

Electric Holding Furnace Setter Plate Corundum-Mullite Intermittent Furnace Product Hbf105-14 Type Car Bottom Furnace

Overview
The HBF105-14 Type Sintering Furnace uses silicon molybdenum rods, which are resistant to acids and alkalis, with good uniformity and simple operation. It is suitable for various laboratories and small-batch production processes.

Main Parameters
Product Model: HBF105-14 Type Sintering Furnace
Usage Temperature: 1300ºC
Maximum Test Temperature: 1500ºC
Effective Chamber Size: 400 * 330 * 800mm (W×H×D)

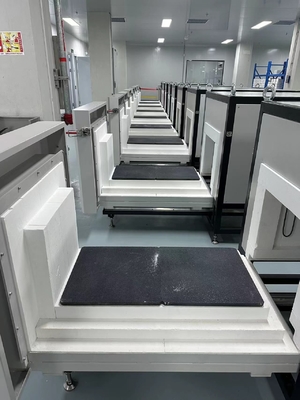

Loading Device: Corundum Mullite Loading Plate
Heating Element: Silicon Molybdenum Rod
Temperature Control Stability: ±1
Chamber Temperature Uniformity: ±5ºC
Number of Temperature Control Segments: 40 segments
Number of Temperature Control Points: 1 point

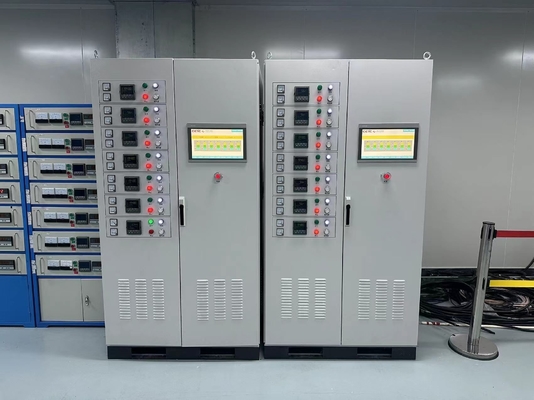

Alarm Protection: Interlock between heating and furnace door operation, over-temperature, thermocouple break, and low-pressure audible and visual alarms
Surface Temperature Rise: <35ºC
Maximum Heating Power: 23kW
Power Requirements: Three-phase, 380VAC, 50Hz, 30kVA
Equipment Weight: 500Kg
Installation Dimensions: 800 * 900 * 1200mm (D×W×H)

Installation and Usage Conditions

1. The equipment must be installed indoors, with an ambient temperature of -10ºC to 45ºC. The indoor environment should be free of flammable gases, corrosive gases, and steam.
2. The equipment requires a floor area of no less than 4 square meters, with a working space length of no less than 2 meters, width of no less than 2 meters, and height of no less than 3 meters. The foundation should be sturdy and level, with the furnace weighing approximately 400kg.
3. The power supply for this furnace must be a three-phase five-wire AC power line, 380±10%V, 50±2%Hz. This power line should be dedicated, and large power conversion equipment such as welding machines, electric furnaces, and metal cutting machines should not be connected to this distribution.
4. The equipment must be reliably grounded.
