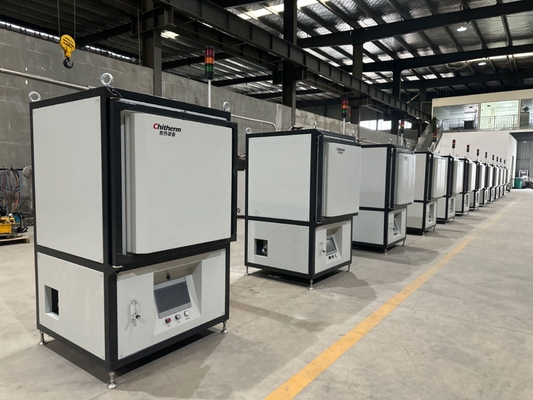

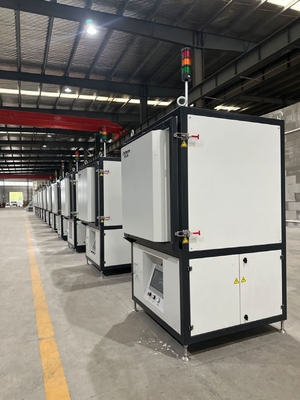

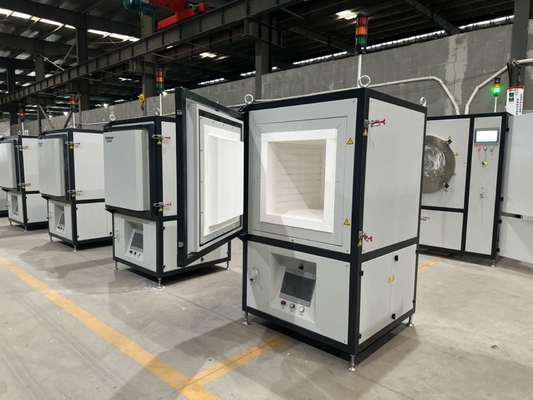

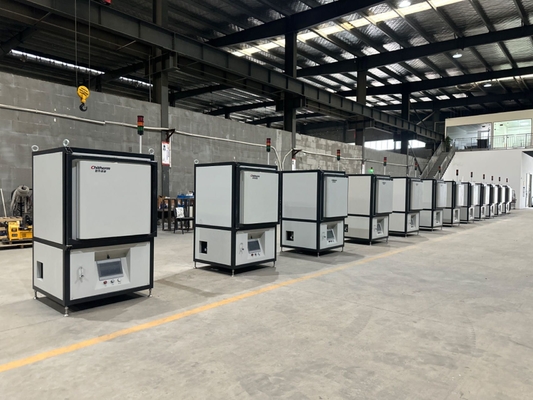

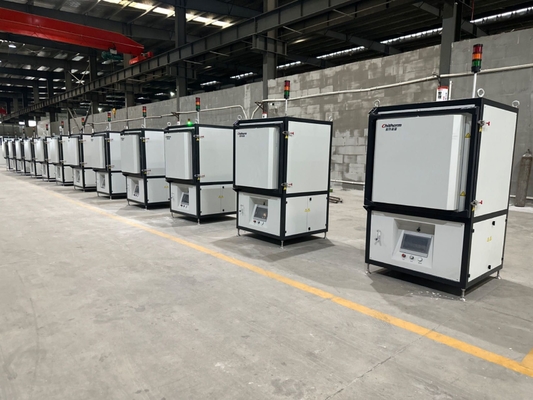

Ceramic Sintering Electric Medium-Temperature Clean Chamber Furnace Mbf100-10 with Medium-Temperature Chamber

Large Image : Ceramic Sintering Electric Medium-Temperature Clean Chamber Furnace Mbf100-10 with Medium-Temperature Chamber

Product Details:

Place of Origin:	China
Brand Name:	Chitherm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Ceramic Sintering Electric Medium-Temperature Clean Chamber Furnace Mbf100-10 with Medium-Temperature Chamber

Description

Model NO.:	MBF100-10	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air/O2
Effective Chamber Dimensions:	450450500mm(WHD)	Transport Package:	Wooden Packaging
Specification:	99016801095mm	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	sintering high temperature box furnace , ceramic sintering high temperature box furnace , vertical ceramic sintering furnace

Ceramic Sintering Electric Medium-Temperature Clean Chamber Furnace MBF100-10

Product Specifications

Attribute	Value
Model NO.	MBF100-10
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air/O2
Effective Chamber Dimensions	450450500mm (WHD)
Transport Package	Wooden Packaging
Specification	99016801095mm
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Equipment Name and Model

MBF100-10 Medium-temperature Clean Chamber Furnace

Application Fields

Primarily designed for high-temperature heat treatment processes of electronic devices, electronic ceramics, and similar products.

Technical Specifications

Rated Temperature: 900ºC
Maximum Temperature: 1000ºC
Inner Liner Material: Fused Quartz
Effective Size: 450×450×500mm (Width×Height×Depth)
Heating Rate: ≤10ºC/min
Heating Element: FEC Ceramic Fiber Heating Plate (four-side heating)
Temperature Control Stability: ±1ºC with PID parameter self-tuning
Temperature Uniformity: ±5ºC (tested at 900ºC)
Thermocouple Type: K Graduation
Control Points/Segments: 1 point / 9 segments
Exhaust System: Adjustable exhaust port
Air Intake: Controlled flow (10-100LPM) for clean air/oxygen
Safety Features: Over-temperature and thermocouple breakage alarms with power-off protection
Power Requirements: 16kW max heating power, ≤8kW typical
Surface Temperature: <35ºC rise
Equipment Weight: Approximately 450Kg
Dimensions: 990×1680×1095mm (Width×Height×Depth)

Figure 1: Schematic Diagram of the Equipment

Delivery List

Item	Note	QTY
Basic Compositions	Furnace	1 unit
Certificates of Inspection	Furnace and major components	1 Set
Technical Documents	Specifications and technical documents	1 Set
Touch screen		1 PC
Temperature Controller		1 Set
FEC Heater		1 Set
Quartz Liner		1 Set
SSR (Spare)		1 PC

Facility Requirements

Environment: 0-40ºC, ≤80% RH, no corrosive gas or strong airflow
Gas Source: Clean, dry, oil-free compressed air/oxygen (0.2-0.4 MPa)
Ventilation: Extraction capacity >10 m³/h
Ground: Level surface with >500Kg/m² capacity
Power: >22kVA, 3-phase 5-wire (220/380V, 50Hz)
Space: Minimum 2000×2000×3000mm (W×H×D)
