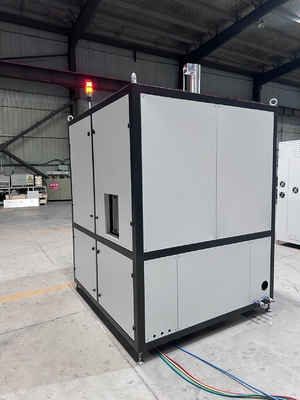

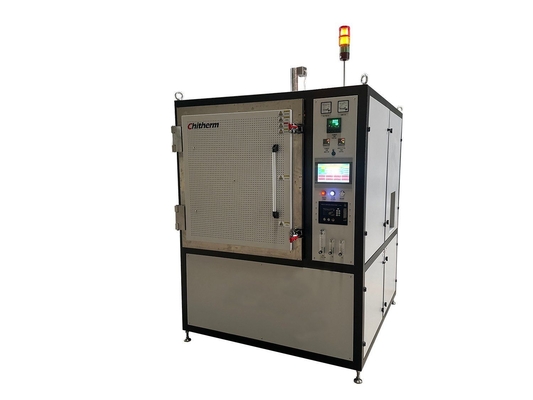

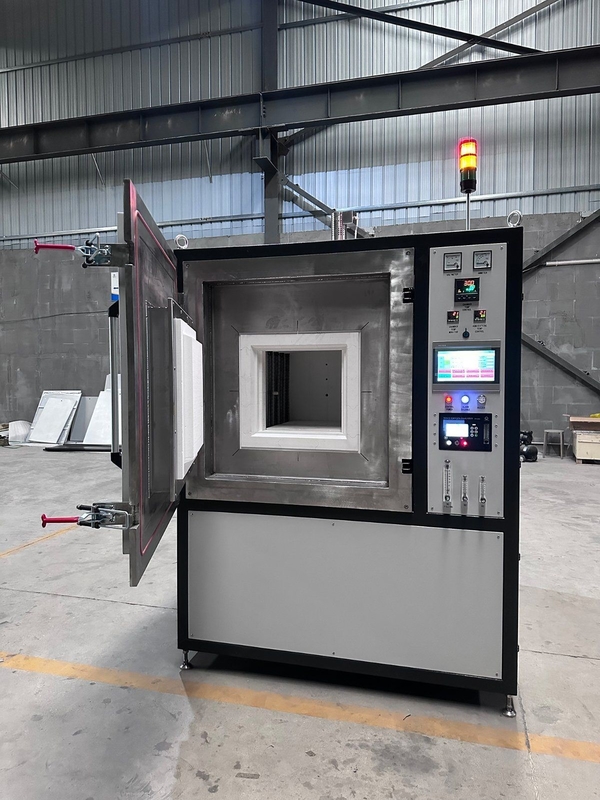

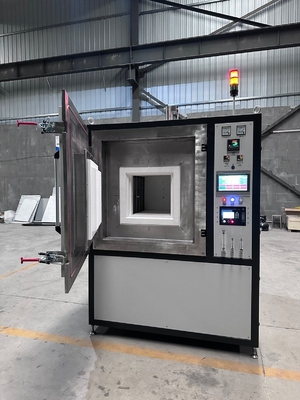

1700 Ordm C Electric Atmosphere High Temperature Box Furnace Heat Treatment 1600kg

Large Image : 1700 Ordm C Electric Atmosphere High Temperature Box Furnace Heat Treatment 1600kg

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF80-17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

1700 Ordm C Electric Atmosphere High Temperature Box Furnace Heat Treatment 1600kg

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Sintering	Fuel:	Electric
Effective Chamber Dimensions:	400400500mm(WHD)	Atmosphere:	Nitrogen/Hydrogen
Transport Package:	Wooden Package	Specification:	157020501830mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	1700 Ordm High Temperature Box Furnace , 1600kg High Temperature Box Furnace , 1700 Ordm heat treatment electric furnace

1700 ordm C Hbf80-17nh Type Temperature Atmosphere Box Furnace with Effective Chamber Dimensions 400*400*500mm W*H*D

1. Applications:

It is used for high-temperature sintering of HTCC packaging shells in a nitrogen + wet hydrogen atmosphere, and can also be applied for high-temperature sintering of zirconia, alumina, oxygen sensors, and ITO targets in an air atmosphere.

2. Mainly Specifics:

Rated Temp.: 1600ºC
Max Temp.: 1700ºC

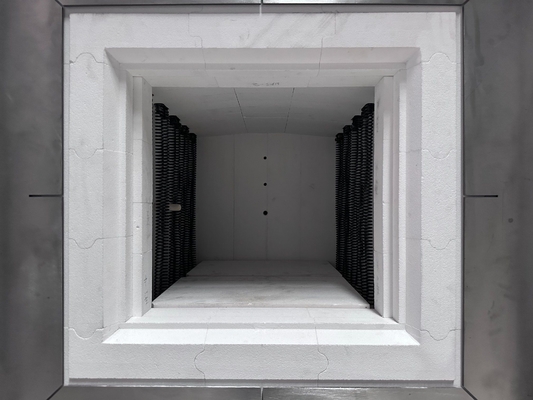

Effective Dimensions: 400 × 400 × 500mm(W×H×D)

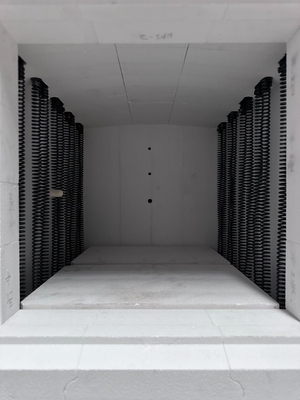

Heating Method: U-shaped molybdenum coil
Process Atmosphere: nitrogen/hydrogen (optional humidification function)
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (1600ºC insulation 2 small time and space furnace test)
Thermocouple: B Type
Temperature control points: 1
Number of Temp. Profiles: 19×19 (the temperature controller can save 19 profiles, each profile can be set 19 steps)
Exhaust: One exhaust port with ignition device
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
Max Heating Power: 25kW
Insulation Power: ≤15kW
Heating Rate: RT - 1000ºC ≤ 5ºC/min, 1000 - 1600ºC ≤ 2ºC/min
Surface Temperature Rise: < 35ºC
Weight: about 1600kg

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	Molybdenum Coil	1 Set
	Thermocouple	Watlow, THERMOWAY, B Type	1 PC
	Temperature Controller	CHINO	1 Set
	Monitor	Proface 10" touch screen	1 Set
	Vacuum Pump	VALUE, 100m³/h	1 Set
	Oxygen Analyzer	CHANG'AI	1 Set
	Mass Flowmeter	HORIBA	2 Sets
	Flow Indicator	HORIBA	2 Sets
	Dew Point Probe	VAISALA	1 Set
Spares	Heating Elements	Molybdenum Coil	1 PC

5. Facility Requirements
5.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
5.2 Process air conditions: nitrogen, purity 99.999%, air source pressure 0.2 - 0.4Mpa, gas
consumption 3 - 6m³ /h; Hydrogen, purity 99.99%, gas source pressure not less than 0.1Mpa, gas consumption is 0.6 - 6m³ /h;
5.3 Power air source conditions: clean, dry, oil-free compressed air, pressure 0.4 - 0.8Mpa;
5.4 Water Inlet condition: 0.1 - 0.3Mpa, clean, no corrosion, supply flow 2 - 5L/min;
5.5 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m³ /h;
5.6 Power conditions: capacity greater than 35kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
5.7 Installation site: 2500mm×3000mm×2500mm (W×H×D), installation area greater than 7m2.

Melting Furnace 1700º C Hbf80-17nh Type High-Temperature Atmosphere Box Furnace
