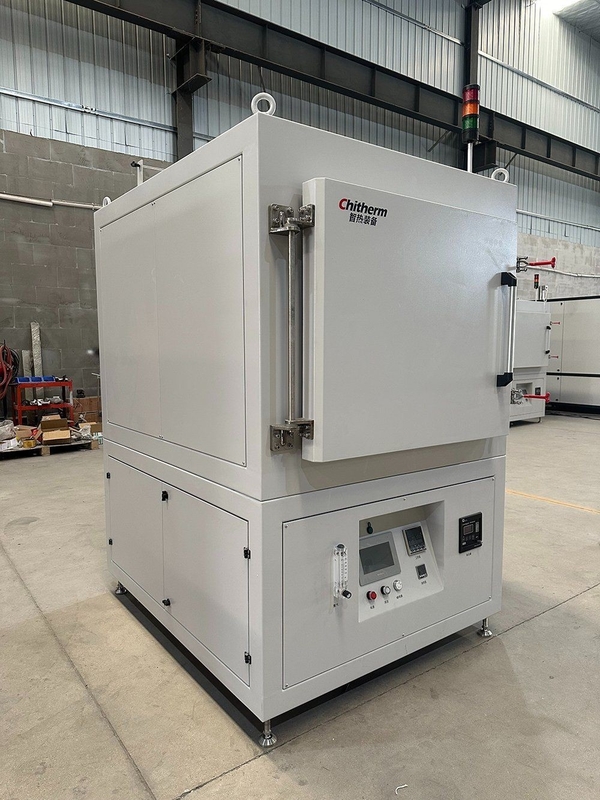

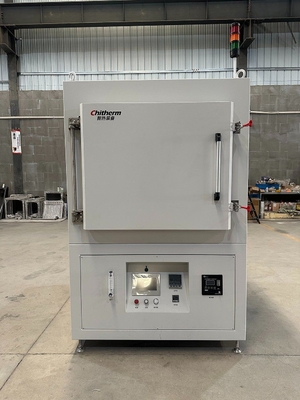

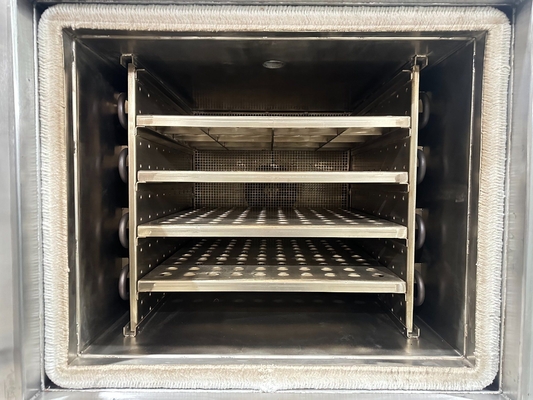

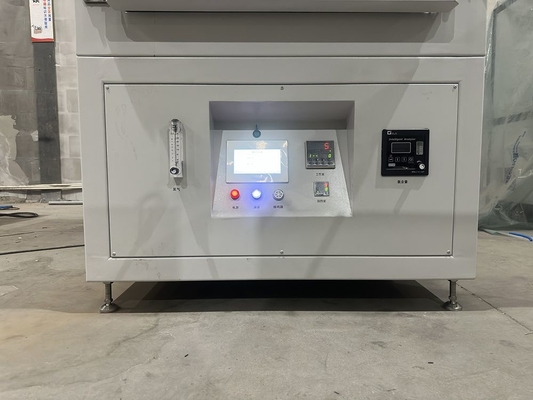

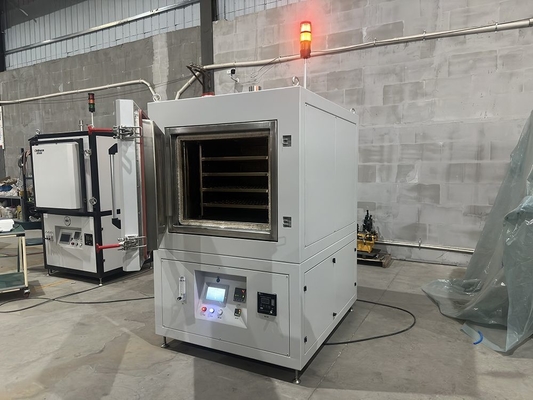

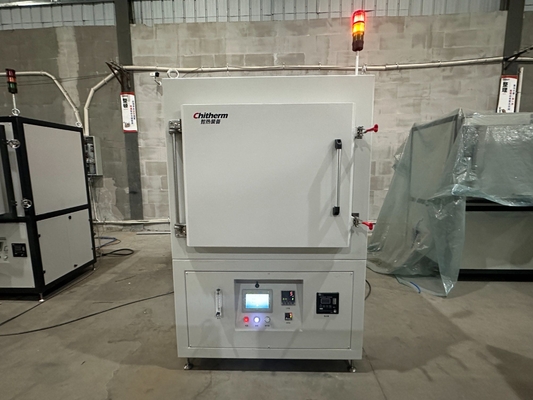

18kW Nitrogen Reducing Atmosphere Furnace Ceramic Drying Oven Heat Treatment Gas Furnace

Effective Dimensions 600*600*600mm W*H*D Nitrogen Atmosphere Ceramic Drying Oven for High Temperature Drying Hrf216-05n

Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.

2. Mainly Specifics:

1. Rated Temp.: 350ºC
2. Max Temp.: 500ºC
3. Effective Dimensions: 600 × 600 × 600mm(W×H×D)
4. Heating Method: Stainless Steel Heater
5. Process Atmosphere: Nitrogen
6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
7. Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
8. Thermocouple: Type K
9. Temperature control points: 1
10. Temperature measurement points: 1 point
11. Process Steps: 4 × 10 steps
12. Exhaust: One exhaust port on top
13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
14. Max Heating Power: 18kW
15. Insulation Power: ≤ 12kW
16. Surface Temperature Rise: ≤ 35ºC
17. Weight: about 900kg
18. Furnace Dimensions: about 1350×1750×21950mm (W×H×D);
19. Appearance Color: light gray

3. Delivery List
	Item	Note	QTY
Basic Compositions	Dryer		1 PC
	Certificates of Inspection	Dryer and major purchased components	1 Set
	Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	Stainless Steel Heater	1 Set
	Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
	Temperature Controller		1 Set
	Monitor	Touch screen	1 Set
Spares	SSR		1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 10m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m² .
4.5 Power conditions: capacity greater than 24kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W*H*D), installation area greater than 6m².
