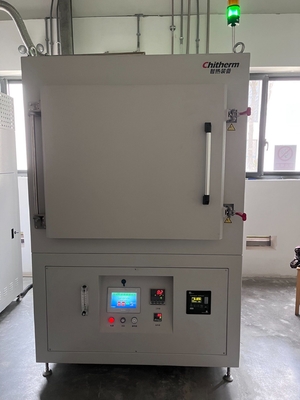

High Temperature Ceramic Drying Furnace Hrf216-07n Max Temp. 700 ordm for Industrial Production

Large Image : High Temperature Ceramic Drying Furnace Hrf216-07n Max Temp. 700 ordm for Industrial Production

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF216-07N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

High Temperature Ceramic Drying Furnace Hrf216-07n Max Temp. 700 ordm for Industrial Production

Description

Model NO.:	HRF216-07N	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Drying
Heating Element:	Stainless Steel Heater	Effective Chamber Dimensions:	600600600mm(WHD)
Rated Temp.:	650ºC	Max Temp.:	700ºC
Transport Package:	Wooden Packaging	Specification:	130017101800mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	industrial ceramic sintering furnace , industrial high temperature box furnace , vertical ceramic sintering furnace

High Temperature Ceramic Drying Furnace HRF216-07N Max Temp. 700°C for Industrial Production

Product Specifications

Attribute	Value
Model NO.	HRF216-07N
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Drying
Heating Element	Stainless Steel Heater
Effective Chamber Dimensions	600600600mm (WHD)
Rated Temp.	650°C
Max Temp.	700°C
Transport Package	Wooden Packaging
Specification	130017101800mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Technical Specifications

Key Technical Indicators

Rated Temperature: 650°C
Maximum Temperature: 700°C
Effective Size: 600×600×600mm (W×H×D)
Furnace Chamber Material: SUS310S
Temperature Control Stability: ±1°C
Platform Temperature Uniformity: ±5°C
Heating Power: 24kW
Total Weight: Approximately 1000kg

Advanced Control System

Features an imported Japanese Intelligent Temperature Controller with 4×16 segments control, K-type thermocouple, and real-time oxygen content monitoring with micro-oxygen analyzer (optimal oxygen content: 10ppm).

Safety Features

Audible and visual alarm protection for over-temperature and broken thermocouple
Over-current protection for the fan
Surface temperature rise ≤35°C

System Components

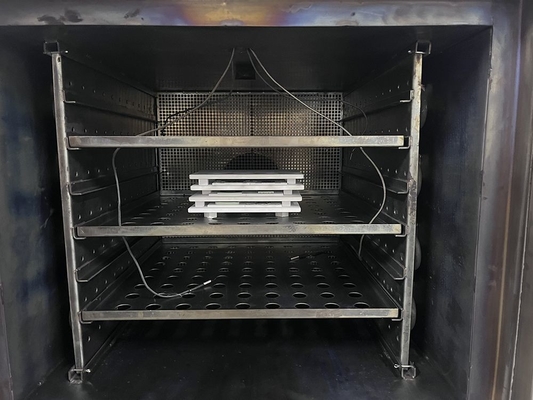

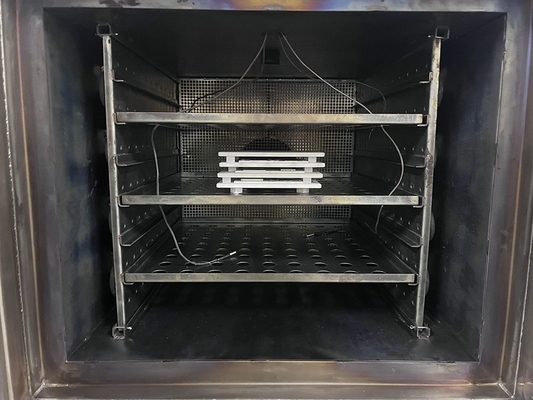

The furnace consists of frame structure, furnace chamber, furnace door, hot air circulation system, atmosphere system, water cooling system, and temperature control system.

Delivery Contents

Name	Main Content	Quantity
Basic Composition	Main Kiln Furnace Unit	1 set
Key Components	Stainless Steel Heater (SUS310S)	1 set
Temperature Controller	Imported from Japan	1 set
Circulating Fan	Fully Water-cooled Sealed Fan	1 set
Spare Parts	Solid State Relay	1 piece

Installation & Operating Requirements

Environmental Conditions

Temperature: 0~40°C
Humidity: ≤80%RH
No corrosive gases or strong air flow disturbance

Utility Requirements

Gas Source: High-purity nitrogen (99.999%), 0.2~0.4Mpa, 3~7m³/h
Water Source: Clean, ≤23°C, 0.2~0.4Mpa, 2~6L/min
Power: >32KVA, 220/380V, 50Hz, three-phase five-wire
Ventilation: Extraction capacity >10m³/h

Space Requirements

Installation area: 2000×3000×3000mm (W×D×H), floor load capacity >300kg/m², level surface with minimal vibration.
