Vertical Degumming Nitrogen Atmosphere Furnace Heat Treatment OEM

Large Image : Vertical Degumming Nitrogen Atmosphere Furnace Heat Treatment OEM

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF216-07N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Vertical Degumming Nitrogen Atmosphere Furnace Heat Treatment OEM

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Heating Element:	Stainless Steel Heater
Effective Chamber Dimensions:	600600600mm(WHD)	Rated Temp.:	650ºC
Max Temp.:	700ºC	Transport Package:	Wooden Packaging
Specification:	130017101800mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Degumming nitrogen atmosphere furnace , OEM nitrogen atmosphere furnace , Nitrogen heat treatment furnace

High Temperature Uniformity on The Platform Chitherm Hrf216-07n Vertical Degumming Furnace with Effective Chamber Dimensions

1. Equipment Name and Model:
HRF216-07N Degumming Furnace

2. Technical Indicators and Basic Configuration
2.1 Rated Temperature: 650ºC;
2.2 Maximum Temperature: 700ºC;

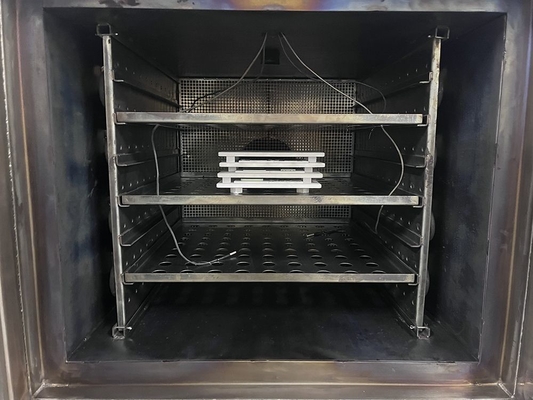

2.3 Effective Size: 600×600×600mm (Width × Height × Depth);
2.4 Material Bearing Method: Stainless Steel Material Tray;
2.5 Furnace Chamber Material: SUS310S;
2.6 Heating Element: Stainless Steel Heater;
2.7 Temperature Control Stability: ±1ºC;
2.8 Platform Temperature Uniformity: ±5ºC (For the platform at 300~600ºC, tested in an empty furnace at a constant temperature for 1 hour);
2.9 Thermocouple Type: K Graduation;

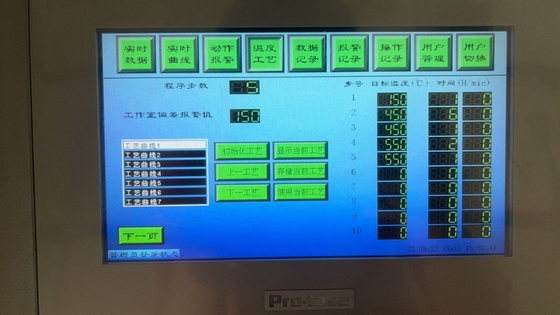

2.10 Temperature Control Instrument: Imported Japanese Intelligent Temperature Controller;
2.11 Number of Temperature Control Segments: 4×16 segments;
2.12 Number of Temperature Control Points: 1 point, controlling the temperature of the working chamber;
2.13 Number of Detection Points: 1 point, monitoring the temperature of the heating chamber;
2.14 Exhaust Chimney: 1 piece, and the size of the exhaust port can be adjusted manually;
2.15 Oxygen Content Detection: Equipped with a micro-oxygen analyzer, which can monitor the oxygen content in the furnace chamber in real time;
2.16 Oxygen Content: The optimal oxygen content can reach 10ppm plus the oxygen content of the gas source;
2.17 Alarm Protection: Audible and visual alarm protection for over-temperature, broken thermocouple, etc.;
2.18 Motor Protection: Over-current protection for the fan;
2.19 Surface Temperature Rise: ≤35ºC;
2.20 Maximum Heating Rate: 5ºC/min;
2.21 Heating Power: 24kW;
2.22 Insulation Power of the Empty Furnace: ≤12kW;
2.23 Equipment Color: Light Gray;
2.24 Total Weight of the Equipment: Approximately 1000kg;
2.25 Reference Dimensions of the External Shape: 1300mm×1710mm×1800mm (Width × Depth × Height, excluding the chimney).

3. Overall Technical Description

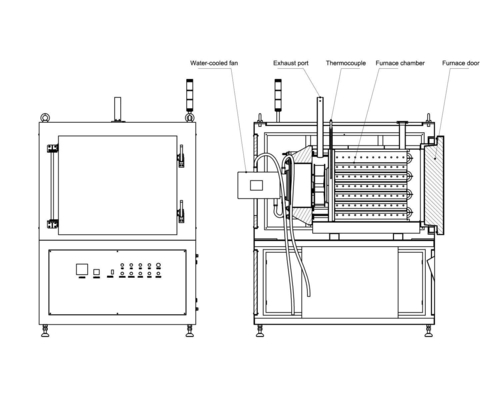

The entire oven is mainly composed of the frame structure, the furnace chamber, the furnace door, the hot air circulation system, the atmosphere system, the water cooling system, and the temperature control system.
Chitherm Hrf216-07n Degumming Furnace, High Temperature Uniformity on The Platform

4. Equipment Handover List
Table 1 Delivery Schedule

Name	Main Content	Quantity
Basic Composition	Main Kiln Furnace Unit		1 set
	Inspection Certificate of Conformity	Certificates of Conformity for Each Main Outsourced Component	1 set
	Technical Documents	Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc.	1 set
Key Components	Stainless Steel Heater	SUS310S	1 set
	Temperature Controller	Imported from Japan	1 set
	Circulating Fan	Fully Water-cooled Sealed Fan	1 set
Spare Parts	Solid State Relay		1 piece
Spare Parts	Stainless Steel Heater		1 piece
