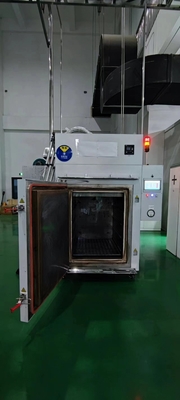

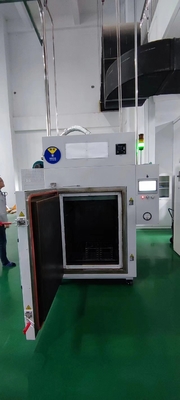

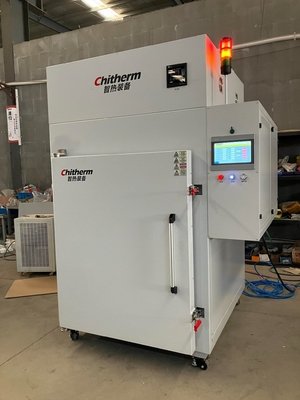

Hot Air Debinding Electrical High Temperature Box Furnace Drying Oven 550 Ordm C

Application Field:
Widely used for debinding processes of ceramic substrates and related materials.

Specifications
Model: HRF800-06NO
Rated Temperature: 550ºC
Effective Chamber Size: 800×1000×1000mm (W×H×D)
Heating Element: Custom squirrel-cage heater with built-in imported heating wire
Chamber Temperature Uniformity: ±3ºC (tested at 550ºC for 1 hour in an empty furnace)
Temperature Measurement Points: 1
Temperature Control Points: 1
Monitoring Points: 5

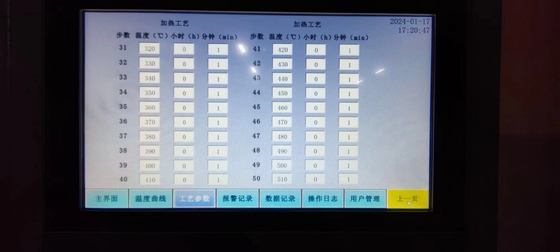

Temperature Control Segments: Can store 20 control programs, with 40 steps per program
Exhaust Port: DN50, equipped with an exhaust regulating valve for manual adjustment of valve opening

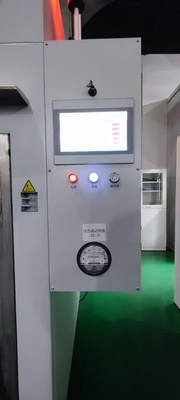

Temperature Control Instrument: Yamatake NXD15 temperature controller
Maximum Heating Power: Approximately 24kW
Typical Idle Furnace Insulation Power: ≤5kW
Operating Power Supply: 380±5%V, 3-phase 5-wire, 50Hz, 50A
Surface Temperature Rise: ≤30ºC
Equipment Weight: Approximately 1100kg
External Dimensions: 1630×2365×1380mm (W×H×D)

Equipment Delivery Checklist

Equipment Operating Conditions
 Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, non-corrosive gases, no strong airflow disturbance.
Gas Source Requirements: Clean, dry, oil-free compressed air or high-purity nitrogen gas (purity 99.999%), inlet pressure 0.2-0.4 MPa, gas consumption 10-30 m³/h.
Exhaust System: Non-contact interface with user exhaust system, exhaust capacity >30 m³/h.
Floor Requirements: Level, free from significant vibrations, load-bearing capacity >600 kg/m².
 Power Supply: Capacity >40 kVA, 3-phase 5-wire system (voltage 220/380V, frequency 50Hz). Phase lines: Yellow, Green, Red; Neutral line: Blue; Ground line: Yellow-Green.
 Installation Space: 2000mm×2600mm×3000mm (W×D×H), installation area exceeding 6 m².
