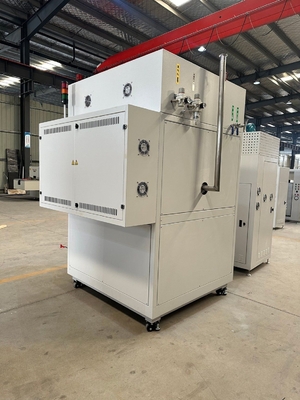

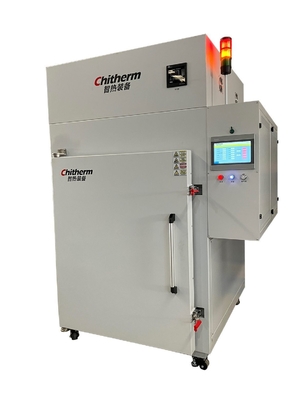

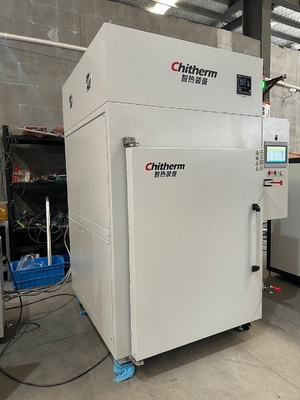

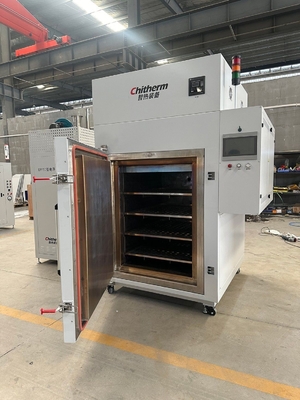

Hot Air Debinding Industrial Box Furnace Vacuum Atmosphere Furnace For Drying Curing

Large Image : Hot Air Debinding Industrial Box Furnace Vacuum Atmosphere Furnace For Drying Curing

Product Details:

Place of Origin:	China
Brand Name:	Chitherm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Hot Air Debinding Industrial Box Furnace Vacuum Atmosphere Furnace For Drying Curing

Description

Model NO.:	Hrf800-06NO	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Drying
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	80010001000mm(WHD)	Transport Package:	Wooden Packaging
Specification:	150016301350mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Vacuum industrial box furnace , Atmosphere industrial box furnace , Debinding vacuum atmosphere furnace

Hot Air Debinding Industrial Box Furnace Vacuum Atmosphere Furnace For Drying Curing

Product Overview

The HRF800-06NO hot air debinding furnace is designed for the debinding process of materials, utilizing hot air circulation to efficiently remove binders and ensure uniform treatment. It is widely used in industries such as ceramics, powder metallurgy, and advanced materials manufacturing.

With precise temperature control, reliable performance, and user-friendly operation, this furnace is an essential tool for achieving high-quality debinding results in various production and research applications.

Technical Specifications

Model: HRF800-06NO

Rated Temperature: 550ºC

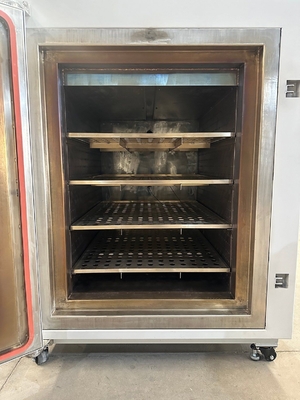

Effective Chamber Size: 800×1000×1000mm (W×H×D)

Heating Element: Custom squirrel-cage heater with built-in imported heating wire

Chamber Temperature Uniformity: ±3ºC

Temperature Control Instrument: Yamatake NXD15 temperature controller

Maximum Heating Power: Approximately 24kW

Operating Power Supply: 380±5%V, 3-phase 5-wire, 50Hz, 50A

Equipment Weight: Approximately 1100kg

External Dimensions: 1630×2365×1380mm (W×H×D)

Key Features

Precision temperature control with ±3ºC uniformity
Advanced Yamatake NXD15 temperature controller
Custom squirrel-cage heater design for efficient heat distribution
Multiple temperature monitoring points (5 thermocouples)
Programmable control with 20 program storage capacity
Optimized for debinding processes in ceramics and powder metallurgy
Robust construction with 1100kg weight for stability

Delivery Contents

Category	Component	Details	Quantity
Basic Components	Furnace Main Unit		1 set
	Electric Purification Furnace	Max. capacity 50m³	1 set
	Inspection Certificate	Certificates of major purchased components	1 set
	Technical Documentation	Manuals, technical files	1 set
Critical Components	Heater	Squirrel-Cage Type	1 set
	Control Thermocouple	Type K	1 pc
	Measurement Thermocouple	Type K	1 pc
	Monitoring Thermocouples	Type K	5 pcs
	Temperature Control Module	Japan-sourced	1 set
	PLC	Siemens	1 set
	UPS	1kVA	1 set

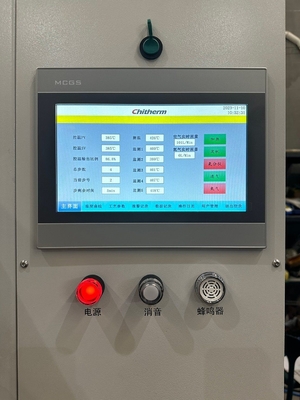

	Touch Screen	10-inch	1 set
	Oxygen Analyzer	CI-PC96	1 set
	Circulation Fan	Max. airflow 5000m³/h	1 set
	Chiller Unit	0.5m³/h	1 set
	Spare Parts (Heater, Solid State Relay)		1 pc each

Operating Conditions

Indoor installation required with ambient temperature range of -10ºC to 45ºC
Environment must be free of flammable gases, corrosive gases, and steam
Minimum floor area of 4 square meters with 2.5m ceiling height
Solid, level foundation required (equipment weight: 1100kg)
Dedicated three-phase five-wire AC power: 380±10%V, 50±2%Hz
No large power conversion equipment on same distribution line
Reliable grounding essential

Product Attributes

Attribute	Value
Model NO.	Hrf800-06NO
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Drying
Fuel	Electric
Atmosphere	Nitrogen
Effective Chamber Dimensions	80010001000mm(WHD)
Transport Package	Wooden Packaging
Specification	150016301350mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical
