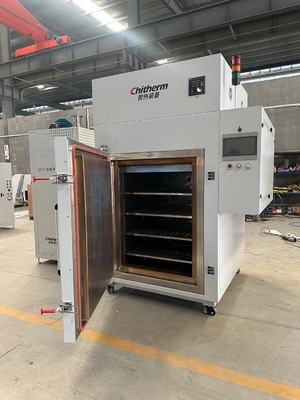

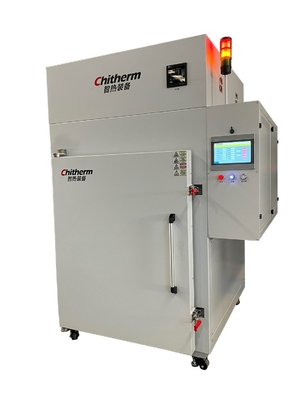

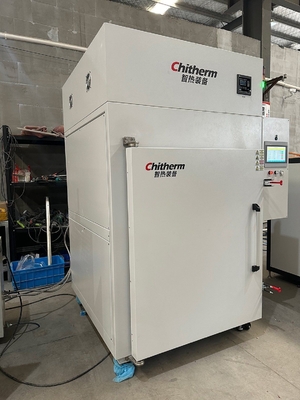

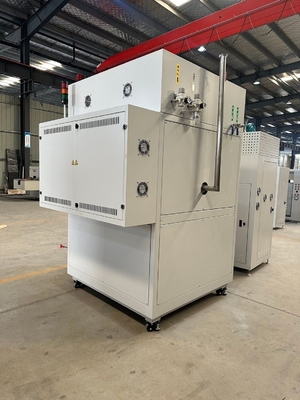

Vertical Industrial Electric Furnace 550 ordm C Hrf800-06no Hot Air Debinding Furnace for High Temperature Applications

The HRF800-06NO hot air debinding furnace is designed for the debinding process of materials, utilizing hot air circulation to efficiently remove binders and ensure uniform treatment. It is widely used in industries such as ceramics, powder metallurgy, and advanced materials manufacturing. With precise temperature control, reliable performance, and user-friendly operation, this furnace is an essential tool for achieving high-quality debinding results in various production and research applications.

Performance Parameters

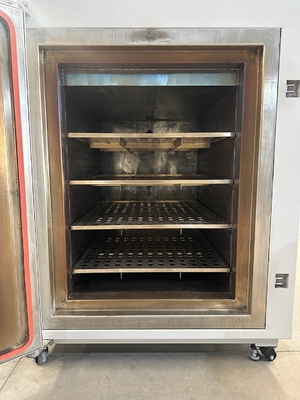

1. Effective Chamber Size: 800×1000×1000mm (W×H×D)
2. Long-Term Operating Temperature: 550ºC
3. Temperature Control Points: 1
4. Furnace Temperature Uniformity: ±3ºC (tested at 550ºC for 1 hour in an empty furnace)
5. Temperature Control Method: Uses imported temperature controller with PID parameter auto-tuning
6. Heating Element: Stainless steel heater

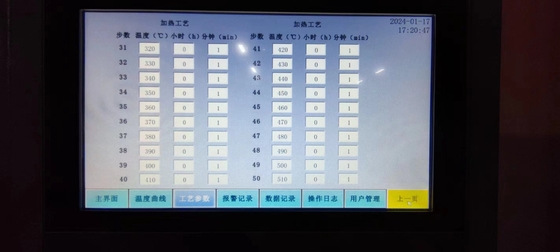

7. Temperature Control Segments: Can store 20 programs, with 40 steps per program
8. Alarm and Protection: Audible and visual alarms and protection for over-temperature, thermocouple break, and fan overload
9. Power Supply: 380VAC, 3-phase 5-wire, 32kVA
10. External Dimensions: 1630×2360×1380mm (W×H×D)

Equipment Delivery Checklist

1. The equipment must be installed indoors, with an ambient temperature range of -10ºC to 45ºC. The indoor environment must be free of flammable gases, corrosive gases, and steam.
2. The equipment requires a floor area of at least 4 square meters, with a working space length of at least 2 meters, width of at least 2 meters, and height of at least 2.5 meters. The foundation must be solid and level, and the furnace weighs approximately 1100kg.
3. The power supply for the furnace must be a dedicated three-phase five-wire AC power line, 380±10%V, 50±2%Hz. Large power conversion equipment such as welding machines, electric furnaces, and metal cutting machines should not be connected to this distribution line.
4. The equipment must be reliably grounded.
