2100mm Quartz High Temperature Tube Furnace Horizontal Phi 150 Times

Large Image : 2100mm Quartz High Temperature Tube Furnace Horizontal Phi 150 Times

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	htf1540-0311nh

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

2100mm Quartz High Temperature Tube Furnace Horizontal Phi 150 Times

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	High Temperature Sintering	Fuel:	Electric
Tube Material:	Quarz	Atmosphere:	Vacuum
Furnace Tube Dimensions:	Φ150 Mm (ID) × 2100 Mm	Transport Package:	Wooden Packaging
Specification:	88013702500mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	2100mm high temperature tube furnace , Quartz high temperature tube furnace , 2100mm horizontal tube furnace

2100mm Quartz High Temperature Tube Furnace Horizontal Φ150 Times

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	High Temperature Sintering
Fuel	Electric
Tube Material	Quartz
Atmosphere	Vacuum
Furnace Tube Dimensions	Φ150 mm (ID) × 2100 mm
Transport Package	Wooden Packaging
Specification	88013702500mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Overview

The HTF1540-0311NH Tube Furnace with Φ150×2100mm quartz tube is designed for high-temperature sintering and heat treatment processes, offering customizable solutions for industrial applications.

Typical Applications

High-temperature sintering and heat treatment for glass insulators and ferrosilicon sheets
Sintering processes of metal-cased dielectric ceramics under binary atmospheres

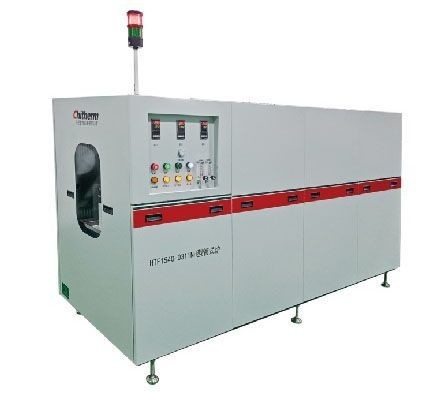

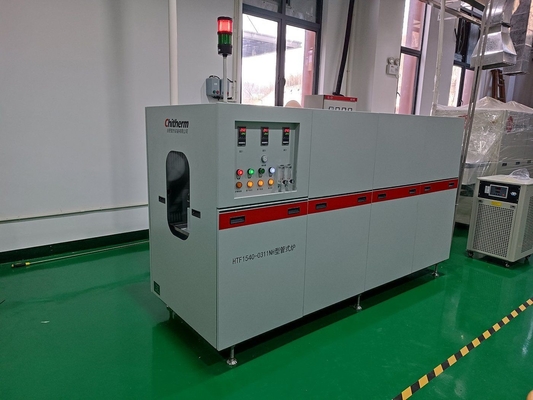

HTF1540-0311NH Tube Furnace with Φ150×2100mm quartz tube

Technical Parameters

Rated temperature: 1000ºC
Furnace tube dimensions: Φ150 × 2100 mm
Number of temperature zones: 3
Heating via FEC vacuum-formed ceramic fiber heaters with surrounding heating
Single-zone and multi-zone designs with independent temperature control
Flow Meter Range: Nitrogen 10-100LPM; Hydrogen 1-10LPM

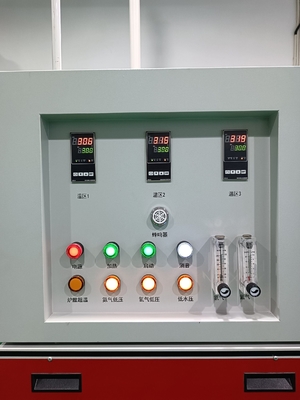

Alarm Protection: Audible & visual alarms for overtemperature, broken thermocouple, low pressure
Maximum Heating Power: 15kW
Idle Furnace Heat Preservation Power: ≤7.5kW
Surface Temperature Rise: ≤35ºC
Equipment Weight: Approx. 500Kg
Equipment Exterior Color: Light Gray
Dimensions: 880×1370×2500mm (W×H×D)

Delivery Checklist

Name	Main Contents	Quantity
Basic Components	Furnace Main Unit	1 unit
Inspection Certificates	Certificates for key purchased components	1 set
Technical Documents	User manual, technical documents	1 set
Key Components	FEC Heater	1 set

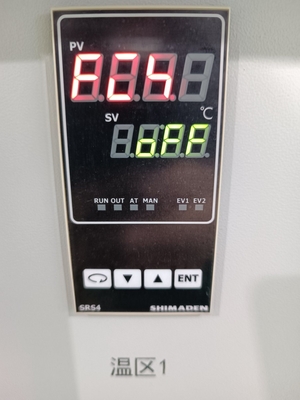

Temperature Controller	Shimaden SRS11	3 units
Quartz furnace tube	Φ150×2100mm	1 set
Spare Parts	Solid-State Relay (SSR)	1 piece
Heater		1 set
Graphite plate	100×100×6mm	3 pieces

Operating Conditions

Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, no corrosive gases, no strong airflow disturbance

Gas Supply Requirements: Nitrogen: 0.1-0.3 MPa, 99.999% high-purity nitrogen gas (3-6 m³/h); Hydrogen: 0.1-0.3 MPa (0.3-0.6 m³/h)

Water Supply Requirements: 0.1-0.3 MPa, flow rate 1-3 L/min

Ventilation System: Non-contact exhaust system, exhaust capacity >7 m³/h

Floor Requirements: Level, no significant vibration, load-bearing capacity >300 kg/m²

Power Supply: Capacity >20 kVA, 3-phase 5-wire, 220/380 V, 50 Hz

Installation Space: 3000×3000×4400 mm (W×H×D), installation area >9 m²
