500 Ordm C Vacuum Horizontal Tubular Furnace For Quartz Alumina Melting

Large Image : 500 Ordm C Vacuum Horizontal Tubular Furnace For Quartz Alumina Melting

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	VTF1050-05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

500 Ordm C Vacuum Horizontal Tubular Furnace For Quartz Alumina Melting

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Sintering	Fuel:	Electric
Tube Dimensions:	Φ100(Od)Φ94(ID)800mm	Tube Material:	Quarz
Atmosphere:	Vacuum	Transport Package:	Wooden Packaging
Specification:	4501100840mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	500 C horizontal tubular furnace , Alumina Melting horizontal tubular furnace , Quartz alumina tube furnace

500°C Vacuum Horizontal Tubular Furnace For Quartz Alumina Melting

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Sintering
Fuel	Electric
Tube Dimensions	Φ100(OD)Φ94(ID)800mm
Tube Material	Quartz
Atmosphere	Vacuum
Transport Package	Wooden Packaging
Specification	4501100840mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Customization 500°C VTF1050-05 Model Vacuum Vertical Tube Furnace for Melting Quartz Material 450*1100*840mm W*H*D

Typical Applications

High-temperature sintering and heat treatment processes for glass insulators and iron silicate sheets
Sintering processes for dielectric ceramics in metal casings under binary atmospheres

Technical Specifications

Rated Temperature: 450°C

Max. Temperature: 500°C

Tube Dimensions: φ100(OD)mm×φ94(ID)mm×800mm

Temp Zone Length: 500mm

Chamber Insulation Material: Aluminosilicate Ceramic Fiber

Heating Elements: Resistance Coils in Ceramic Fiber Block

Thermocouple: Type K

Temperature Control Point: 1 Point

Temperature Control Precision: ≤ ±1°C

Temperature Control Mode: Temperature controller imported from Japan with PID

Vacuum Level: 10Pa

Pump Speed: 100Pa in 2 min

Furnace Surface Temperature: ≤ RT+35°C

Alarms: Over temp, TC failure, low air pressure etc

Maximum Heating Power: 3kW

Insulation Power: 1.5kW

Furnace Dimensions: 450×1100×840mm(W×H×D)

Weight: about 120kg

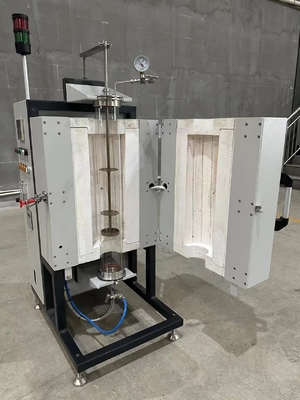

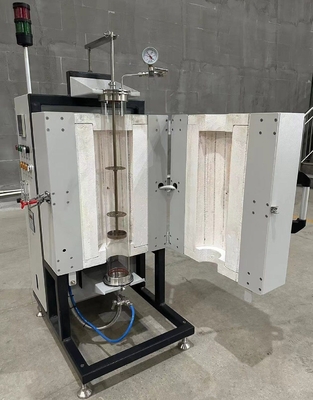

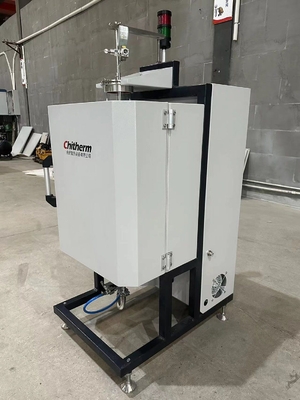

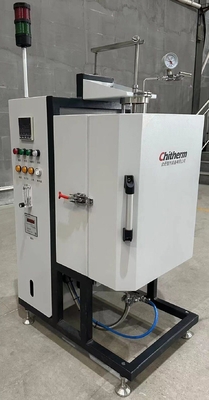

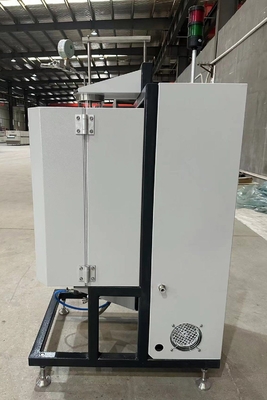

500°C VTF1050-05 Model Vacuum Vertical Tube Furnace for quartz material melting

Delivery Checklist

Name	Main Contents	Quantity
Basic Components	Furnace Main Unit	1 unit
Inspection Certificates	Certificates for key purchased components	1 set
Technical Documents	User manual, technical documents for key purchased components	1 set
Key Components	FEC Heater	1 set
Temperature Controller		1 set
Vacuum Gauge + Pirani Gauge		1 set
Vacuum Pump		1 set
Spare Parts	Solid-State Relay (SSR)	1 piece

Operating Conditions

Environmental Conditions: Temperature 0-40°C, Humidity ≤80% RH, no corrosive gases, no strong airflow disturbance

Gas Supply Requirements: 0.1-0.3 MPa, consumption approx. 0.6 m³/h

Floor Requirements: Level, no significant vibration, load-bearing capacity >300 kg/m²

Power Supply: Capacity >4kVA, 3-phase 5-wire, voltage 220/380 V, frequency 50 Hz

Installation Space: 1000×2000×1000 mm (W×H×D), installation area >1 m²

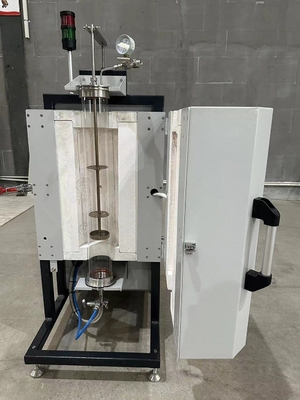

500°C VTF1050-05 Model Vacuum Vertical Tube Furnace installation and operation
