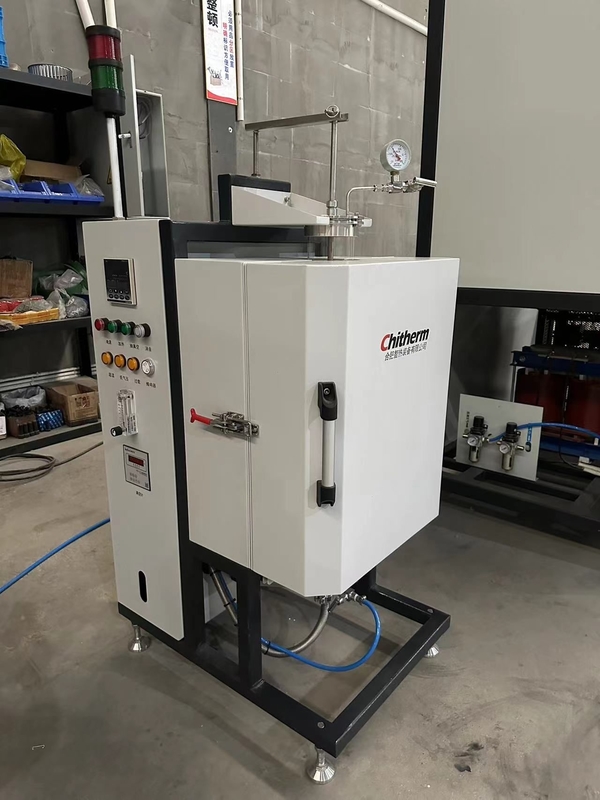

Vacuum Vertical High Temperature Tubular Furnace For Lab 3kW

Large Image : Vacuum Vertical High Temperature Tubular Furnace For Lab 3kW

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	VTF1050-05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Vacuum Vertical High Temperature Tubular Furnace For Lab 3kW

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Fuel:	Electric	Tube Dimensions:	Φ100(Od)Φ94(ID)800mm
Tube Material:	Quarz	Atmosphere:	Vacuum
Transport Package:	Wooden Packaging	Specification:	4501100840mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Vacuum high temperature tubular furnace , 3kW high temperature tubular furnace , 3kW lab tube furnace

Vacuum Vertical High Temperature Tubular Furnace For Lab 3kW

Product Attributes

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Fuel	Electric
Tube Dimensions	Φ100(OD)Φ94(ID)800mm
Tube Material	Quarz
Atmosphere	Vacuum
Transport Package	Wooden Packaging
Specification	4501100840mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Customization Electric Holding Furnace Vtf1050-05 Vacuum Vertical Tube Furnace for Performance

Hefei CHITHERM Equipment Co., Ltd. is an advanced equipment supplier specializing in the R&D, design, manufacturing, sales, maintenance and service of industrial heat treatment furnaces and experimental furnaces.

Our products include Bell Furnace, Hot Air Dryer, Box Furnace, Tube Furnace, Vacuum Furnace, Trolley Furnace, Rotary Furnace, Mesh Belt Furnace, Push Plate Furnace, etc., which are widely used in advanced ceramics, electronic components, thick film circuit, additive manufacturing, powder metallurgy, new energy, photovoltaic and other fields.

It is suitable for the heat treatment process of ITO target, MLCC / HTCC / LTCC, ceramic filter, magnetic material, CIM / MIM, positive and negative electrode of lithium battery, as well as pre firing, glue discharging, degreasing, firing, drying, heat treatment, curing, ceramic metallization and other processes of various new materials.

Technical Specifications

Rated Temperature: 450ºC
Max. Temperature: 500ºC
Tube Dimensions: φ100(OD)mm×φ94(ID)mm×800mm
Temp Zone Length: 500mm
Chamber Insulation Material: Aluminosilicate Ceramic Fiber
Heating Elements: Resistance Coils in Ceramic Fiber Block
Thermcouple: Type K
Temperature Control Point: 1 Point
Temperature Control Precision≤ ±1ºC
Temperature Control Mode: Temperature controller imported from Japan with PID
Vacuum Level: 10Pa
Pump Speed: 100Pa in 2 min
Furnace Surface Temperature ≤ RT+35ºC
Alarms: Over temp, TC failure, low air pressure etc
Total Power: 3kW
Insulation Power: 1.5kW
Furnace Dimensions: 450×1100×840mm(W×H×D)
Weight: about 120kg
